IIONIfDA
V45
INTERCEPTOR,
TRANSMISSION

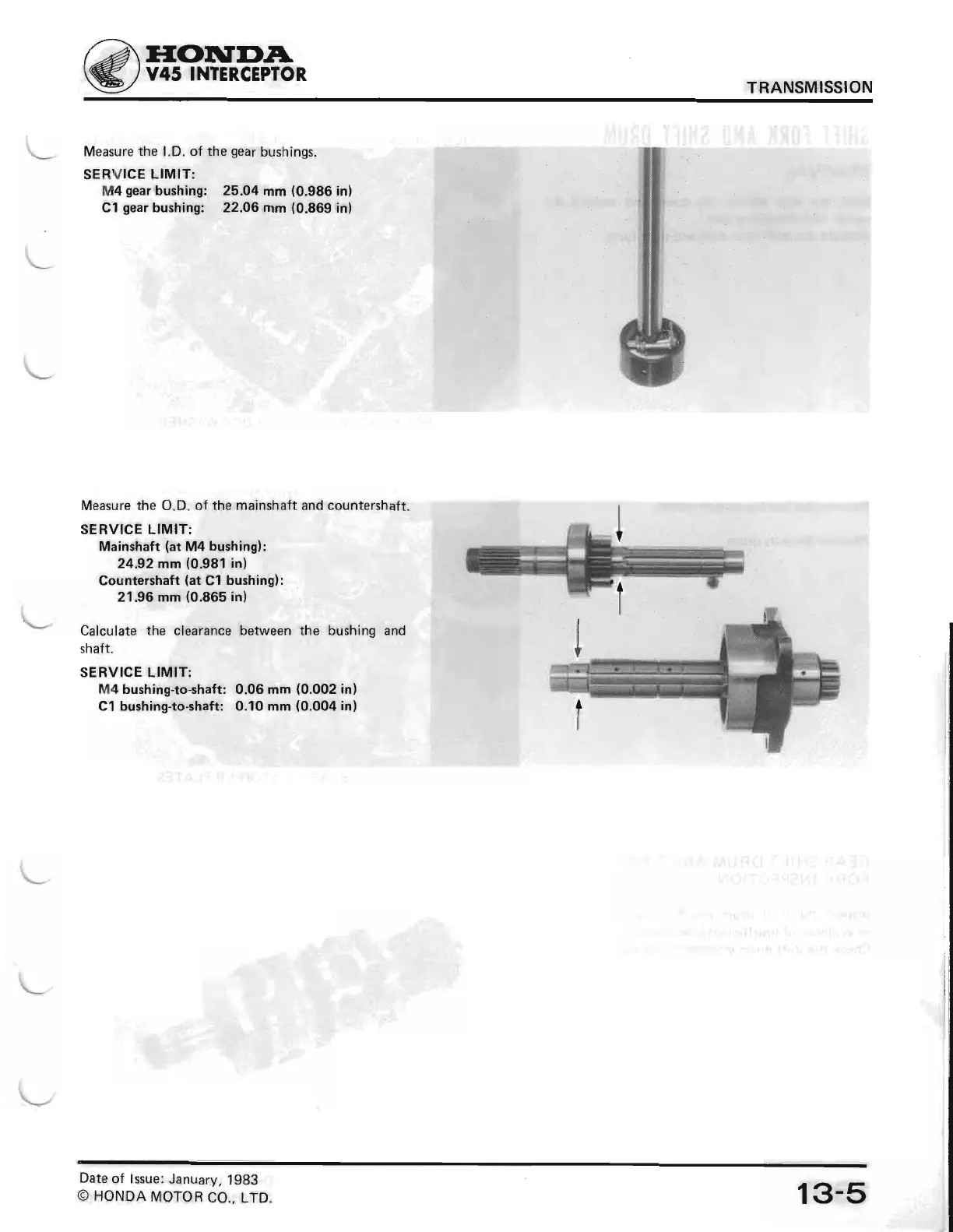

Measure
the
l.D.
of the
gear
bushings.
SERVICE
LIMIT:
M4
gear
bushing:
Cl
gear
bushing:
25.04 mm
(0.986
in)
22.OOmm
(0.869
in)
;'':rd
Measure the O.D.
of the mainshaft and countershaft.
SERVICE
LIMIT:
Mainshaft
(at
M4
bushing):
2492mm
(0.981
inl
Countershaft
(at
C1
bushingl:
21.96 mm
(0.865
inl
Calculate
the
clearance
between the bushing and
shaft.
SERVICE
LIMIT:
M4 bushing-to*haft: 0.06 mm
(0.002
in)
C1
bushing-toshaft: 0.10 mm
(0.004
in)
13-5
Date
of
lssue:
January,
1983
O HONDA
MOTOR
CO.,
LTD.
