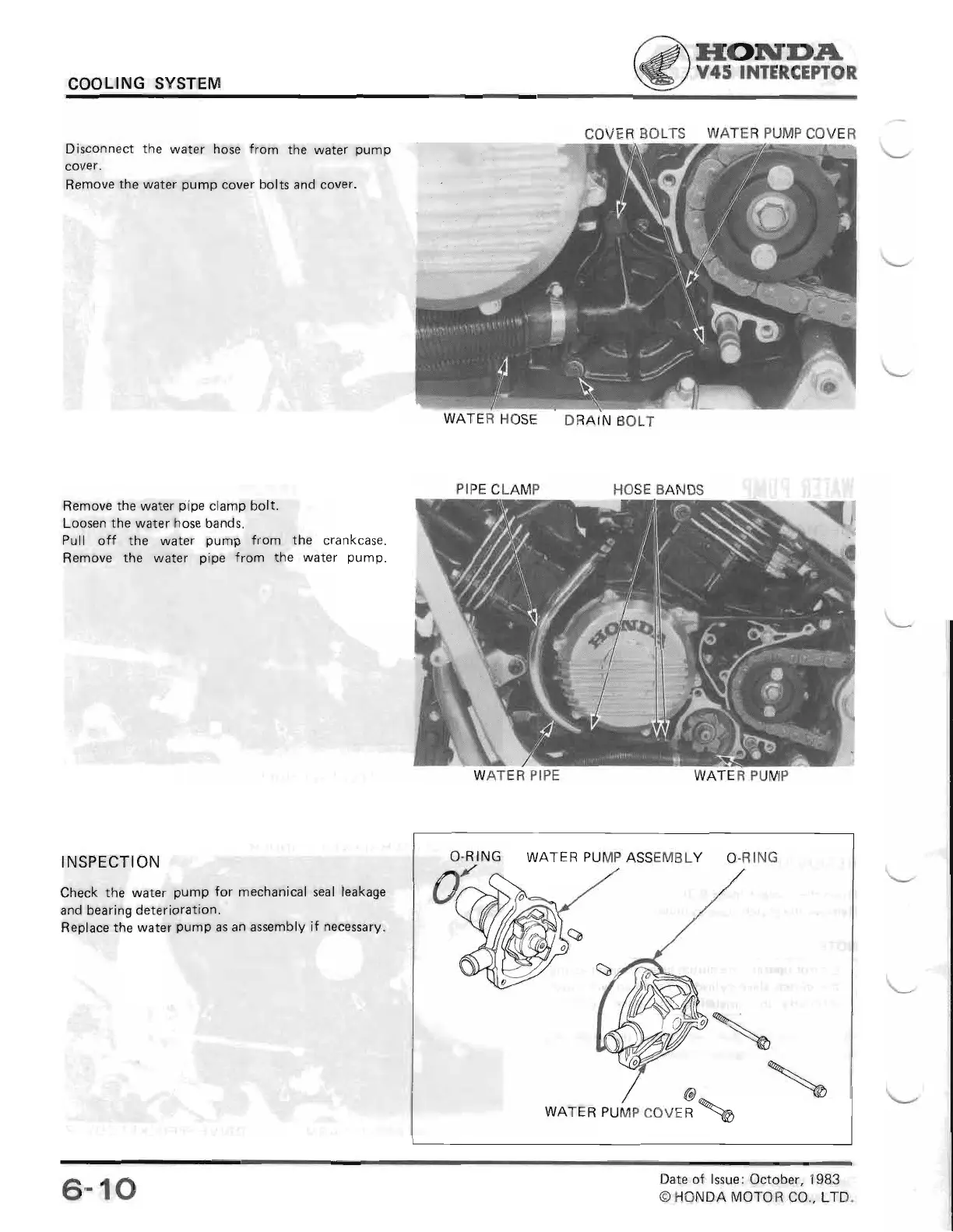

V45 INTERCEPTOR
COOLING
SYSTEM
Disconnect
the
water hose
from
the water
pump
cover.
Remove the water
pump
cover
bolts
and cover.
Remove
the water
pipe
clamp bolt.
Loosen the
water hose
bands.
Pull
off the
water
pump
from
the
crankcase.
Remove the water
pipe
from
the water
pump.
INSPECTION
Check
the water
pump
for
mechanical seal leakage
and bearing deterioration.
Replace
the water
pump
as an assembly
if
necessary.
PIPE
CLAMP
HOSE
BANDS
WATER PIPE
WATER
PUMP
WATER
O-RING
PUMP
ASSEMBLY
O-RING
COVER BOLTS
WATER
PUMP
COVER
WATER
HOSE
DRAIN
BOLT
6-10
Date of lssue:
October, 1983
