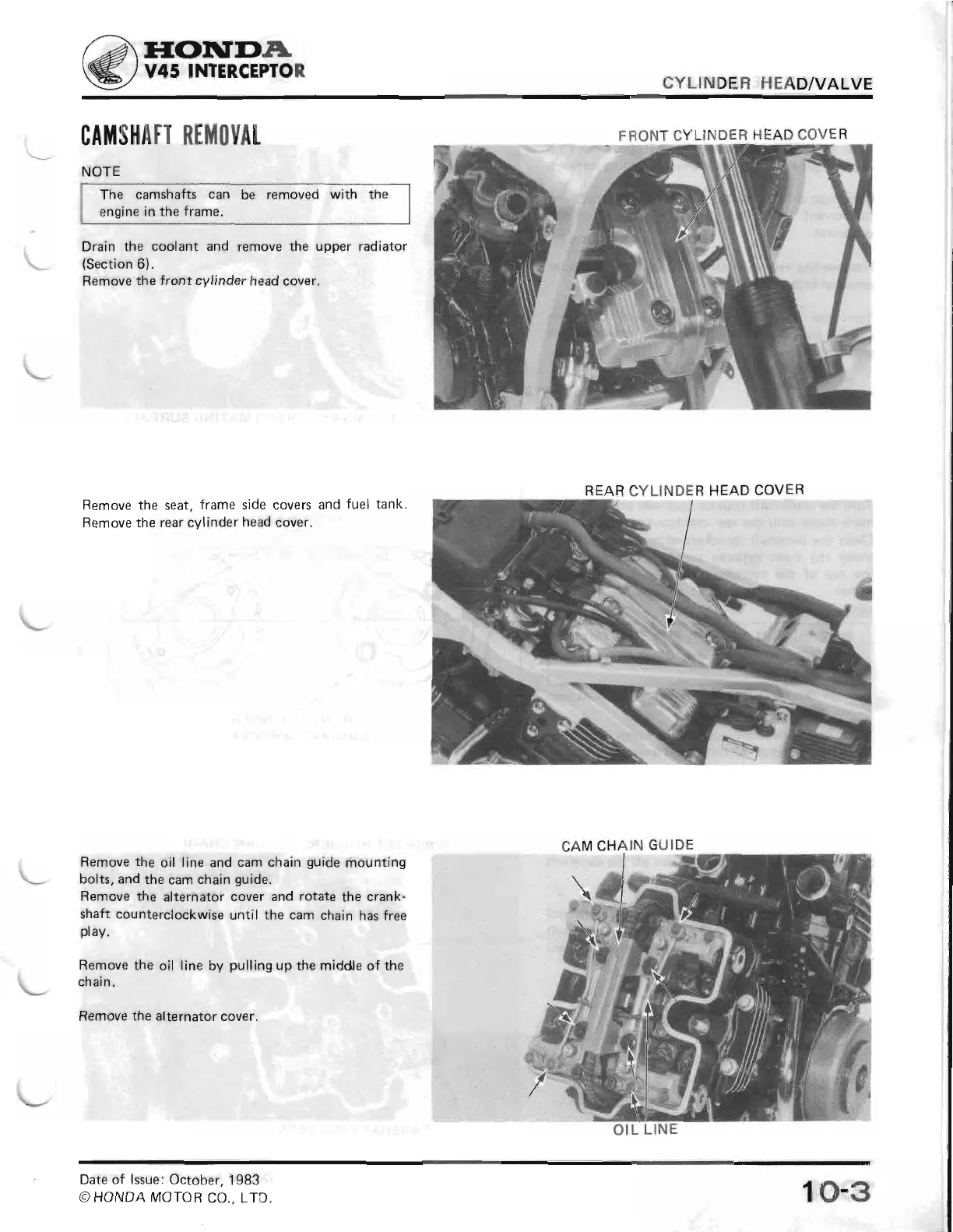

V45 INTERCEPTOR
CYLINDER
HEAD/VALVE
CAMS]|ATT
RTt|OI,AT
NOTE
The camshafts
can
be removed
with the
engine in the
frame.
Drain the
coolant and
remove
the upper
radiator
(Section
6).
Remove
the
front
cylinder
head
cover.
Remove
the seat,
frame side
covers
and
fuel tank.
Remove
the rear cylinder
head cover.
Remove the oil
line and cam
chain
guide
rhounting
bolts, and the
cam chain
guide.
Remove
the alternator
cover and
rotate
the crank-
shaft
counterclockwise until the cam
chain
has free
play.
Remove
the
oil line by
pulling
up the middle
of the
chain.
Remove the alternator
cover.
FRONT
CYLINDER
HEAD
COVER
REAR CYLINDER
HEAD
COVER
CAM
CHAIN
GUIDE
