Honda InterceptorVF700F - VFR7500054.PDF

ITONIXDA
V45
INTER.CEPTOR
FUEL
SYSTEM

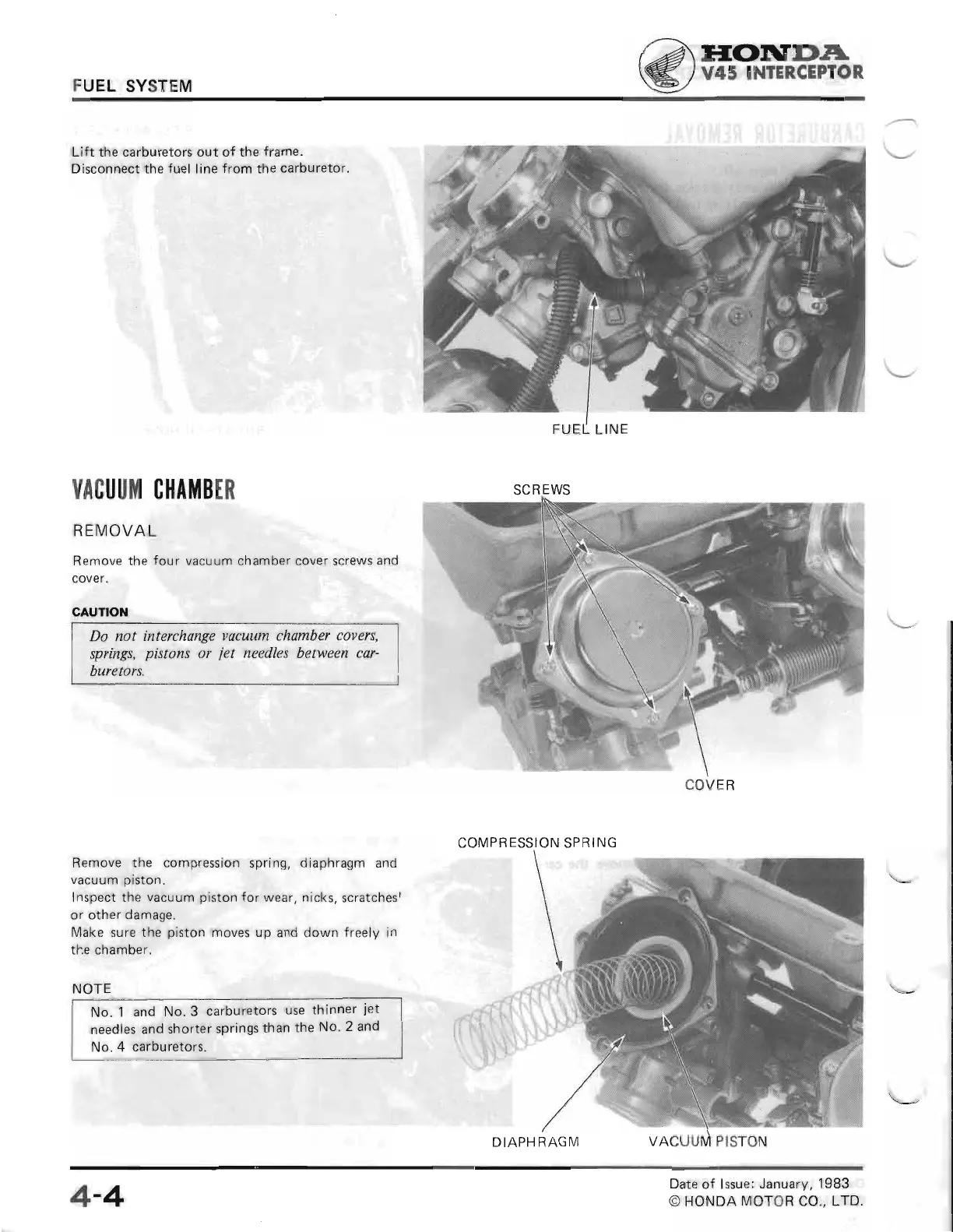

Lift the carburetors
out of the frame.
Disconnect the
fuel line from the
carburetor.
I'ACUU]||
C]|AillBER
REMOVAL
Remove the
four vacuum
chamber
cover screws and
cover.
cAuTtot{
Do not interchange
vacuum chamber
covers,
springs,
pistons
or
iet
needles between car-
buretors.
Remove the compression
spring,
diaphragm
and
vacuum
piston.
Inspect
the vacuum
piston
for wear, nicks,
scratchesl
or other damage.
Make sure the
piston
moves up
and
down freely in
the chamber.
NOTE
No. 1
and
No.3
carburetors
use
thinner
jet
needles
and shorter
springs
than
the
No. 2
and
No.4
carburetors.
COMPRESSION SPRING
COVER
4-4
DIAPHRAGM
Date
of
lssue: January, 1983
O HONDA MOTOR CO.,
LTD.
