V45
INTERCEPTOR
FUEL
SYSTEM
FUEL
JOINT
PIPE
No.4
CARBURETOR
t:
I
'\--

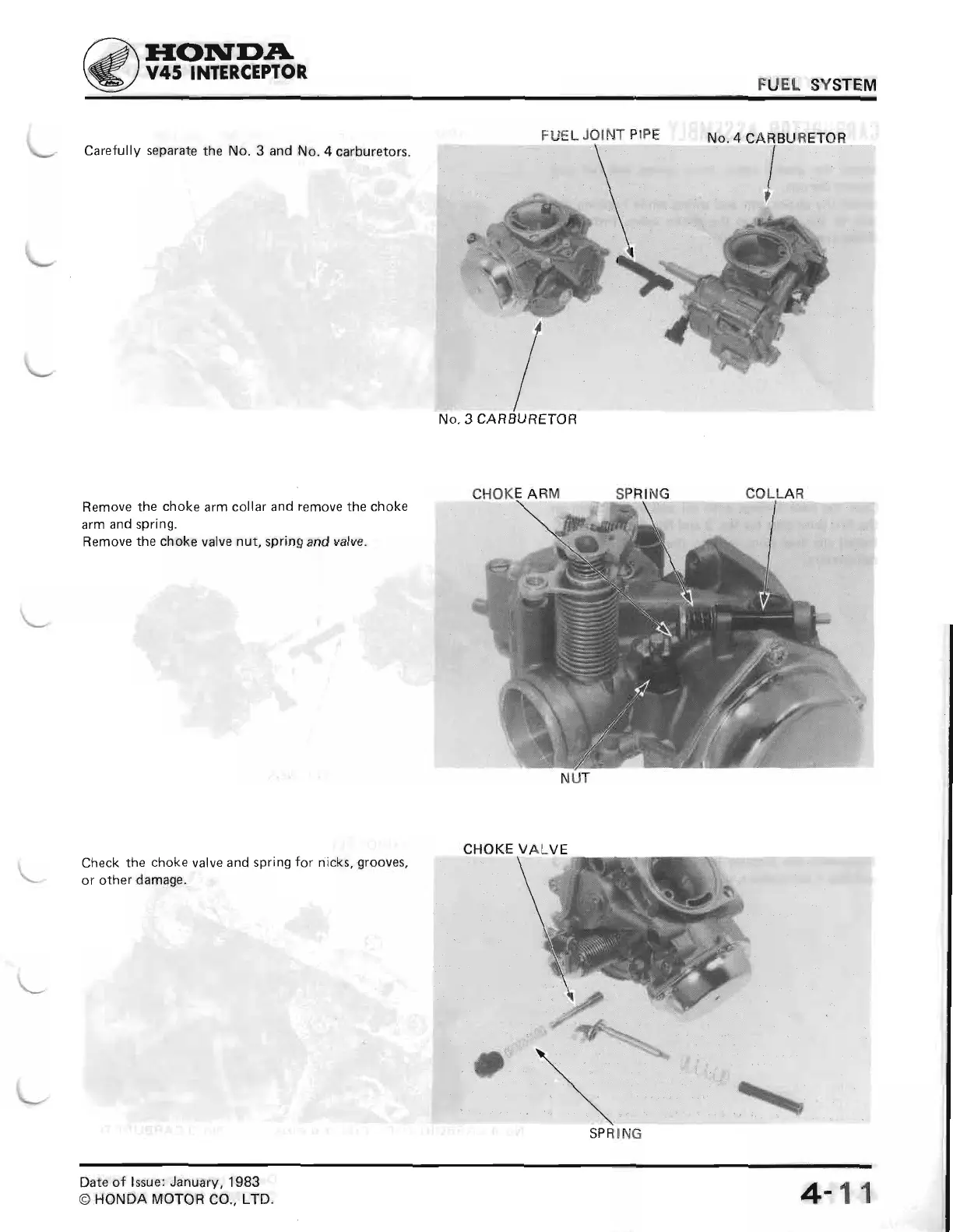

Carefully
separate
the
No.
3
and No. 4 carburetors.
Remove the
choke arm
collar
and
remove
the choke
arm and
spring.
Remove
the choke
valve nut. spring
and
valve'
No.3 CARBURETOR
CHOKE
VALVE
Check
the choke
valve
and
spring
for nicks.
grooves,
or
other
damage.
NUT
SPRING
Date
of lssue:
January, 1983
O
HONDA
MOTOR CO.,
LTD.
4-11
