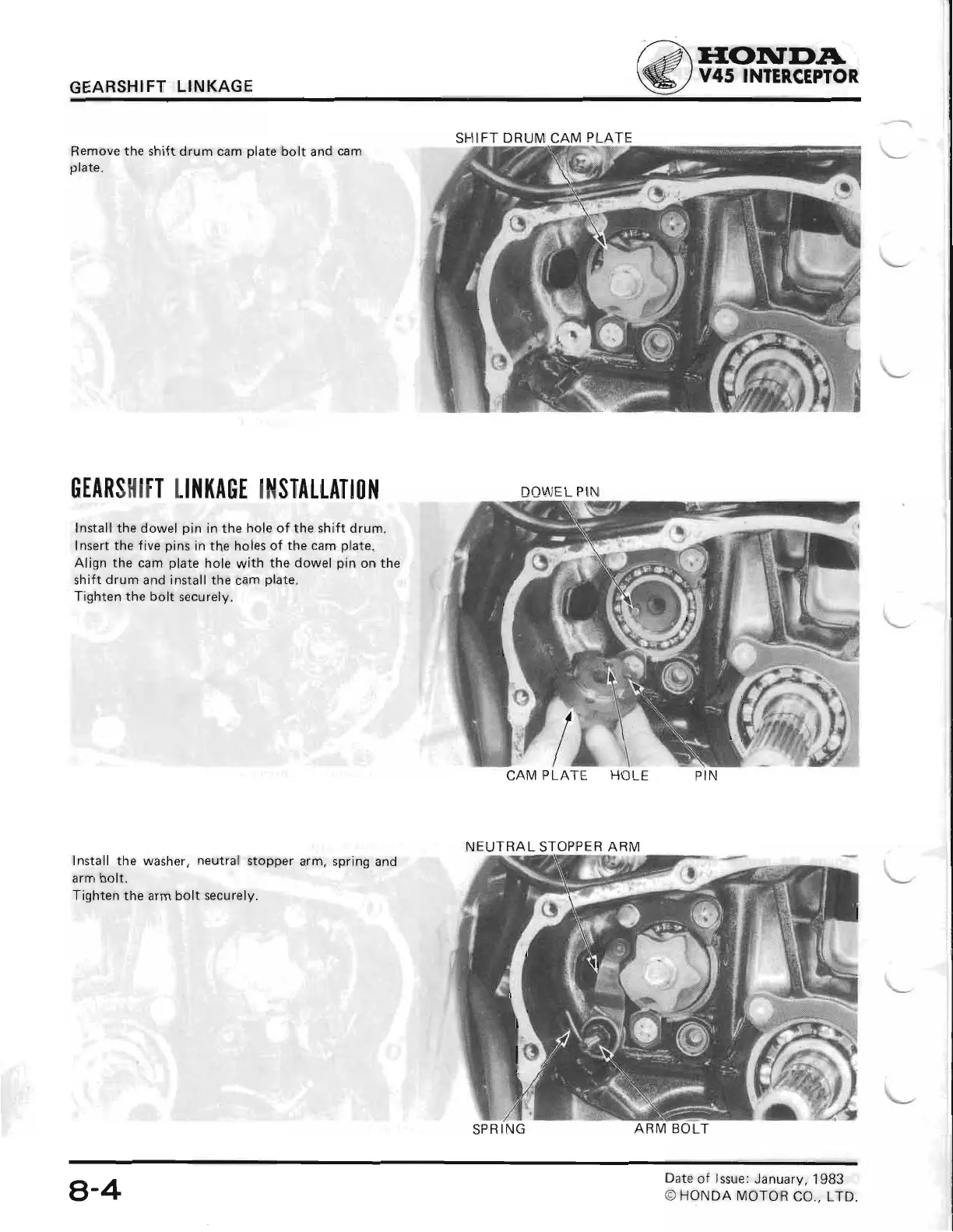

GEARSHIFT
LINKAGE
Remove
the shift drum
cam
plate
bolt and
cam
plate.
OEARS]|ITT
LII{I(AGT
II{STALIATION
Install the
dowel
pin
in the hole
of the
shift drum.
Insert the five
pins
in t[e holes of
the cam
plate.
Align the cam
plate
hole with
the dowel
pin
on the
shift drum and
install the cam
plate.
Tighten the
bolt
securely.
Install
the washer, neutral
stopper arm,
spring and
arm bolt.
Tighten the arm bolt
securely.
CAM
PLATE HOLE
ARM BOLT
SHIFT DRUM
CAM
PLATE
DOWEL PIN
NEUTRAL STOPPER ARM
a-4
SPRING
