IIOI\Tf,DA
V45 INTER,CEPTOR
19.

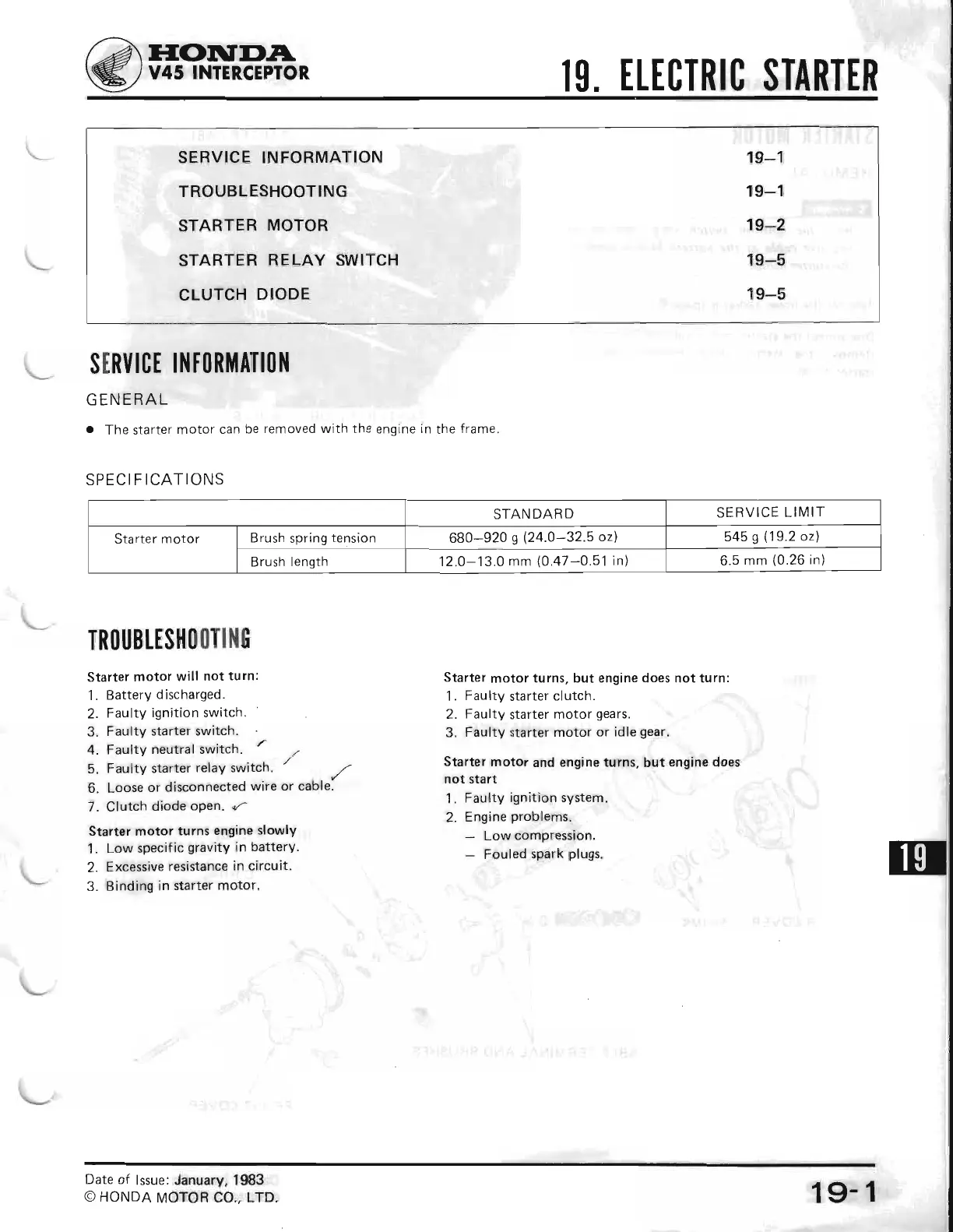

ELECTRIC STARTER
SERI,ICE
INTOR]I|ATIO]I
GENERAL
o
The
starter
motor
can be
removed with the
engine
in
the
frame.
TROUBTES1|OOIINO
Starter
motor
will not
turn:
1. Battery
discharged.
2.
Faulty ignition
switch.
3.
Faulty starter
switch.
4, Faulty
neutral switch.
'
5.
Faulty starter
relay switch.
'
/'
6.
Loose
or disconnected
wire or cablel
7. Clutch
diode
open.
.z-
Starter
motor turns
engine
slowlY
1. Low
specific
gravity
in battery.
2.
Excessive
resistance
in circuit.
3.
Binding
in starter
motor.
Starter
motor
turns, but engine
does not
turn:
1.
Faulty starter clutch.
2.
Faulty starter
motor
gears.
3.
Faulty starter
motor
or
idle
gear.
Starter
motor and engine
turns,
but
engine does
not
start
1.
Faulty
ignition
system.
2.
Engine
problems.
-
Low
compression.
-
Fouled
spark
Plugs.
SERVICE
INFORMATION
TROUBLESHOOTING
STARTER
MOTOR
STARTER
RELAY
SWITCH
CLUTCH
DIODE
19-1
19-1
19-2
19-5
19-5
SPECIF
ICATIONS
STANDARD
SERVICE
LIMIT
Starter
motor
Brush
spring
tension
680-920
s
Q4i-325
ozl
545
s
(19.2
ozl
Brush length
12.0-13.0
mm
(0.47-0.51
in)
6.5
mm
(0.26
in)
19-
1
Date of lssue:
January, 1983
