ITONTf,DA
V45 INTERCEPTOR
FUEL
SYSTEM

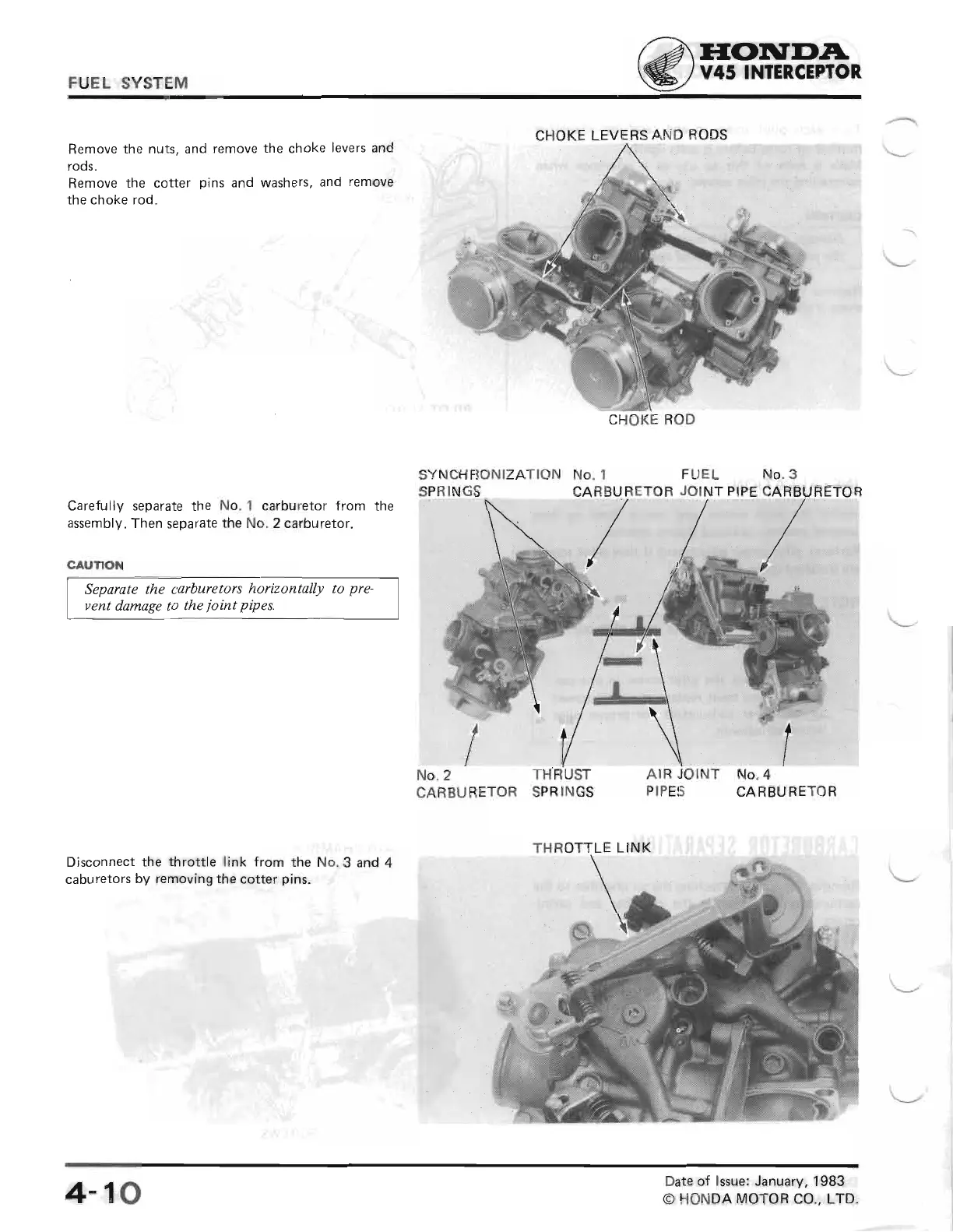

Remove the
nuts,
and
remove the choke
levers
and
rods.
Remove
the cotter
pins
and
washers,
and
remove
the choke
rod.
Carefully separate
the No.
1 carburetor from
the
assembly. Then
separate the No.
2 carburetor.
CAUTION
Separate
the carburetors horizontally to
pre-
vent
damage to the
joint
pipes.
Disconnect the throttle link from
the No.3 and
4
caburetors by removing the
cotter
pins.
SYNCHRONIZATION
SPR
INGS
t
I
No.2
CARBURETOR
SPR
INGS
AIR
JOINT
No.4
PIPES
CARBURETOR
CHOKE
LEVERS AND
RODS
CHOKE
ROD
No. 1
CARBURETOR
THROTTLE
LINK
4-10^
Date
of
lssue:
January, 1983
O
HONDA
MOTOR CO., LTD.
