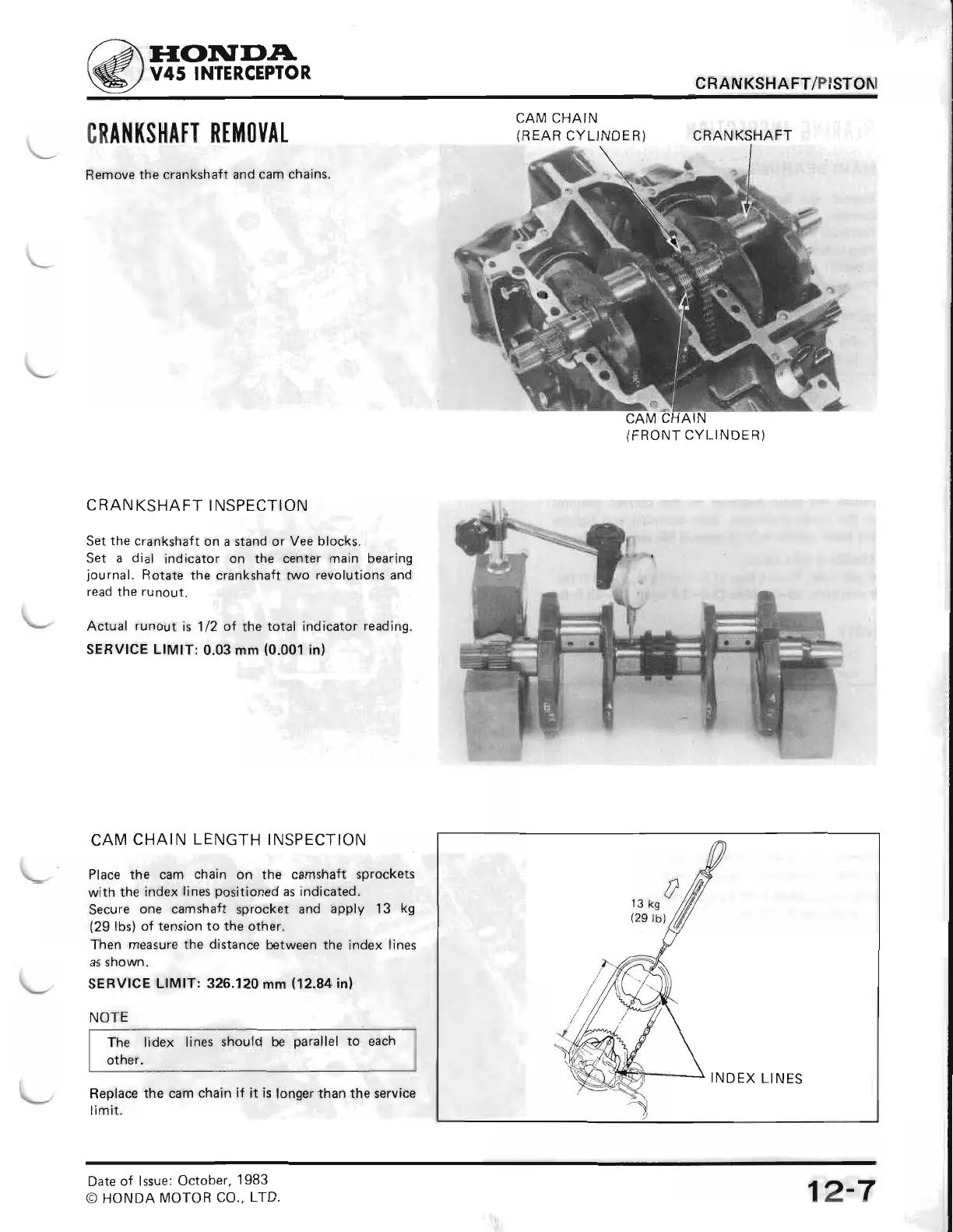

CRANKSHAFT/PISTON
CRAN1(S]|AFT
REMOI|AL
Remove
the crankshaft
and cam chains.
CRANKSHAFT
INSPECTION
Set the
crankshaft
on
a stand
or Vee blocks.
Set a
dial indicator
on
the center
main bearing
journal.
Rotate
the
crankshaft two
revolutions
and
read
the
runout.
Actual
runout is
112
of
the
total indicator
reading.
SERVICE
LIMIT: 0.03 mm
(0.001
in)
CAM
CHAIN
LENGTH
INSPECTION
Place
the
cam chain
on
the
camshaft sprockets
with
the
index lines
positioned
as indicated.
Secure
one camshaft
sprocket
and
apply 13
kg
(29
lbs)
of tension
to the
other.
Then measure
the distance between the index lines
as snown.
SERV|CE
LIMIT: 326.120
mm
(12.84
in)
NOTE
The
liidex
lines should
be
parallel
to each
other.
Replace
the
cam
chain
if it is longer than
the service
limit.
CAM CHAIN
(REAR
CYLINDER)
CRANKSHAFT
INDEX
LINES
@-l
CAM
CHAIN
{FRONT
CYLINDER)
12-7
