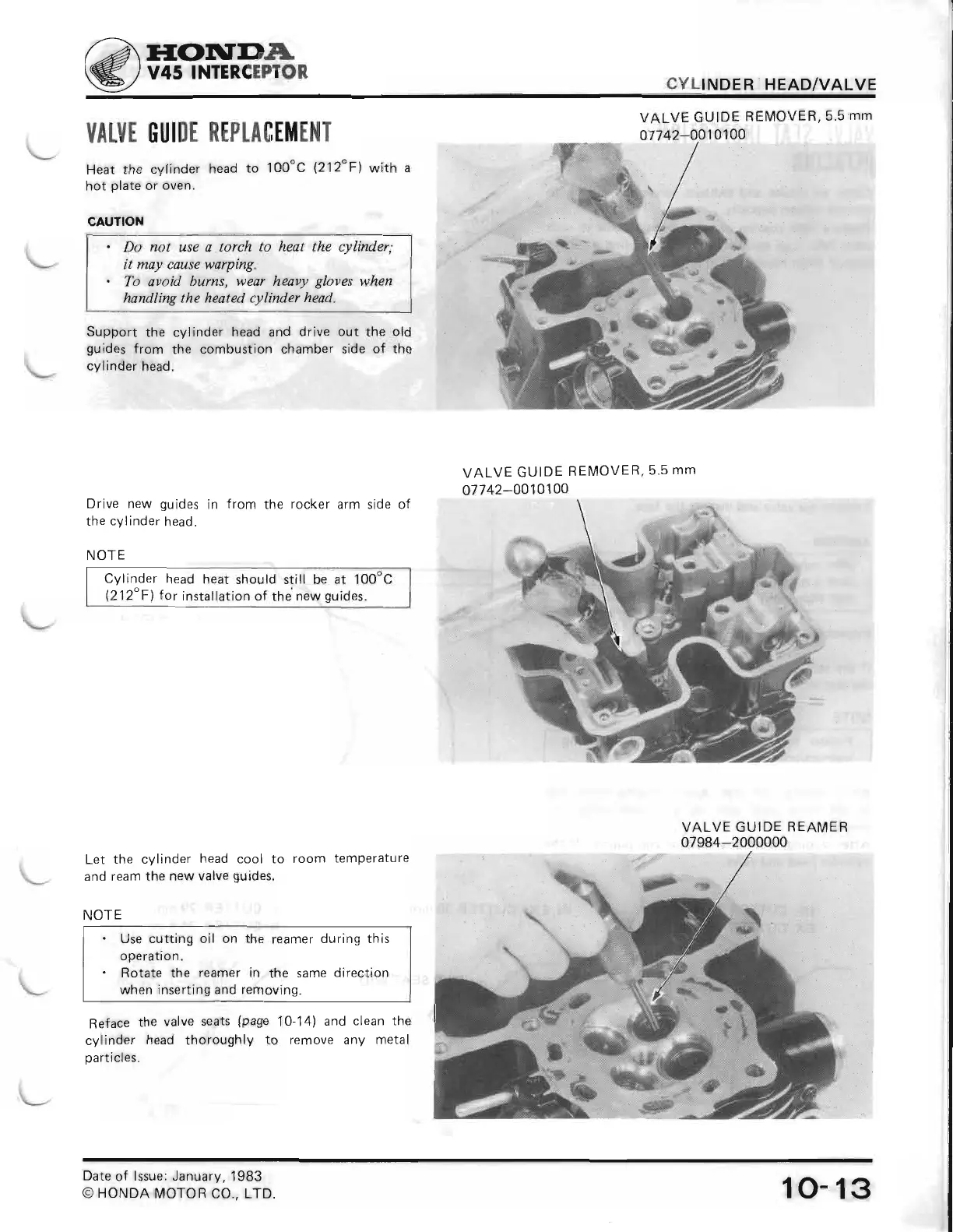

CYLINDER HEAD/VALVE
I|ALI|E GUIDE
REPLACT]I|ENT
Heat
the cylinder
head
to
1ao'c
(212'
F) with a
hot
plate
or oven.
CAUTION
.
Do
not
use
a torch
to heat
the
cylinder;
it may
cause warping.
.
To
avoid burns, wear heavy
gloves
when
handling the
heated cylinder hmd.
Support the
cylinder head and
drive
guides
from
the
combustion
chamber
cvlinder head.
Drive
new
guides
the cvlinder
head.
in
from
the
rocker arm
side
of
NOTE
Cylinder
head heat
should still be at 100"C
(212-Fl
for
installation
of
the
new
guides.
Let
the
cylinder
head
cool
to
room temperature
and
ream
the new
valve
guides.
NOTE
.
Use cutting
oil on the
reamer during
this
operation.
.
Rotate the
reamer in the same
direction
when inserting and
removing.
Reface
the
valve seats
(page
10-14) and
clean the
cylinder
head
thoroughly
to
remove
any
metal
oart
icles.
VALVE
GUIDE
REMOVER,5.5
mm
07742-001
01
00
out the old
side
of the
VALVE
GUIDE
REMOVER,5.5
mm
o7742-0010100
,
"*i
VALVE
GUIDE
REAMER
07984-2000000
10-
13
