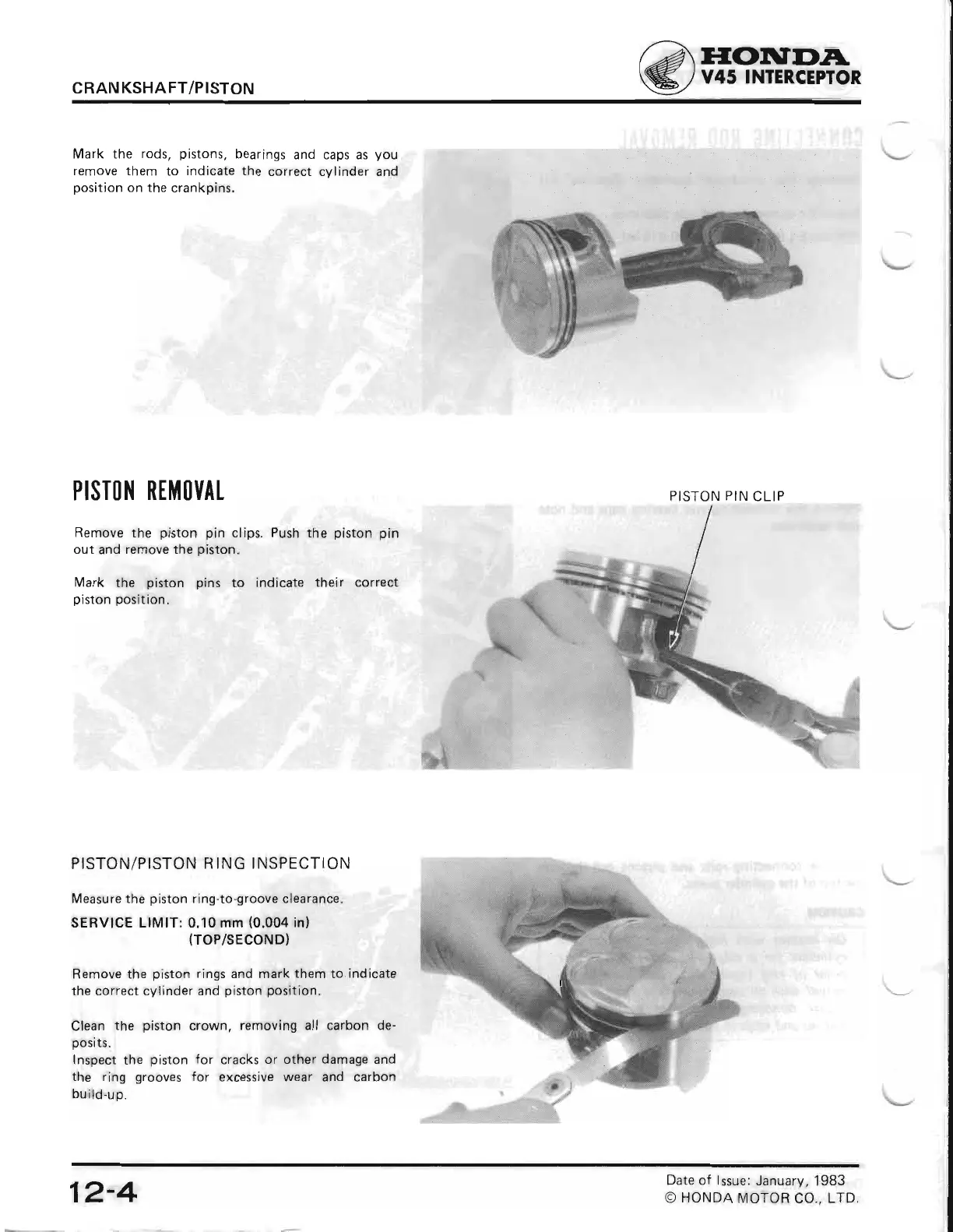

Honda InterceptorVF700F - VFR7500166.PDF

ITONTXDA
V45 INTER,CEPTOR,
CRANKSHAFT/PISTON
Mark
the
rods,
pistons,
bearings and caps as
you
remove them to indicate
the correct cylinder and
position
on the crankpins.
PISTOl{ REMOI/AL
Remove
the
piston pin
clips.
Push
the
piston pin
out and
remove
the
piston.
Mark
the
piston pins
to indicate
their correct
piston
position.
PISTON/PISTON
RING INSPECTION
Measure the
piston
ring-to-groove
clearance.
SERVICE
LIMIT:
0,10 mm
(0.004
in)
(TOP/SECOND)
Remove the
piston
rings
and
mark them to
indicate
the
correct cylinder and
piston
position
Clean
the
piston
crown, removing all
oosr
ts.
Inspect the
piston
for
cracks
or other
the
ring
grooves
for
excessive wear
bu ild-up.
*%i
carbon de-
damage and
and carbon
PISTON
PIN
CLIP
Date of lssue: Januarv, 1983
O
HONDA MOTOR CO.,
LTD.
12-4
