Honda InterceptorVF700F - VFR7500133.PDF

IIONITDA
V45 INTER,CEPTOR,

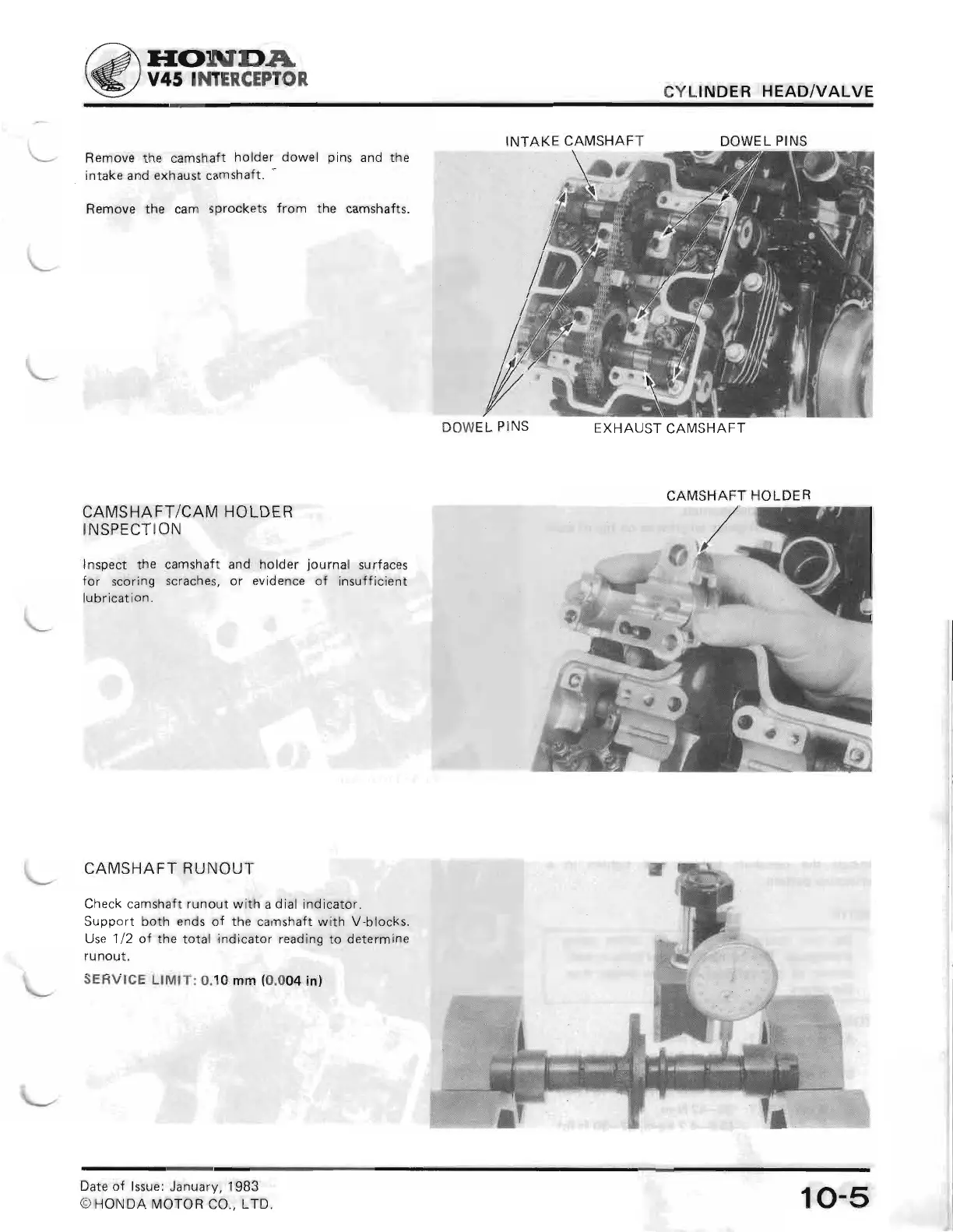

CYLINDER
HEAD/VALVE
INTAKE CAMSHAFT
DOWEL
PINS
Remove the camshaft
holder dowel
pins
and the
intake
and
exhaust camshaft.
-
Remove the cam sprockets from the
camshafts.
DOWEL
PINS
EXHAUST
CAMSHAFT
CAMSHAFT/CAM
INSPECTION
Inspect
the
camshaft
for
scoring scraches,
lubrication.
HOLDER
and holder
journal
surfaces
or evidence
of insufficient
CAMSHAFT
RUNOUT
Check camshaft runout with
a dial indicator.
Support
both ends of the
camshaft with V-blocks.
Use
112
of the
total indicator reading
to
determine
ru nout.
SERVICE
LIMIT:
0.10
mm
(0.004
in)
CAMSHAFT HOLDER
10-5
Date of lssue: January,
1983
