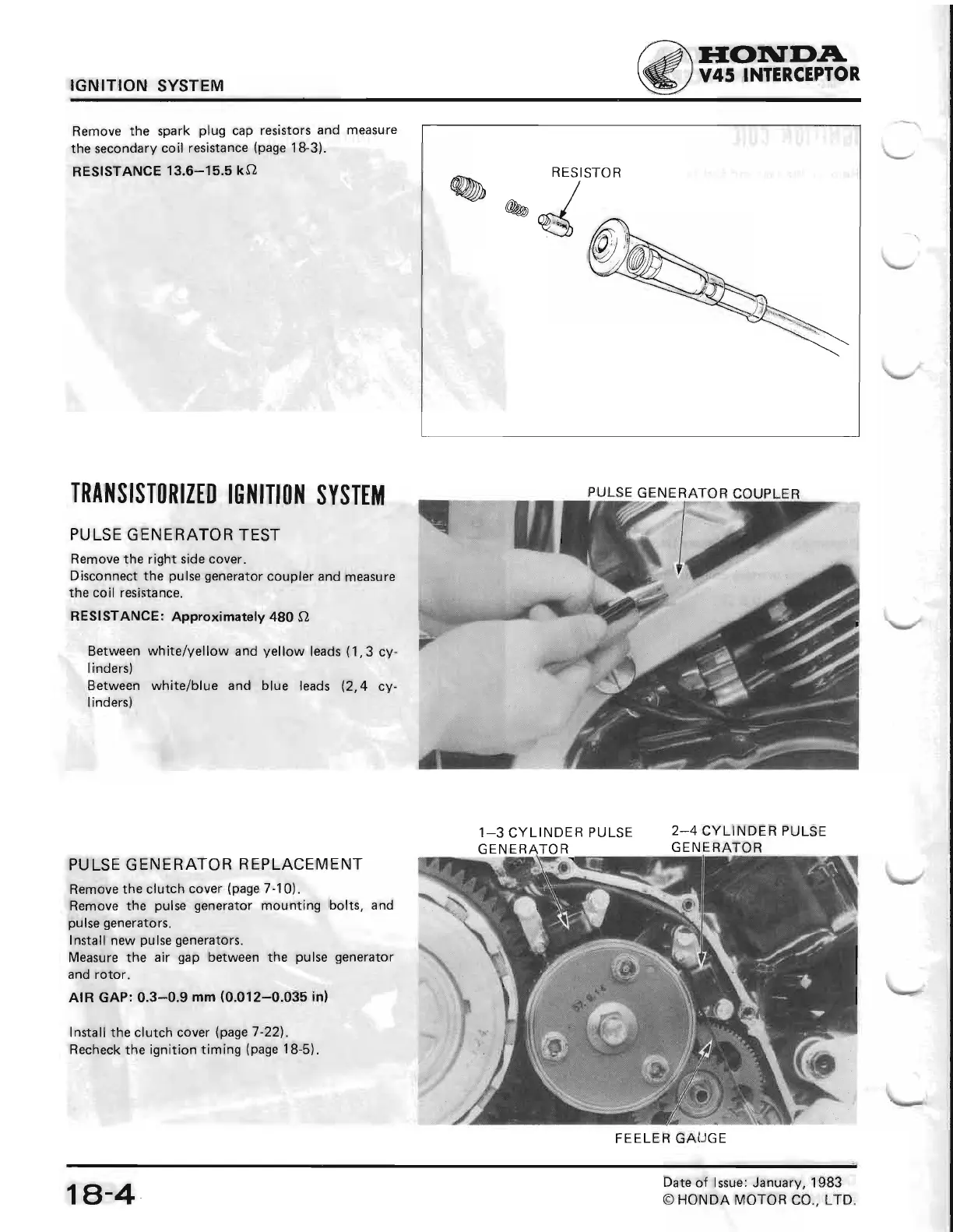

IIONTDA
V45
INTER.CEPTOR
IGNITION
SYSTEM
Remove
the spark
plug
cap
resistors and measure
the secondary
coil
resistance
(page
18-3).
RESTSTANCE
1 3.6-1 5.5
kst
TRAl{SISTORIZTD
IGNITIOl{
SYSTE|||
PULSE
GENERATOR TEST
Remove the right side cover.
Disconnect
the
pulse generator
coupler and measure
the
coil resistance.
RESISTANCE:
Approximately 480
Q
Between white/yellow and
yellow
leads
(1,3
cy-
I inders)
Between white/blue and
blue
leads
(2,4
cy-
linders)
PU
LSE G
ENE RATOR R EPLACEMENT
Remove
the
clutch cover
(page
7-10).
Remove the
pulse
generator
mounting
bolts, and
pulse
generators.
Install new
pulse
generators.
Measure the air
gap
between the
pulse generator
and rotor.
AIR GAP: 0.3-0.9
mm
(0.012-0.035
in)
f nstall
the clutch cover
lpageT-22l.
,
Recheck the ignition
timing
(page
18-5).
PULSE
GENE RATOR
COUPLER
2_4 CYLINDER
PULSE
GENERATOR
FEELER GAUGE
1A-4
Date
of
lssue: January,
1983
O HONDA MOTOR CO.. LTD.
