INTER,CEPTOR,

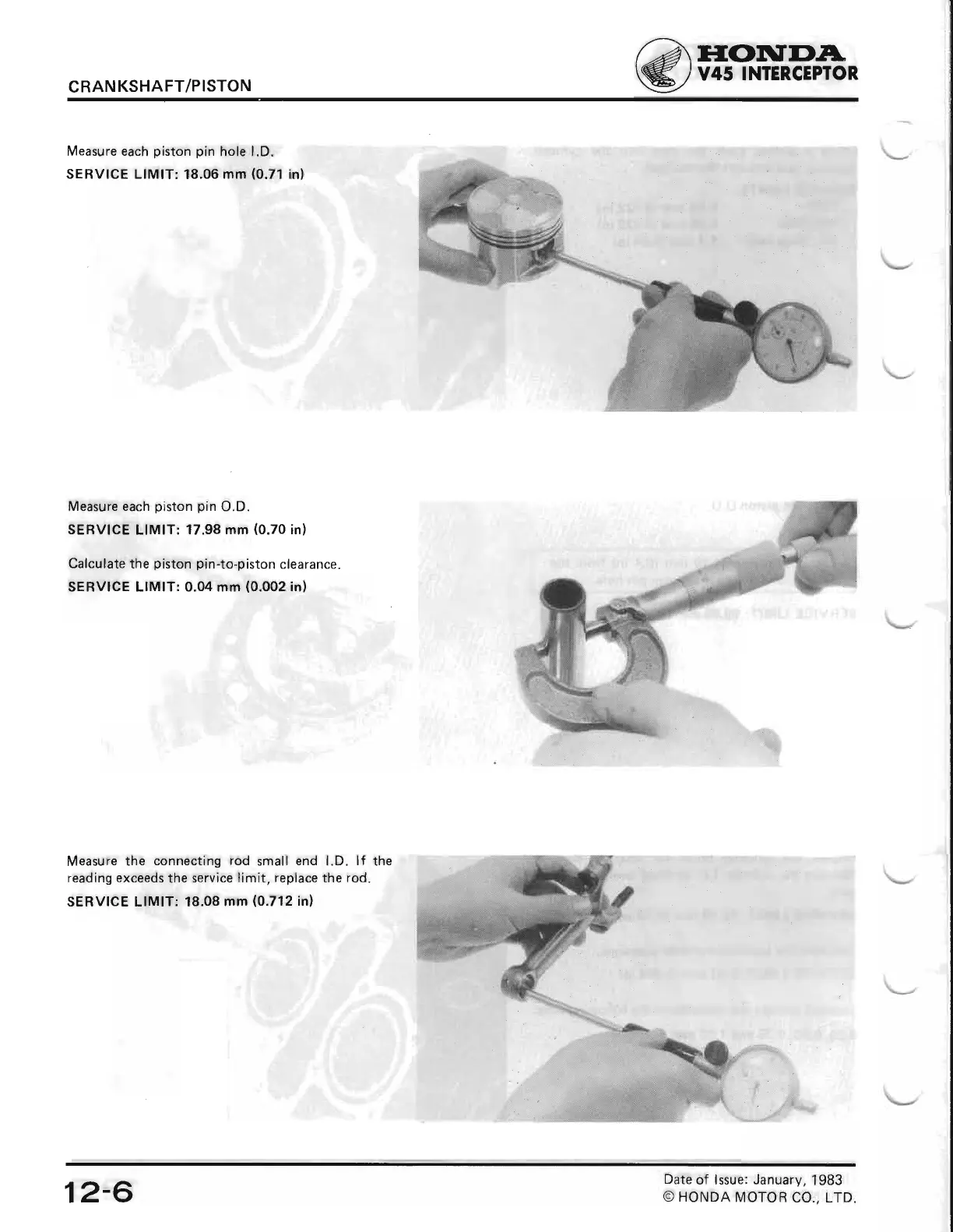

CRANKSHAFT/PISTON
Measure
each
piston pin
hole LD.
SERVICE
LIMIT: 18.06
mm
(0.71
in)
Measure each
piston pin
O.D.
SERVICE LIMIT:
17.98
mm
(0.70
in)
Calculate the
piston pin-to-piston
clearance.
SERVICE LIMIT: 0.04
mm
(0.002
in)
Measure the connecting
rod
small
end l.D. lf
the
reading
exceeds
the service
limit, replace
the
rod.
SERVICE LIMIT: 18.08
mm
(0.712
in)
Date
of lssue: January.
1983
O HONDA
MOTOR
CO., LTD.
12-6
