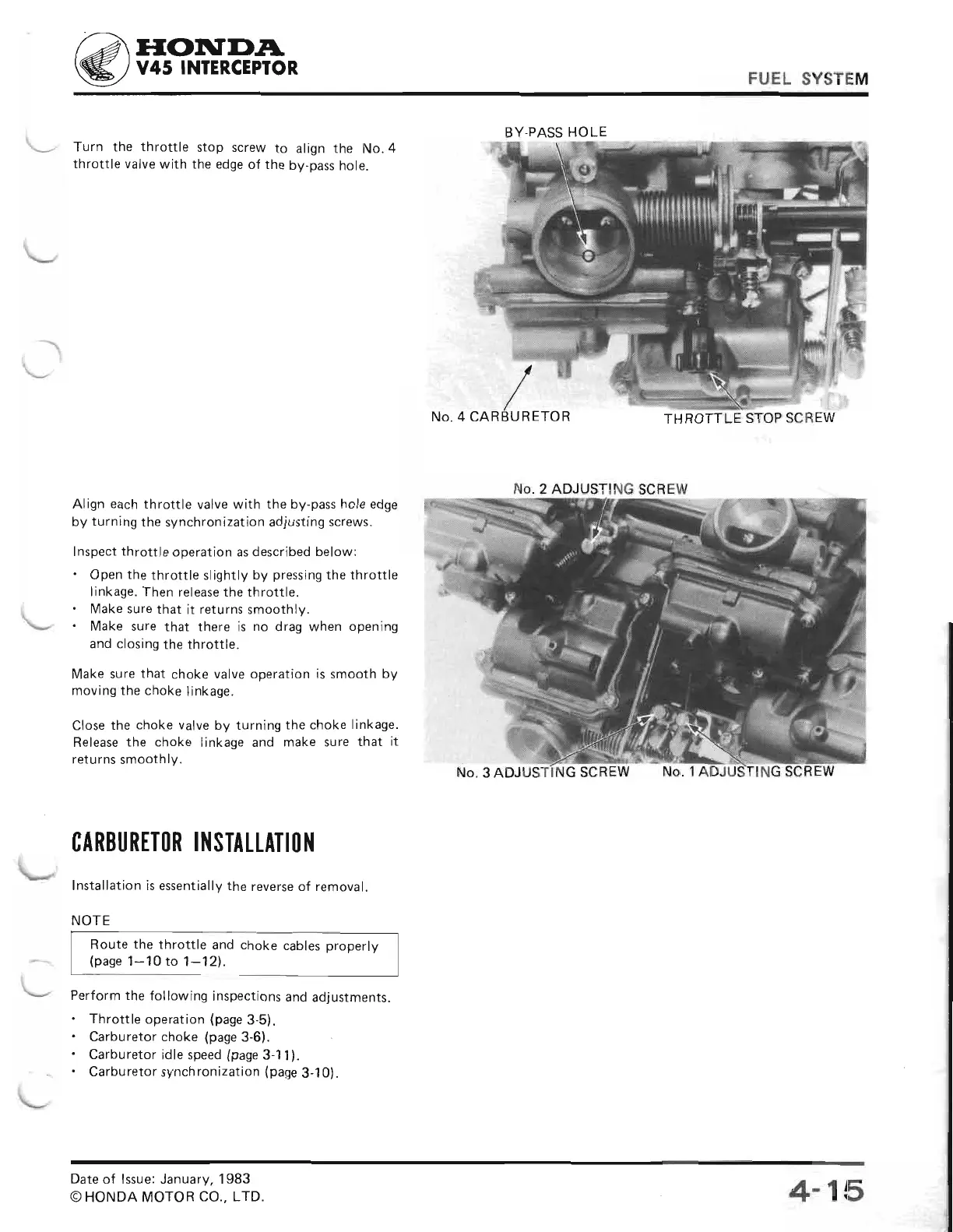

V45 INTERCEPTOR
FUEL
SYSTEM
BY.PASS
HOLE
\-/
Turn the throttle
stop screw
to align the No.
4
throttle
valve
with
the edge
of the by-pass hole.
Align
each throttle
valve with the by-pass hole edge
by turning
the synchronization adlusting screws.
Inspect
throttle operation as
described below:
.
Open the throttle slightly
by
pressing
the throttle
linkage.
Then
release the throttle.
t
Make sure that
it returns smoothly.
\r
.
Make
sure
that there is
no drag when opening
and
closing the throttle.
Make sure
that choke
valve operation is
smooth
by
moving the choke linkage.
Close
the
choke valve
by turning
the choke
linkage.
Release
the choke
linkage and
make
sure
that
it
returns smoothly.
CARBURETOR
I I{STATIATIOl{
lnstallation is essentially
the reverse of removal.
NOTE
Route the throttle and
choke cables
properly
(page
1-10 to 1-121.
Perform the following
inspections
and adjustments.
.
Throttle
operation
(page
3-5).
.
Carburetor choke
{page
3-6).
.
Carburetor idle
speed
(page
3-11).
.
Carburetor synchronization
(page
3-10).
THROTTLE
STOP
SCREW
No. 2 ADJUSTING SCREW
