HYDRAULIC
BRAKE
IIONTTDA
V45 INTERCEPTOR

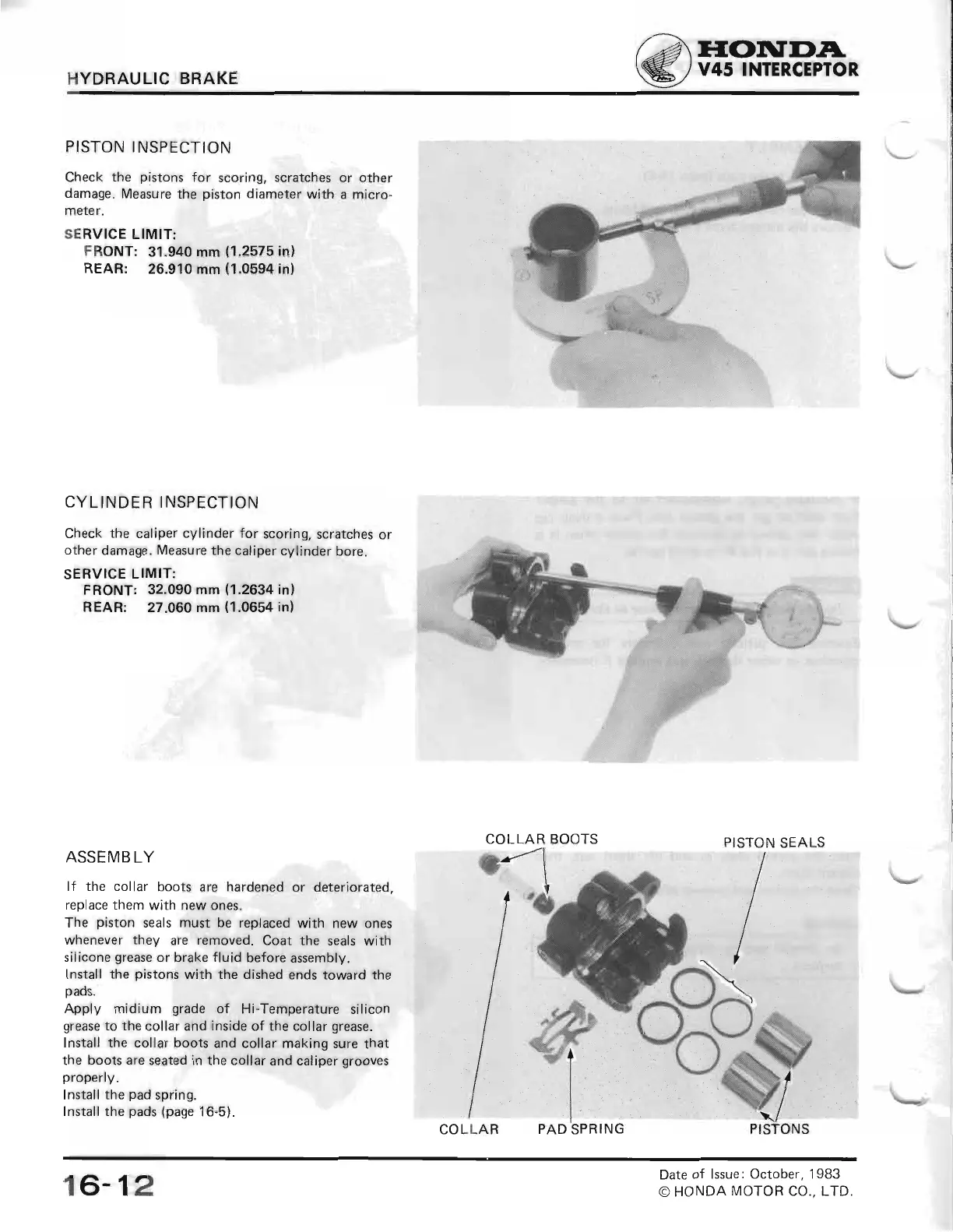

PISTON
INSPECTION
Check
the
pistons
for
scoring.
scratches
or other
damage.
Measure
the
piston
diameter
with
a micro-
meter.
SERVICE LIMIT:
FRONT:
31.940 mm
(1.2575
in)
REAR:
26.910
mm
(1.0594
in)
CYLINDER
INSPECTION
Check
the caliper
cylinder
for
scoring,
scratches
or
other damage.
Measure
the caliper
cylinder bore.
SERVICE
LIMIT:
FRONT:
32.090 mm
(1.2634
in)
REAR:
27.060
mm
(1.0654
in)
ASSEMB
LY
lf
the
collar boots
are hardened
or deteriorated.
replace
them with new
ones.
The
piston
seals must be replaced
with new
ones
whenever they
are
removed.
Coat the seals with
silicone
grease
or brake fluid
before
assembly.
Install
the
pistons
with the dished
ends toward
the
pads.
Apply midium
grade
of Hi-Temperature
silicon
grease
to the collar and inside of the
collar
grease.
Install the collar boots
and collar making
sure that
the boots are seated in the collar
and
caliper
grooves
properly.
Install
the
pad
spring.
Install
the
pads (page
16-5).
t
r'i
PISTON
SEALS
ffire
u*w
-ffi
"l
I
PAD SPRING
16^- 12
COLLAR
Date of lssue:
October,
1983
