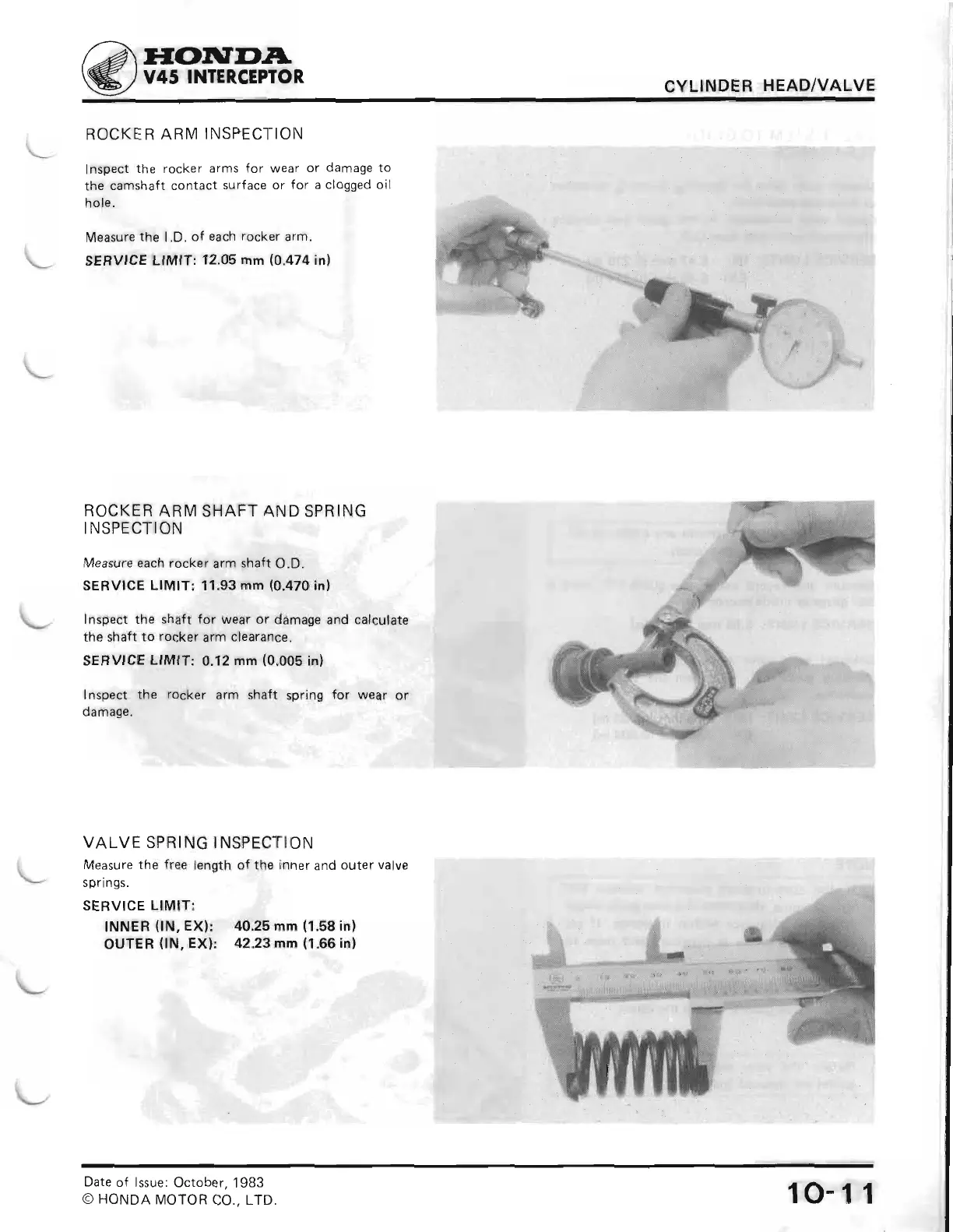

Honda InterceptorVF700F - VFR7500139.PDF

ITONIf,DA
V45
INTERGEPTOR.
ROCKER
ARM
INSPECTION
lnspect
the
rocker
arms
for wear
or
damage
to
the camshaft
contact
surface
or
for
a
clogged
oil
hole.
Measure
the
l.D.
of
each rocker arm.
SERVICE
LIMIT:
12.05
mm
(0.474
inl
ROCKER ARM
SHAFT AND
SPRING
INSPECTION
Measure
each
rocker
arm
shaft
O.D.
SERVICE
LIMIT:
11.93
mm
(0.470
in)
Inspect
the shaft
for wear
or damage and
calculate
the shaft
to
rocker
arm
clearance.
SERVICE
LIMIT:
0.12
mm
(0.005
in)
Inspect
the
rocker arm
shaft spring
for wear or
damage.
VALVE
SPRI
NG
I NSPECTION
Measure
the
free length
of the inner and
outer
valve
springs.
SERVICE
LIMIT:
INNER
(lN,
EX):
40.25
mm
(1.58
in)
OUTER
(lN,
EX):
42'23mm
(1.66
in)
CYLINDER
HEAD/VALVE
="*t't.
,,i
Date of lssue: October.1983
O HONDA
MOTOR CO., LTD.
10-11
