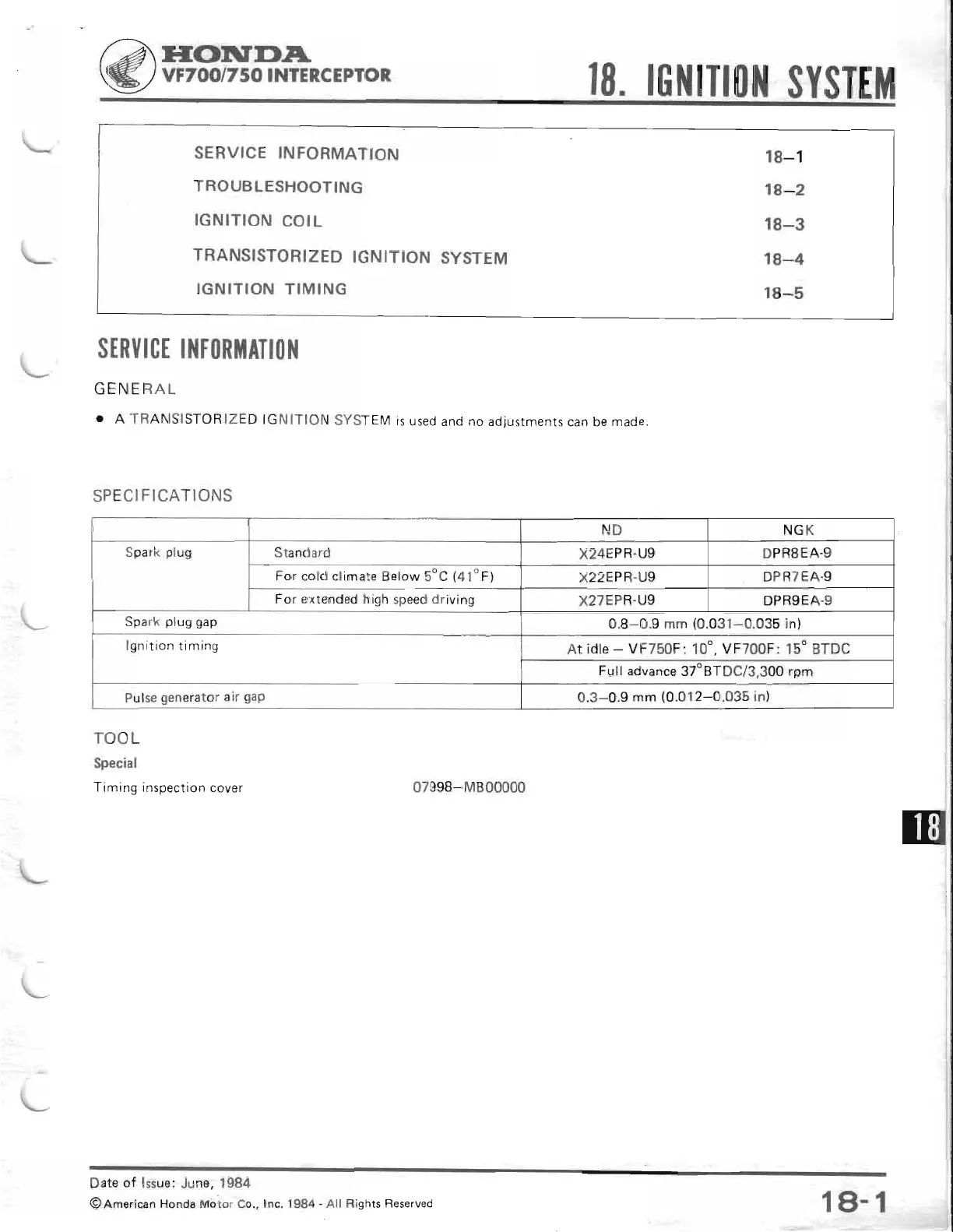

GENERAL
o
A TRANSISTORIZED IGNITION
SYSTEM
is
used
and
no
adjustments can be made.
TOOL
Special
Timing inspection
cover
07998-M800000
SPECIF
ICATIONS
ND
NGK
Spark
plug
Standard
X24EPR.U9 DPR8EA.9
For
cold climate
Below
50c
(41'F)
X22EPR.U9
DPRTEA-9
For
extended
high
speed driving
X27EPR.U9 DPR9EA.9
Spark
plug
gap
0.8-0.9
mm
(0.031-0.035
in)
lgnition
timing
At
idte
-
VF750F: 1oo. VFToOF: 150
BTDC
Full advance
37"BTDC/3,300
rpm
Pulse
generator air
gaP
0.3-0.9
mm
(0.012-0.035
in)
\_
l
Date
of
lssue:
June,
1984
@American
Honda
Motor
Co.,
Inc. 1984
-
All Rights Reserved
18-1
