LUBRICATION
IIONTDA
V45 INTERCEPTOR

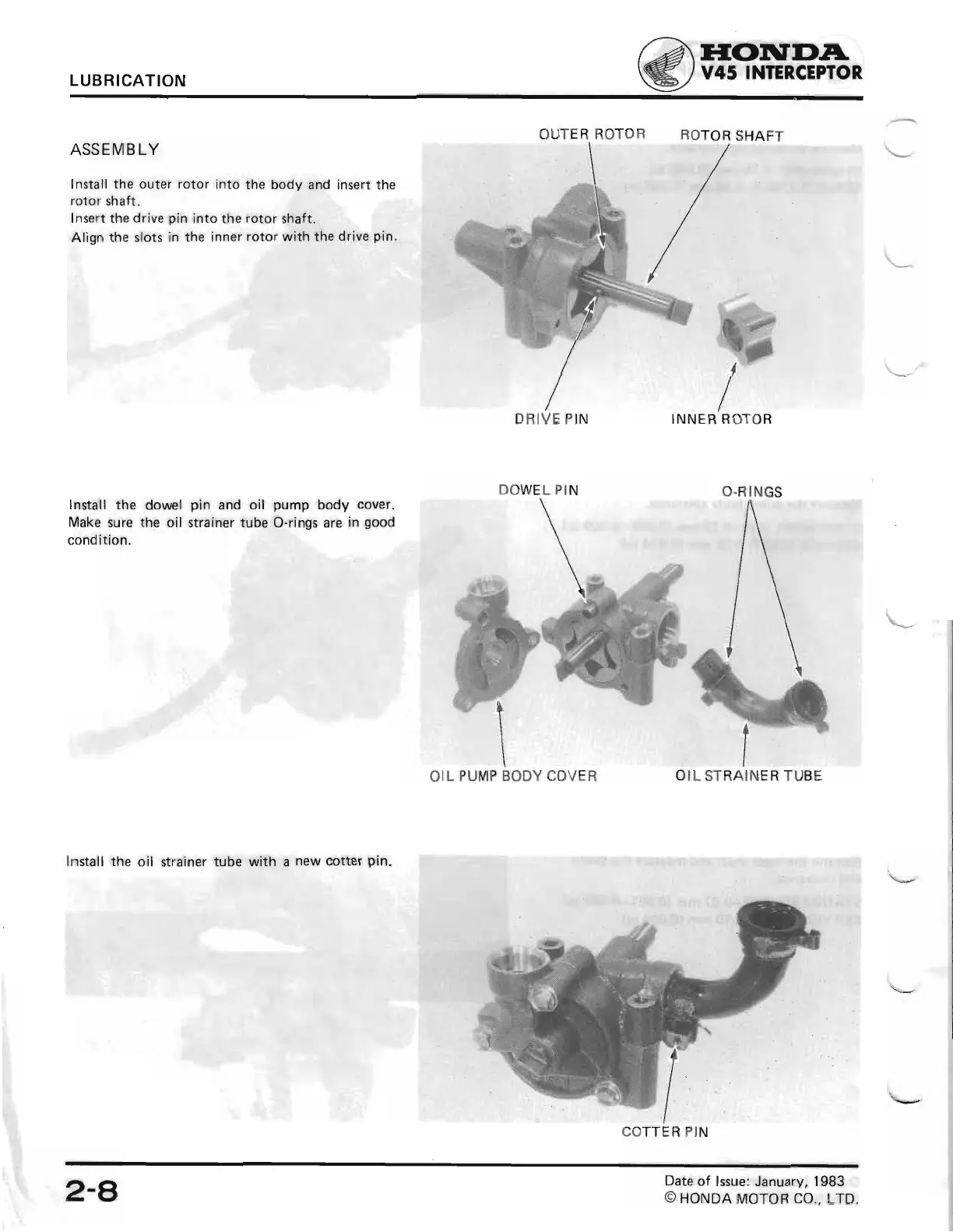

ASSEMBLY
Install the
outer rotor
into
the body and insert
the
rotor
shaft.
Insert
the
drive
pin
into the rotor
shaft.
Align
the slots
in
the
inner
rotor with
the
drive
pin.
OUTER
ROTOR
ROTOR
SHAFT
DRIVE PIN
I NNER
DOWEL PIN
Install
the dowel
pin
and oil
Make
sure the oil strainer tube
condition.
pump
body cover.
O-rings are
in
good
\.
O-RINGS
A
/\
#
l\
rl\
ffi
mi \
%
i
OIL
STRAINER
TUBE
Install
the oil
strainer
tube
with
a new cotter
pin.
I
COTTER
PIN
Date
of
lssue:
January,
1983
O
HONDA
MOTOR
CO., LTD.
2-8.
