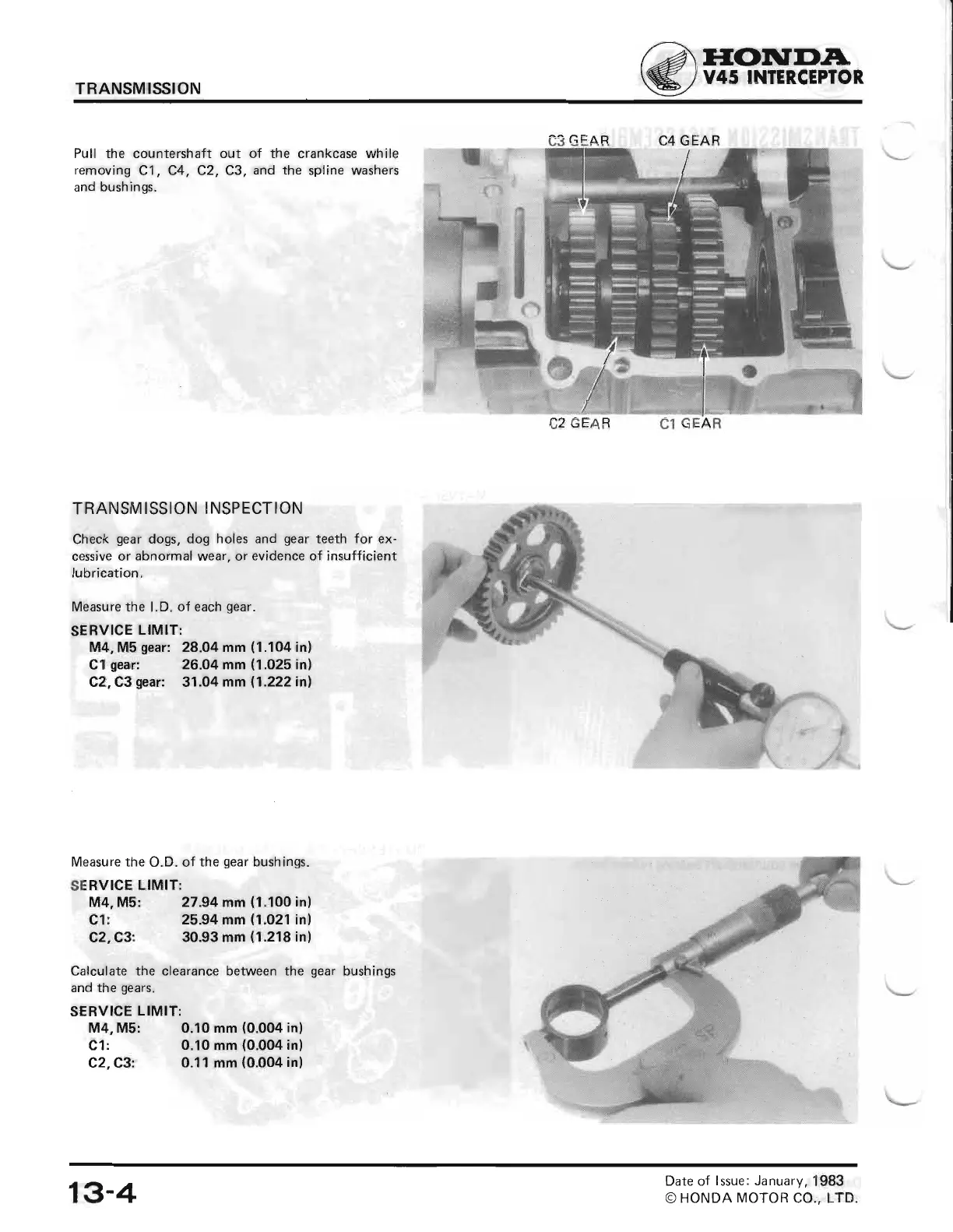

Honda InterceptorVF700F - VFR75001790003.PDF

IIOTVf,DA
V45 INTERCEPTOR
TRANSMISSION
Pull the countershaft out
removing
Cl
,
C4, C2, C3,
and bushings.
of the crankcase
while
and the
spline
washers
C3 GEAR C4
GEAR
C2 GEAR
TRANSM ISSION
I NSPECTION
Check
gear
dogs, dog
holes
and
gear
teeth for ex-
cessive
or
abnormal
wear, or evidence of insufficient
lubrication.
Measure the l.D. of each
gear.
SERVICE
LIMIT:
M4, M5
gear:
28.04 mm
(1.104
in)
Cl
gear:
26.04 mm
(1.025
in)
C2, C3
gear:
31 .04 mm
11.222
inl
Measure the
O.D.
of the
gear
bushings.
SERVICE
LIMIT:
M4, M5: 27.94 mm
(1.100
in)
Cl:
25.94 mm
(1.021
in)
C2,C3t 30.93
mm
(1.218
in)
Calculate the clearance
between the
gear
bushings
and the
gears.
SERVICE
LIMIT:
M4, M5: 0.10 mm
(0.004
in)
Gl:
0.10
mm
(0.004
in)
C2,C3: 0.11
mm
(0.004
in)
13-4
Date
of
lssue: January, 1983
O
HONDA MOTOR CO.,
LTD.
