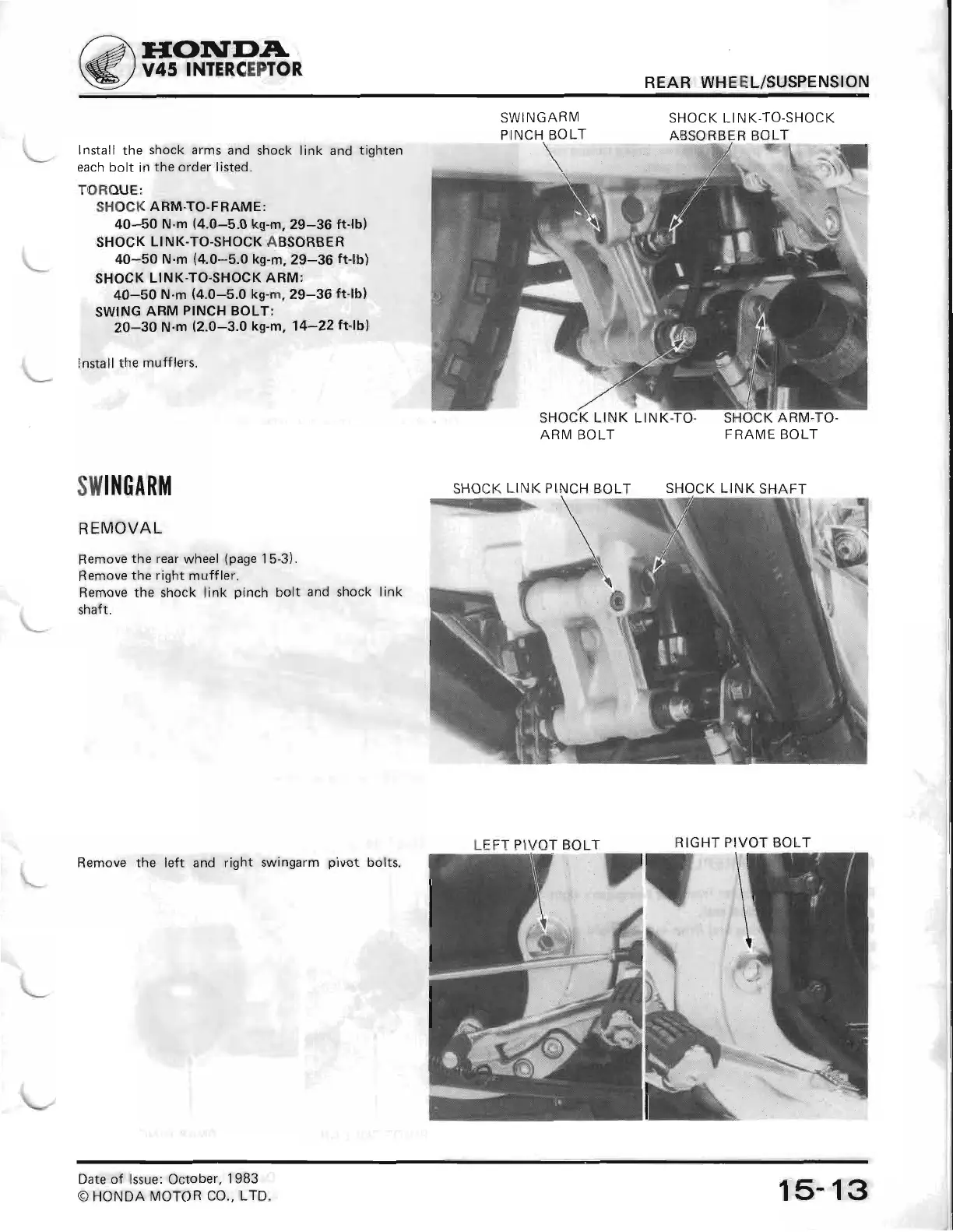

REAR WHEEL/SUSPENSION
SWINGARM
PINCH
BOLT
SHOCK LINK.TO-SHOCK
ABSORBER
BOLT
Install
the
shock arms and
shock link
and
tighten
each bolt
in the
order
listed.
TORQUE:
SHOCK
ARM-TO-FRAME:
40-50
N.m
(4.0-5.0
ks-m,
29-36 ft-lb)
SHOCK LIN
K.TO.SHOCK
ABSORBER
40-50
N.m
(4.0-5.0
ks-m,
29-36
ft-lbl
SHOCK LINK.TO-SHOCK
ARM:
40-50 N.m
{4.0-5.0
kg-m, 29-36 ft-lbl
SWING
ARM
PINCH
BOLT:
2O-3O N'm
(2.0-3.0
kg-m,
14-22 tt-lbl
Installthe mufflers.
Slt|NGARlY|
REMOVAL
Remove
the rear
wheel
(page
15-3).
Remove the right muff ler.
Remove the
shock
link
pinch
bolt and shock link
shaft.
Remove
the left and right swingarm
pivot
bolts.
SHOCK LINK PINCH
BOLT SHOCK
LINK
SHAFT
LEFT PIVOT BOLT
RIGHT PIVOT BOLT
SHOCK LINK LINK-
ARM BOLT
SHOCK
ARM-TO.
F RAME BOLT
15-
13
