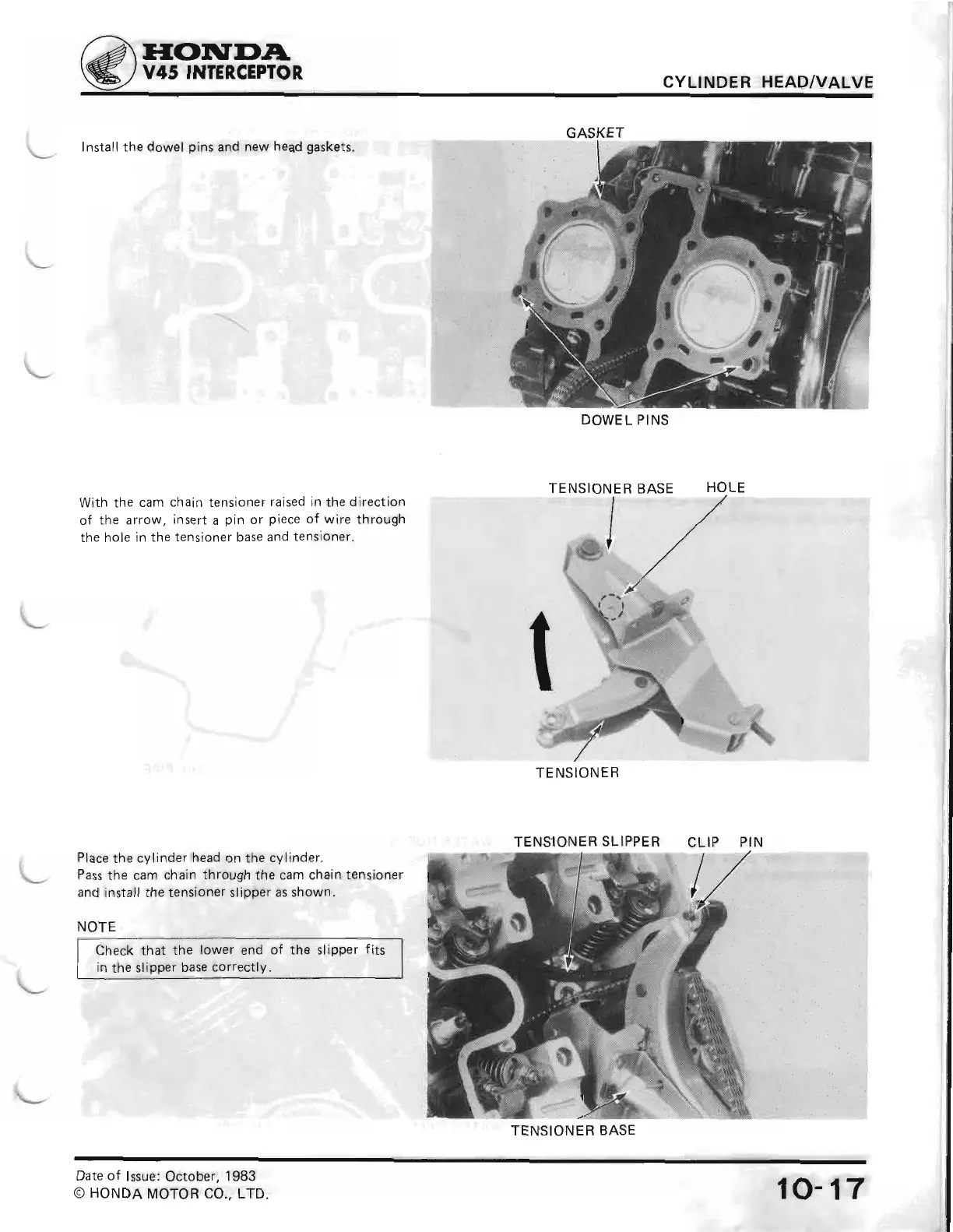

Install the
dowel
pins
and
new
head
gaskets.
With the
cam chain
tensioner
raised in the
direction
of the arrow,
insert a
pin
or
piece
of wire through
the hole
in the
tensioner
base
and
tensioner.
Place the
cVlinder
head on the
cylinder.
Pass the cam
chain
through
the cam
chain tensioner
and
install
the tensioner
slipper
as shown.
NOTE
CYLINDER
HEAD/VALVE
TENSIONER
BASE
M
"",.F%
TENSIONER
GASKET
DOWEL
PINS
Check
that
the
lower
end
o{
in the
slipper
base
correctlY.
TENS1ONER
SLIPPER
CLIP
PIN
TENSIONER
BASE
10' 17
Date
of
lssue: October.
1983
