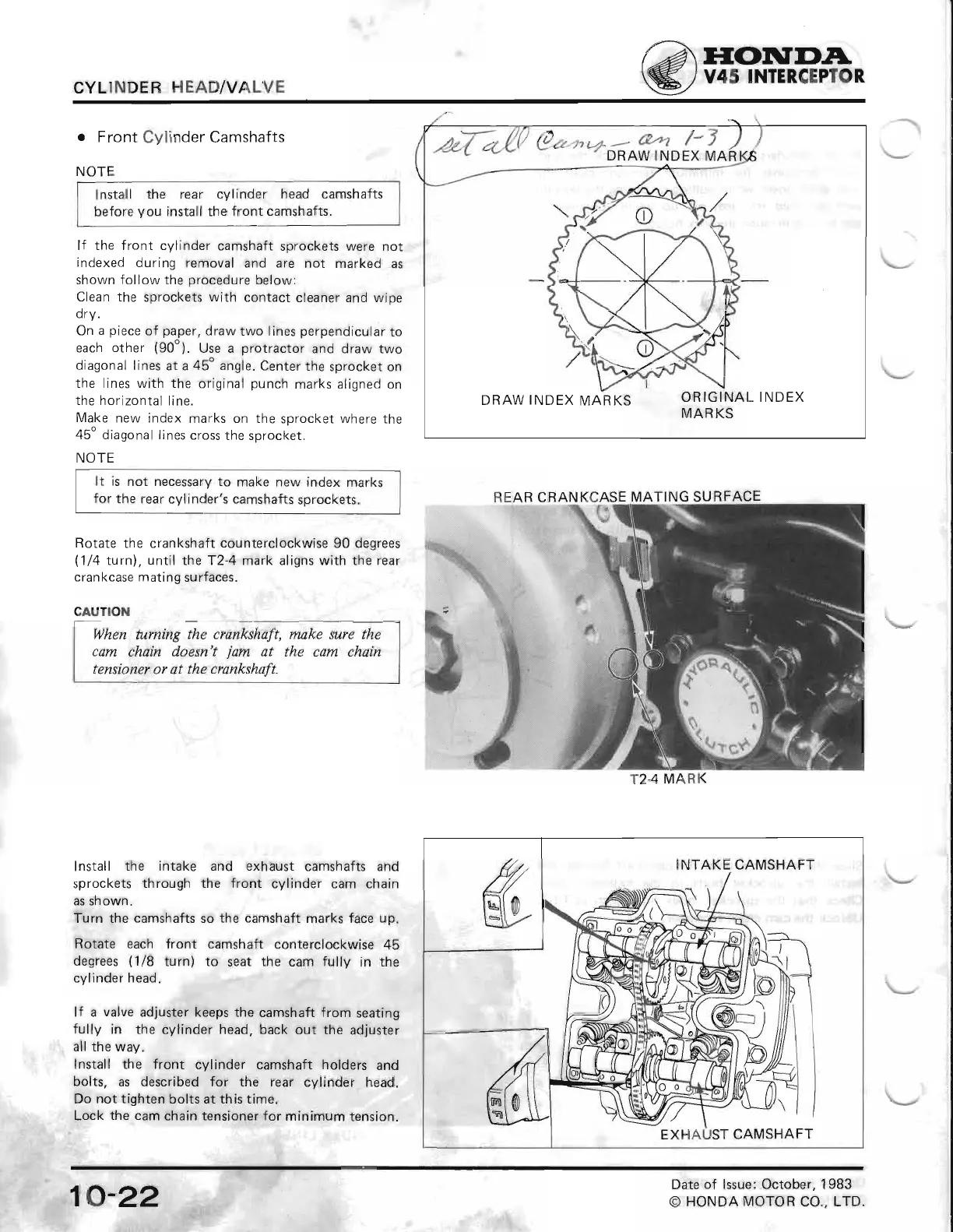

TIONTIDA
V45 INTER,CEPTOR
CYLINDER
HEAD/VALVE
o
Front
Cylinder Camshafts
NOTE
Install
the
rear cVlinder
head
camshafts
before
you
install
the
front
camshafts.
lf the front
cylinder camshaft
sprockets were
not
indexed during
removal
and are not
marked as
shown follow the
orocedure
below:
Clean
the
sprockets with
contact cleaner
and wipe
dry.
On a
piece
of
paper,
draw two lines
perpendicular
to
each other
(90').
Use a
protractor
and
draw
two
diagonal lines
at a 45o angle.
Center
the
sprocket on
the lines
with
the
original
punch
marks
aligned on
the horizontal line.
Make new index
marks on
the
sorocket
where
the
45o diagonal
lines cross
the sprocket.
NOTE
It is not necessary
to
make new index
marks
for the
rear
cylinder's camshafts
sprockets.
Rotate
the
crankshaft counterclockwise 90
degrees
(1/4
turnl
,
until the
T2-4
mark
aligns
with the rear
crankcase mating
su
rfaces.
CAUTION
lilhen
turning
the uankshaft, make sure the
cam
chain doesn't
jam
at
the cam chain
tensioner or at the
crankshaft.
lnstall the intake and exhaust camshafts
and
sprockets through the front cylinder
cam chain
as shown.
Turn the
camshafts
so
the camshaft
marks
face up.
Rotate
each front camshaft
conterclockwise
45
degrees
(1/8
turn) to
seat the cam fully
in the
cylinder head.
lf a valve
adjuster keeps the camshaft from
seating
fully
in the
cylinder head,
back out the adjuster
all
the
way.
Install the front
cylinder camshaft holders
and
bolts,
as described for
the rear
cylinder head.
Do
not
tighten bolts
at
this time,
Lock the cam
chain tensioner for minimum
tension.
REAR CRANKCASE
MATING SURFACE
zt7-"t/t
0t"",4,
-
offK'
{;l ^
DRAW INDEX
MARKS
ORIGINAL
INDEX
MARKS
'titj
T2.4
MARK
INTAKE
CAMSHAFT
EXHAUST
CAMSHAFT
1o,-22
iri
Date of lssue: October,
1983
O
HONDA MOTOR CO.. LTD.
