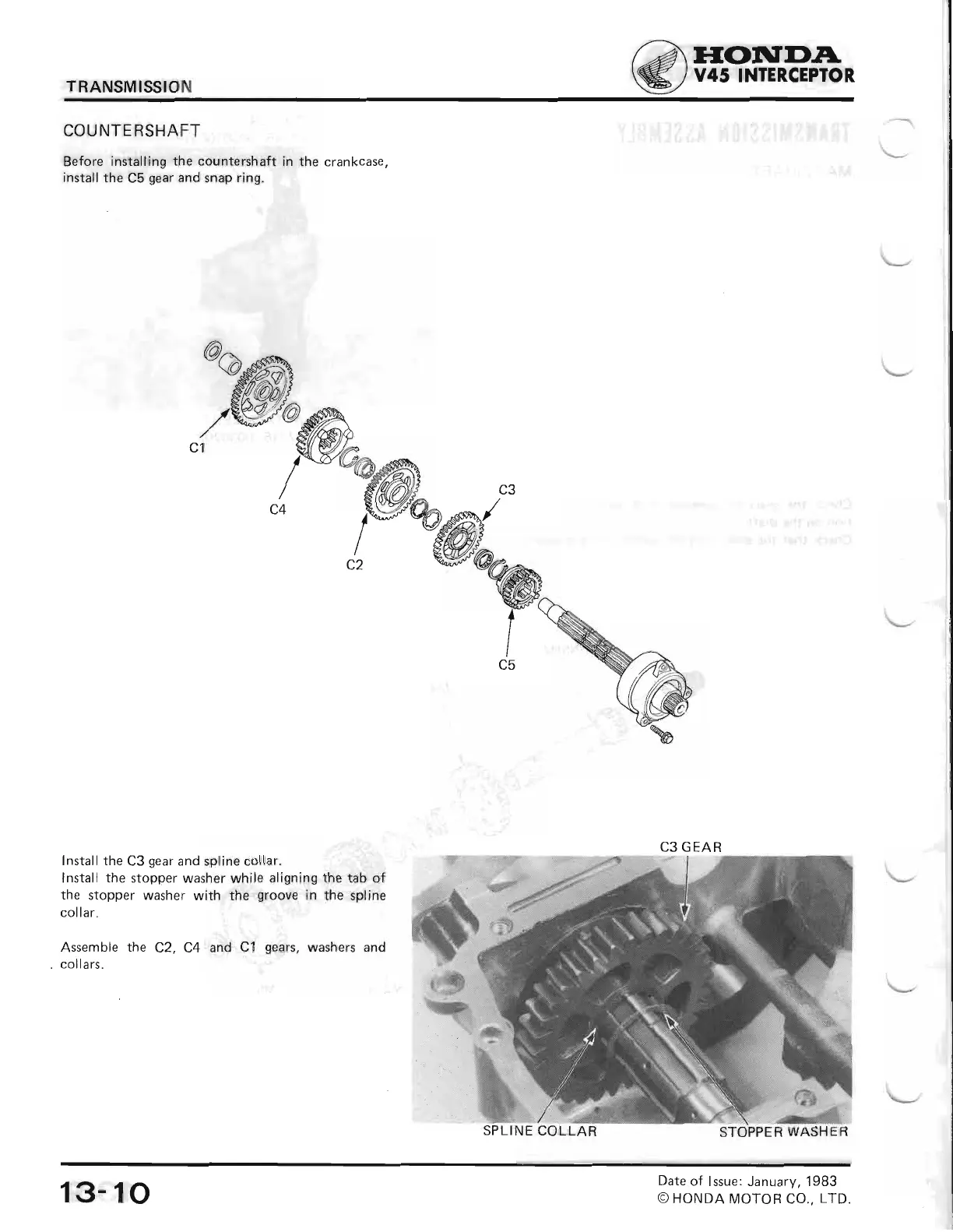

INTERCEPTOR
TRANSMISSION
COUNTERSHAFT
Before
installing
the
countershaft in
the crankcase,
install
the
C5
gear
and snap ring.
"7w;,
Install
the
C3
gear
and spline collar.
Install the
stopper washer while
aligning the
tab of
the stopper washer
with
the
groove
in
the spline
collar.
Assemble
the
C2, C4 and C1
gears,
washers
and
col
I
ars.
8!i,r:lxr::rij nffi:e
STOPPER
WASHER
SPLINE
COLLAR
13-
10
