Honda InterceptorVF700F - VFR7500167.PDF

IIONTf,DA
V45 INTERCEPTOR

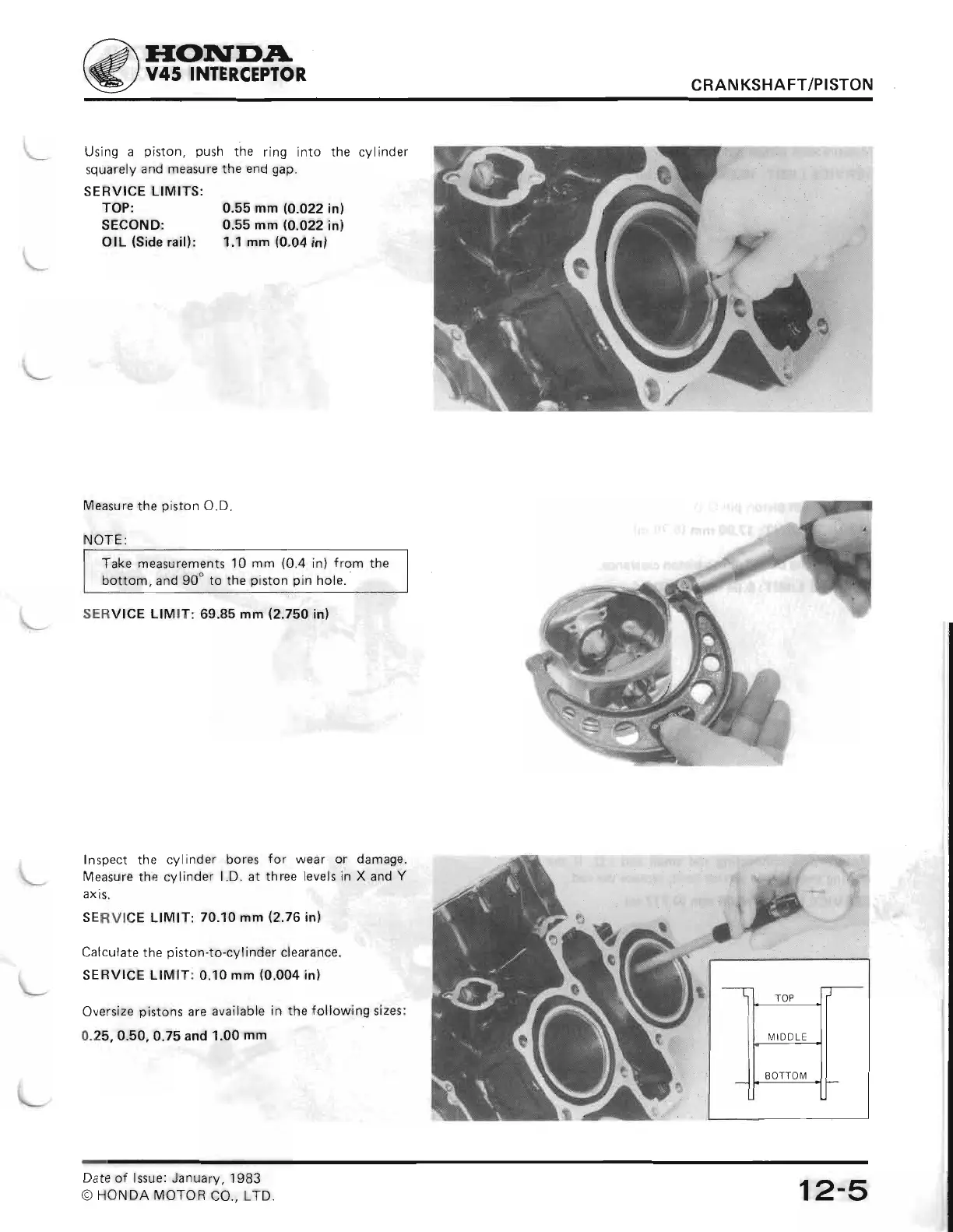

CRANKSHAFT/PISTON
Using a
piston, push
the
ring into
the cylinder
squarely
and measure
the end
gap.
SERVICE
LIMITS:
TOP:
SECOND:
0.55
mm
(0.022
in)
0.55 mm
(0.022
in)
OIL
(Side
rail):
1.1 mm
{0.04
in}
Measure
the
piston
O.D.
NOTE:
Take measurements 10
mm
(0.4
in)
from
the
bottom, and 90" to the
piston pin
hole.
SERVICE
LIMIT: 69.85 mm
(2.750
in)
Inspect
the cylinder bores
for
wear or
damage.
Measure
the cylinder
l.D.
at three
levels
in X
and
Y
ax
ts,
SERVf
CE LIMIT: 70.10
mm
12.76inl
Calculate
the
piston-to-cylinder
clearance.
SERVICE
LIMIT: 0.10
mm
(0.004
in)
Oversize
pistons
are
available
in
the following sizes:
0.25,
0.50, 0.75
and
1.00
mm
:-f
'
$+:
12-5
Date of lssue:
January, 1983
