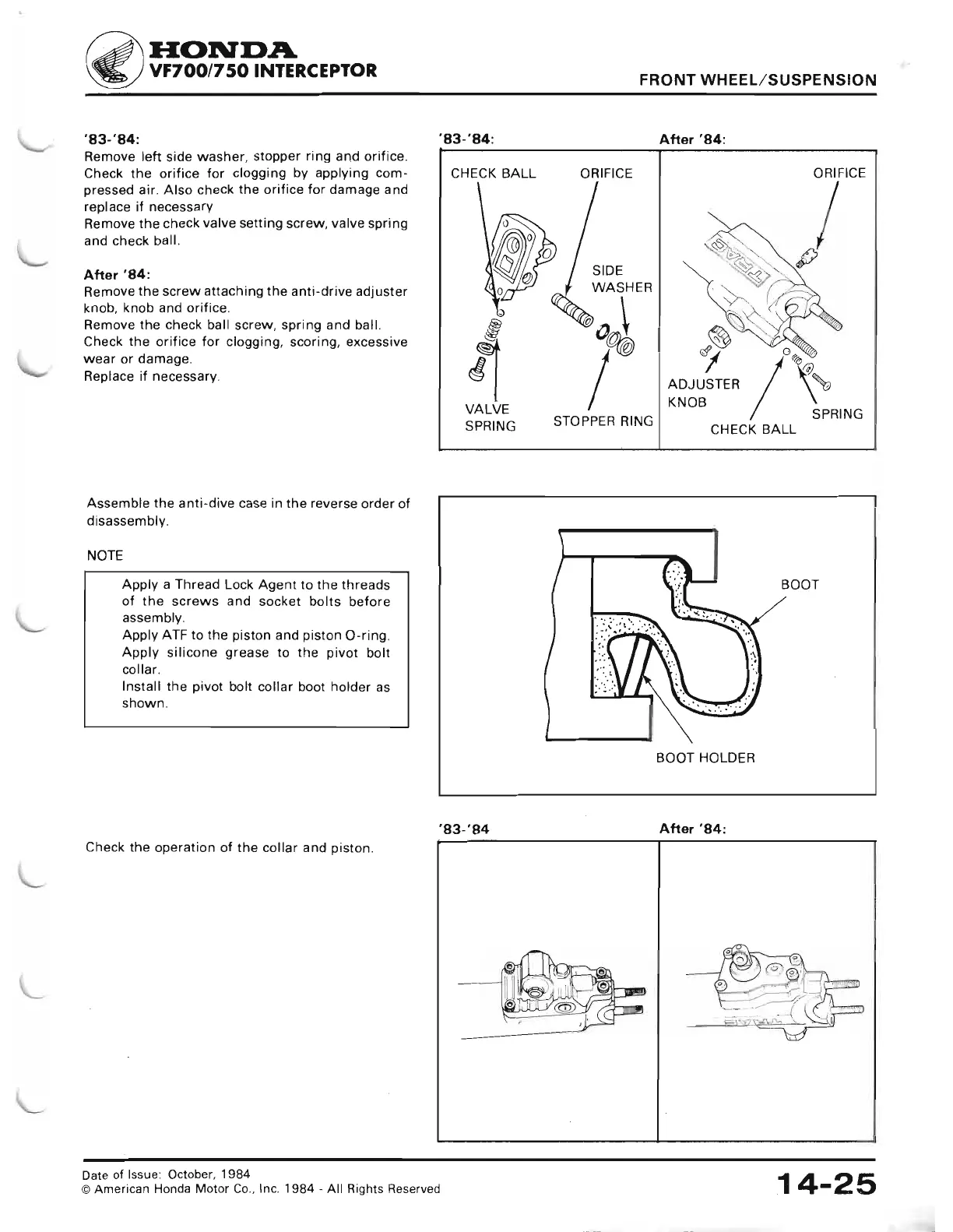

V}7OOI750 INTERCEPTOR
FRONT WHEEL,/SUSPENSION
'83-'84:
Remove
left
side washer, stopper ring and
orifice.
Check the orifice
for
clogging by applying com-
pressed
air. Also check the
orifice
for
damage and
replace if necessary
Remove
the
check valve
setting screw, valve spring
and check ball.
After'84:
Remove the
screw
attaching the
anti-drive adjuster
knob, knob and orifice.
Remove
the
check ball
screw, spring and ball.
Check the orifice
for
clogging, scoring, excessive
wear
or damage.
Replace if necessary.
Assemble the anti-dive case
in
the reverse
order of
disassembly.
NOTE
Apply a Thread Lock Agent
to the threads
of the screws and
socket bolts before
assembly.
Apply
ATF to the
piston
and
piston
O-ring,
Apply
silicone
grease
to the
pivot
bolt
collar.
Install
the
pivot
bolt
collar boot holder
as
shown.
Check the operation
of the collar and
piston.
'83-'84:
After'84:
BOOT HOLDER
'83-'84
After'84:
ffil %
bry
l#
CHECK BALL
ORIFICE
I
ORIFICE
SIDE
WASHER
,P
STOPPER
RING
CHECK BALL
is
14-25
Date
of
lssue:
October,
1984
@
