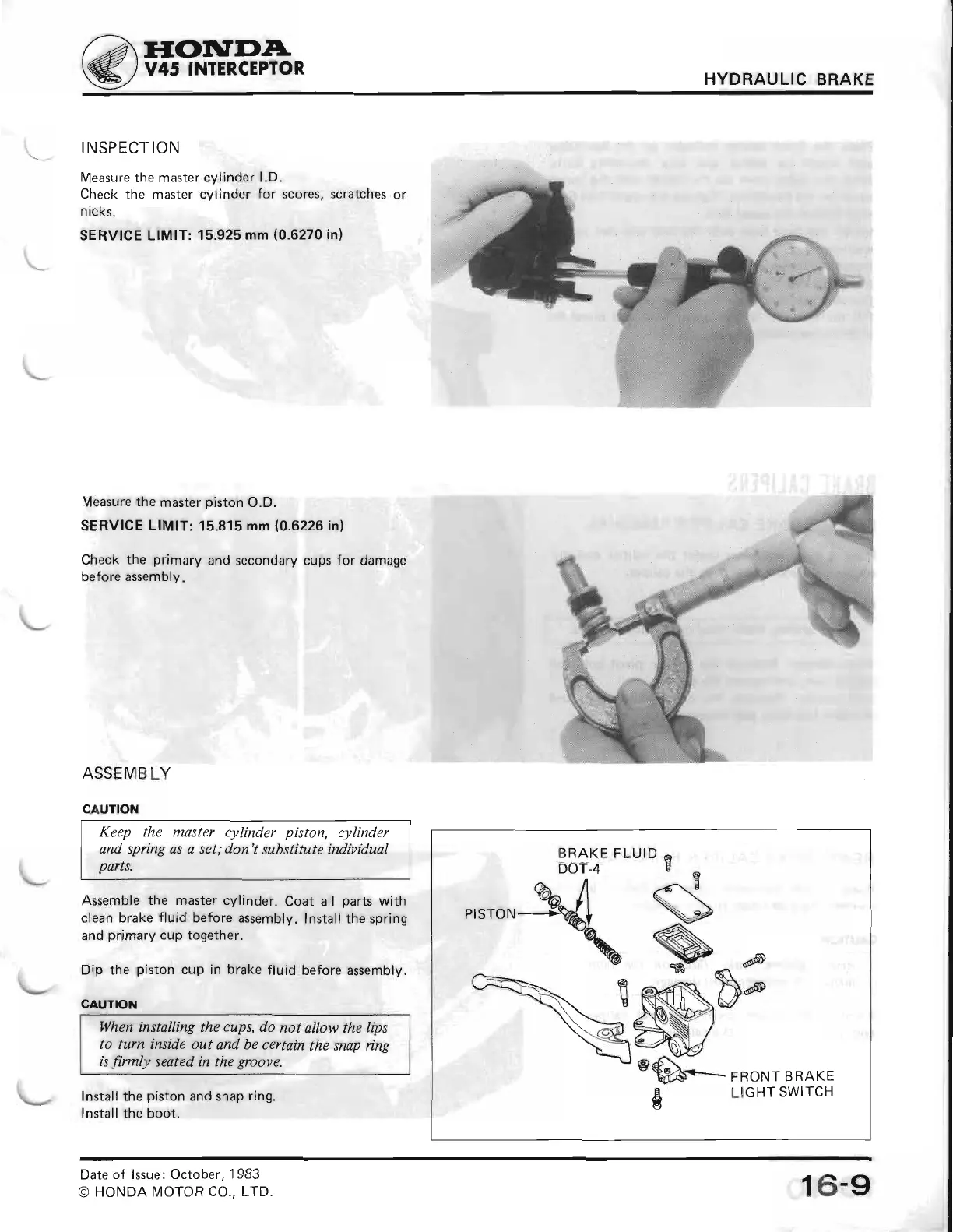

Honda InterceptorVF700F - VFR75001790076.PDF

IIOI|Tf,DA
V45
INTERCEPTOR,
HYDRAULIC
BRAKE
INSPECTION
Measure
the master cylinder
l.D.
Check
the master
cylinder
for
scores, scratches
or
nicks.
SERVICE
LIMIT:
15.525
mm
(0.6270
in)
Measure the master oiston O.D.
SERVICE
LIMIT: 15.815 mm
(0.6226
in)
Check
the
primary
and secondary
cups
for
damage
before
assembly.
ASSEMB LY
CAUTION
Keep the master cylinder
piston,
cylinder
and spring as a set; don't substitute
individual
parts.
Assemble the
master cylinder.
Coat all
parts
with
clean
brake
fluid
before assembly. Install the
spring
and
primary
cup
together.
Dip the
piston
cup in brake
fluid
before assembly.
CAUTION
l,lhen installing
the
cups, do not allow the lips
to turn inside
out and be certain
the snap ing
is
firmly
seated in
the
groove.
Install
the
piston
and snap
ring.
lnstall
the boot.
BRAKE FLUID
E
DOT-4
E
LIGHT
SWITCH
Date of lssue: October.1983
O
HONDA MOTOR CO.. LTD.
16-9
