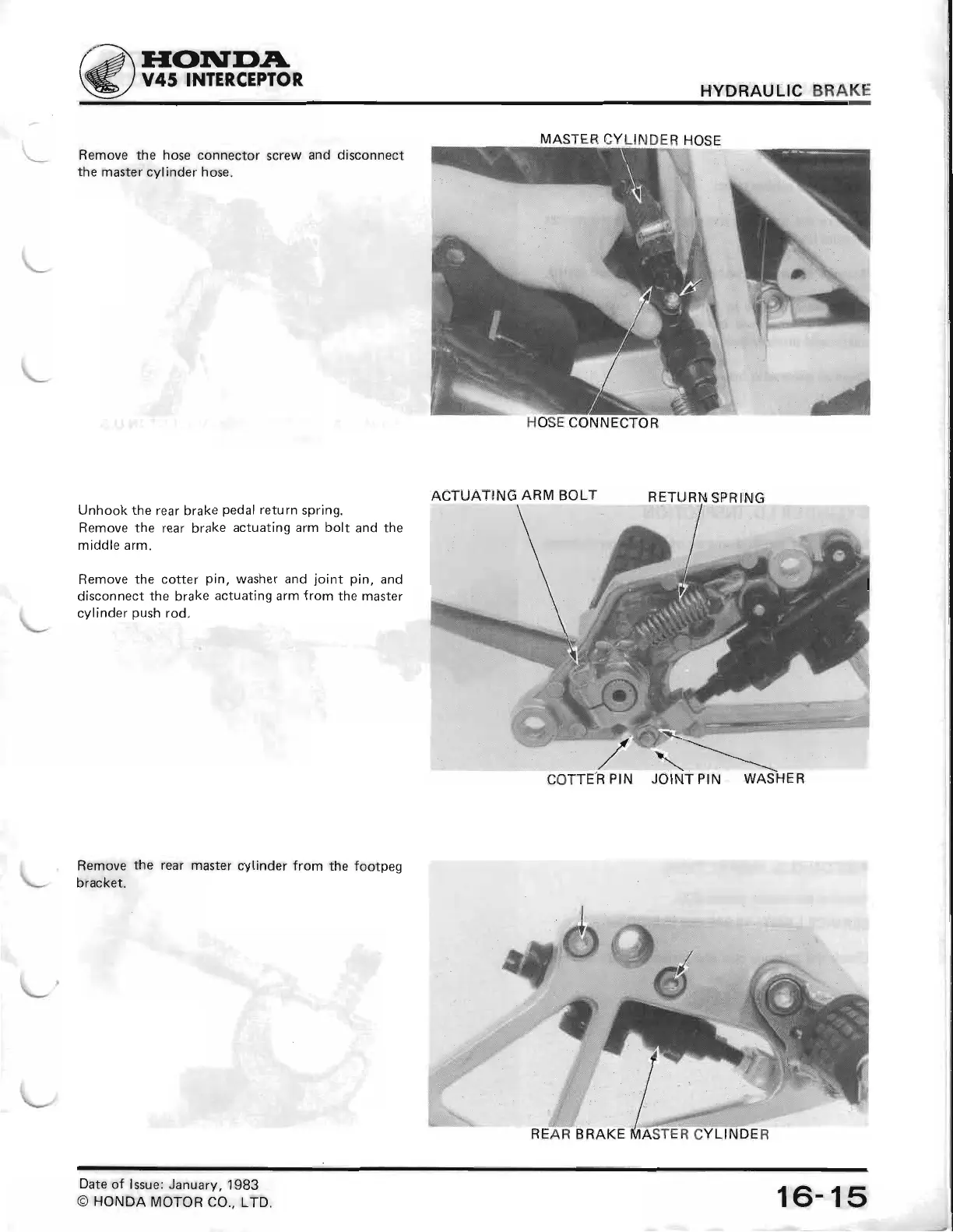

Remove the hose connector
screw and disconnect
the master
cylinder
hose.
Unhook the rear
brake
pedal
return
spring.
Remove the rear brake
actuating arm bolt
and the
middle arm.
Remove the cotter
pin,
washer
and
joint
pin,
and
disconnect
the brake actuating
arm
from
the master
cylinder
push
rod.
Remove
the rear master
cylinder from
the
footpeg
bracket.
HYDRAULIC
BRAKE
MASTER
CYLINDER
HOSE
ACTUATING ARM BOLT
SPR ING
COTTER
PIN
16- 15
