FUEL
SYSTEM
ITONTXDA
V45 INTER,CEPTOR

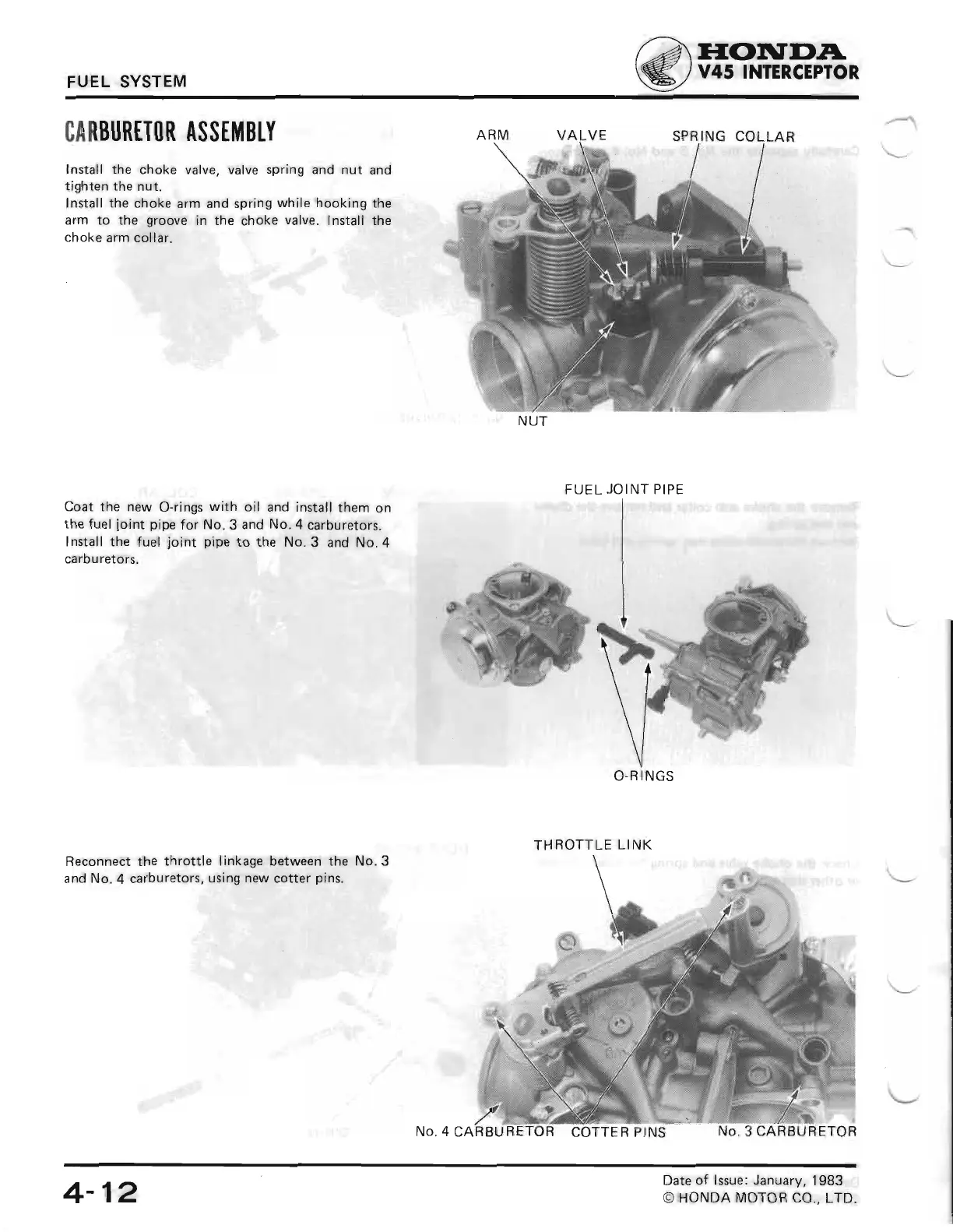

CARBURETOR
ASSEMBLY
Install the choke
valve, valve
spring
and nut
and
tighten
the nut.
Install the choke
arm and
spring while hooking
the
arm to the
groove
in the choke valve.
Install the
choke
arm collar.
Coat the new
O-rings with
oil
and install
them on
the fuel
joint
pipe
for
No.
3
and
No. 4
carburetors.
Install the
fuel
joint
pipe
to
the
No.3
and No.4
carbu
retors.
Reconnect the throttle linkage
between the
No.3
and No.4 carburetors,
using new cotter
pins.
FUEL
JOINT
PIPE
THROTTLE
LINK
SPRING COLLAR
NUT
O.RINGS
Pr',":,:l:
No.4
CARBURETO
wr:iffin:{iffi
COTTER
PINS
No.3
CARBURETOR
4-
12
