Honda InterceptorVF700F - VFR7500140.PDF

ITONf,DA
V45
INTERCEPTOR,
CYLINDER
HEAD/VALVE

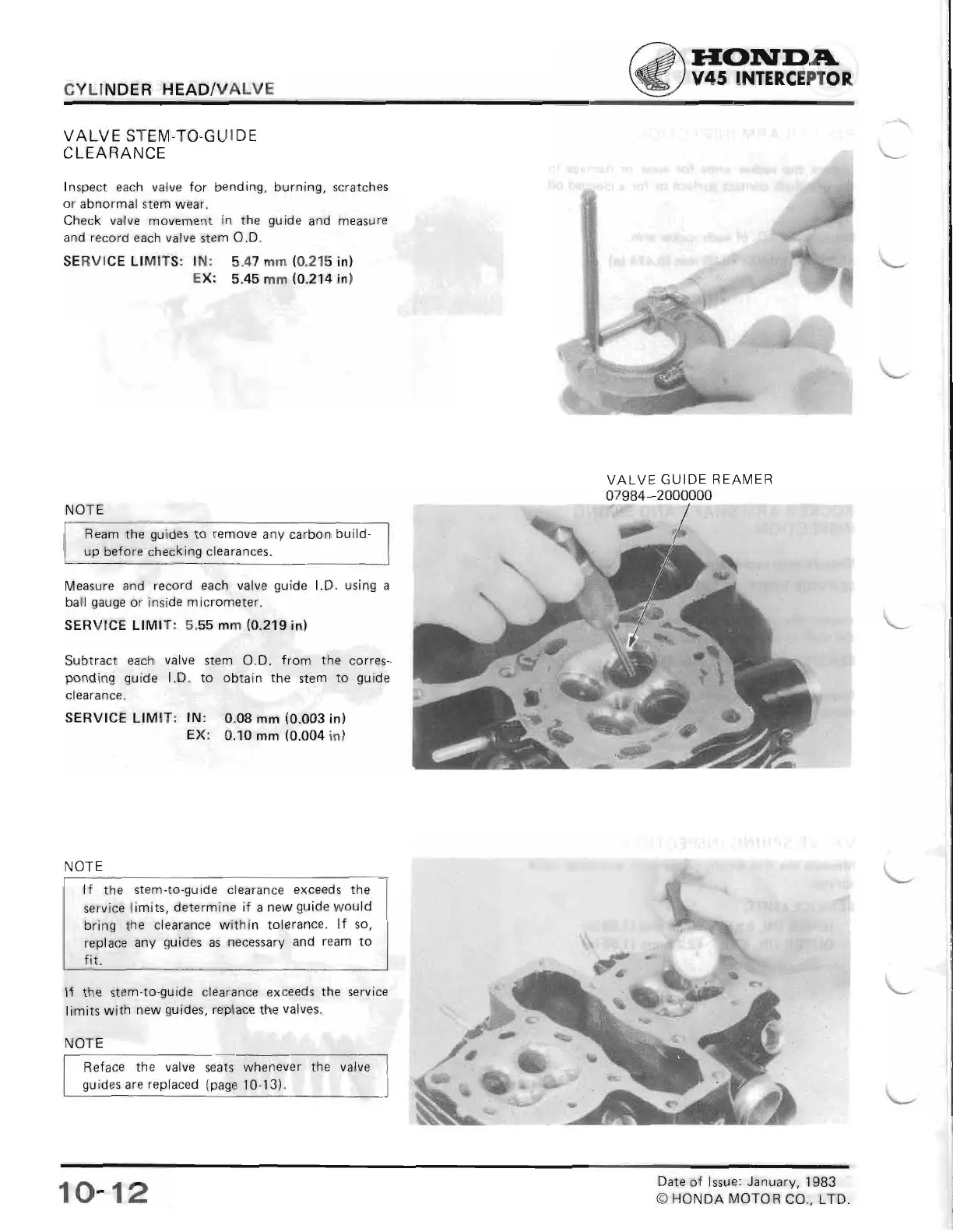

VALVE STEM-TO-GUIDE
CLEARANCE
Inspect each valve for
bending,
or
abnormal stem
wear.
Check
valve
movement
in the
and
record
each
valve
stem
O.D.
SERVICE
LIMITS: lN:
5.47 mm
(0.215
inl
EX:
5.45 mm
(0.214
in)
NOTE
Ream
the
guides
to remove
any carbon
build.
up
before checking
clearances.
Measure
and record
each valve
guide
LD. using
a
ball
gauge
or inside
micrometer.
SERVICE
LIMIT:
5.55
mm
(0.219
in)
Subtract
each
valve
stem
O.D.
from
the
corres-
ponding guide
LD.
to obtain
the
stem to
guide
clearance.
SERVICE
LIMIT:
lN:
0.08 mm
(0.003
in)
EX:
0.10
mm
(0.004
in)
lf
the stem-to-guide
clearance exceeds
the
service
limits
with
new
guides,
replace the valves.
NOTE
Reface
the valve
seats whenever
the
valve
guides
are
replaced
(page
10-13).
burning,
scratches
guide
and
measure
VALVE
GUIDE
REAMER
07984-2000000
NOTE
lf
the stem-to-guide
clearance exceeds
the
service
limits, determine if a
new
guide
would
bring the clearance within
tolerance. lf
so,
replace
any
guides
as necessary and
ream to
f
it.
10.
12
Date
of
lssue: January,
1983
O HONDA
MOTOR
CO.,
LTD.
