SWITCHES

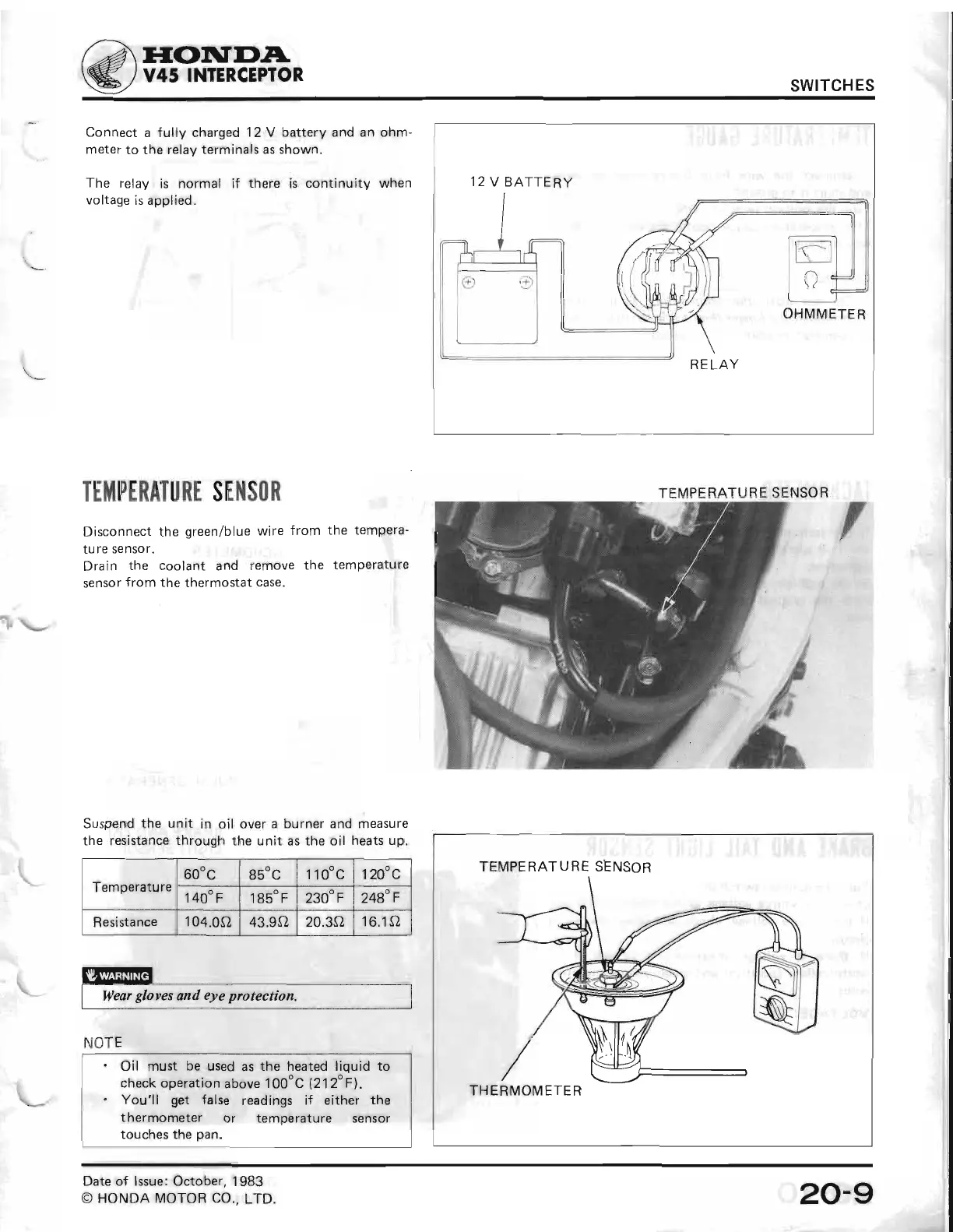

Connect
a
fully charged 12 V battery and an ohm-
meter
to the relay
terminals as shown.
The relay is
normal if there is continuity when
voltage
is applied.
TTI||PERATURE
SEI{SOR
Disconnect
the
green/blue wire
from the
tempera-
ture
sensor.
Drain
the
coolant
and
remove
the temperature
sensor
from the thermostat
case.
Suspend
the unit in oil over
a burner and measure
the resistance through
the unit as the
oil heats up.
12
V
BATTERY
OHMMETER
TEMPERATURE
SENSOR
THERMOMETER
Temperature
60'c
g50c
110'C
120"C
140"F
1950F
23oo
F
24go
F
Resistance
104.0s)
43.9Q 20.3s)
16.1Q
NOTE
.
Oil must
be
used
as
the heated liquid
to
check
operation
above 1
00"C
(2
1 2"
F)
.
.
You'll
get
false readings if either
the
t hermometer or temperature sensor
touches the
pan.
20.9
..../
Date of lssue: October,
1983
