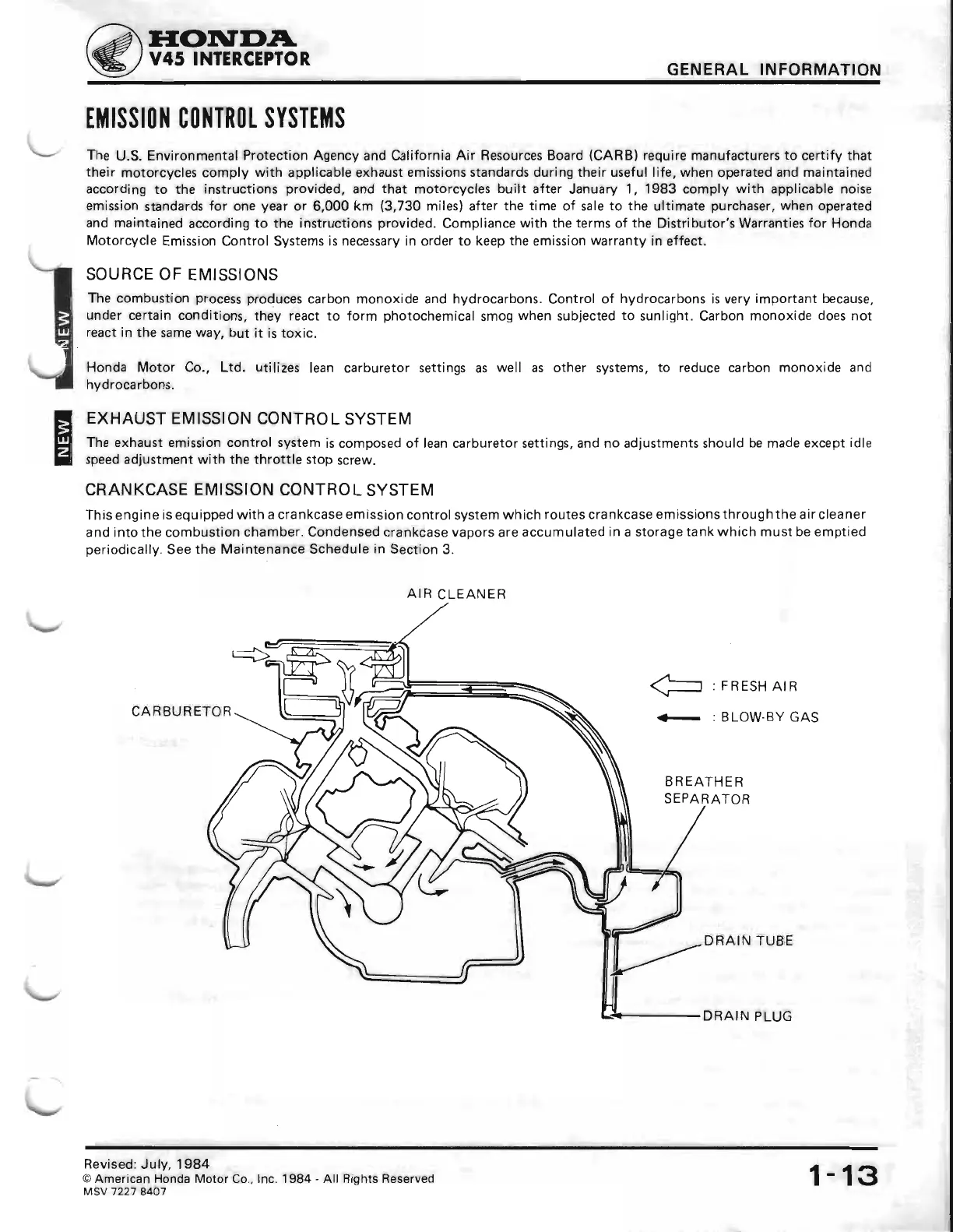

ITOilTf,DA
V45 INTER,CEPTOR
GENERAL INFORMATION
tl'|rssr0r{ c0ilTR0r sYsTEMs
The U.S. Environmental
Protection Agency and California Air Resources Board
(CARB)
require manufacturers to certify that
their motorcycles comply
with applicable
exhaust
emissions standards during
their
useful
life,
when operated and maintained
according
to the instructions
provided,
and
that
motorcycles
built after
January
1, 1983
comply
with applicable noise
emission standards
for
one
year
or 6,000
km
(3,730
miles) after the time of
sale
to the
ultimate
purchaser,
when
operated
and maintained according
to
the
instructions
provided.
Compliance
with the terms
of
the
Distributor's Warranties
for Honda
Motorcycle Emission
Control
Systems
is
necessary
in
order to
keep
the emission
warranty in
effect.
SOURCE OF
EMISSIONS
The combustion
process
produces
carbon monoxide and
hydrocarbons. Control of hydrocarbons is very important because,
under certain
conditions,
they react
to
form
photochemical
smog
when subjected
to
sunlight. Carbon
monoxide does not
react in
the same
way, but it is toxic.
Honda Motor Co,, Ltd. utilizes
lean carburetor
settings
as well as other systems, to
reduce
carbon
monoxide and
hydrocarbons.
El
EXHAUST EMTSSTON
CONTROL SYSTEM
E
The exhaust emission
control system
is
composed of
lean
carburetor
settings, and no adjustments should be made except
idle
3
speed adjustment
with
the
throttle
stop screw.
CRANKCASE
EMISSION
CONTROL SYSTEM
This engine
is
equ
ipped with a crankcase
emission control system
which routes crankcase
emissions through the air cleaner
and
into the combustion
chamber. Condensed crankcase
vapors are accumulated
in a storage tank which
must
be emptied
periodically.
See the
Maintenance
Schedule
in
Section 3.
G=
: FRESH
AIR
CARBURETOR
<---
:
BLOW-BY GAS
BREATHER
SEPARATOR
DRAIN
TUBE
AIR
CLEANER
\-.
DRAIN
PLUG
1-13
Revised: July,
1984
@
American
Honda
Motor
Co.,
Inc. 1984
-
All Rights Reserved
MSV 7227 8407
