V45 INTERCEPTOR
CLUTCH SYSTEM
GTllTG]|

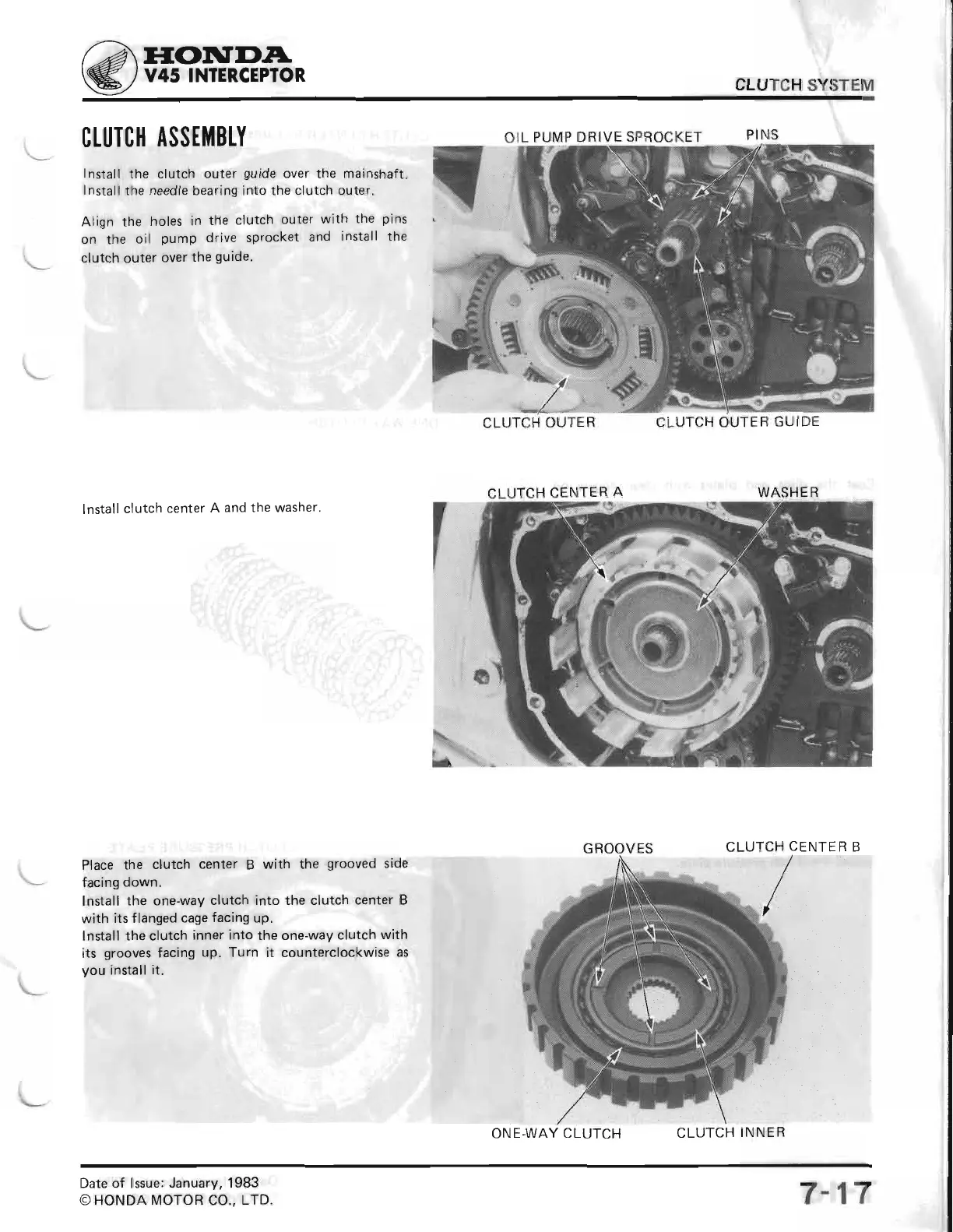

ASSEMBLY
Install
the clutch
outer
guide
over
the mainshaft.
Install the
needle
bearing
into the clutch outer.
Align
the
holes
in the
clutch
outer
with
the
pins
on
the
oil
pump
drive sprocket
and
install
the
clutch
outer
over
the
guide.
lnstall
clutch
center
A and
the washer'
Place the
clutch
center
B
with
the
grooved
side
\-
facing
down.
Install the one-way
clutch
into the
clutch center
B
with
its
flanged cage
facing uP.
Install
the clutch
inner
into the
one-way
clutch with
its
grooves
facing
up. Turn
it
counterclockwise
as
you
install
it.
CLUTCH
OUTER
CLUTCH
CENTER
A
CLUTCH
OUTER
GUIDE
WASHER
GROOVES
NTER B
OIL
PUMP DRIVE
SPROCKET
CLUTCH
ONE-WAY
CLUTCH
CLUTCH
INNER
7-
17
Date of
lssue: January, 1983
