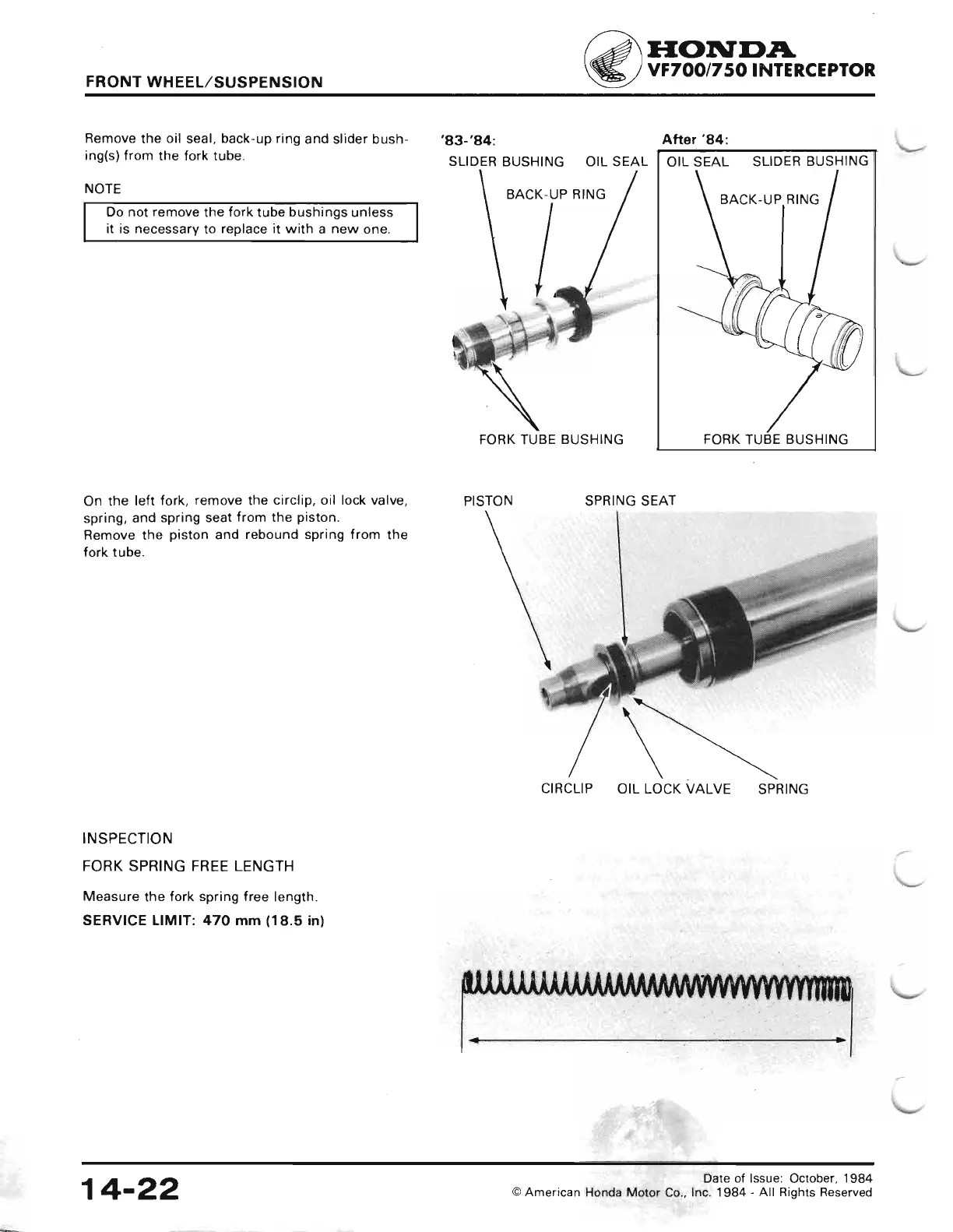

Remove
the oil seal, back-up ring
and slider bush-
ing(s) from
the fork tube.
NOTE
Do
not remove
the
fork
tube bush
it
is necessary to replace it with a new
one.
On
the
left
fork, remove the circlip, oil
lock
valve,
spring,
and spring
seat
from
the
piston.
Remove
the
piston
and
rebound
spring
from
the
fork tube.
INSPECTION
FORK
SPRING FREE LENGTH
Measure
the
fork
spring
free
length.
SERVICE LIMIT:
47O
mm
(18.5
in)
'83-'84:
SLIDER BUSHING
OIL SEAL
PISTON
After'84:
OIL SEAL
SLIDER
BUSHING
FORK TUBE BUSHING
SPRING SEAT
CIRCLIP
OIL
LOCK
VALVE
SPRING
