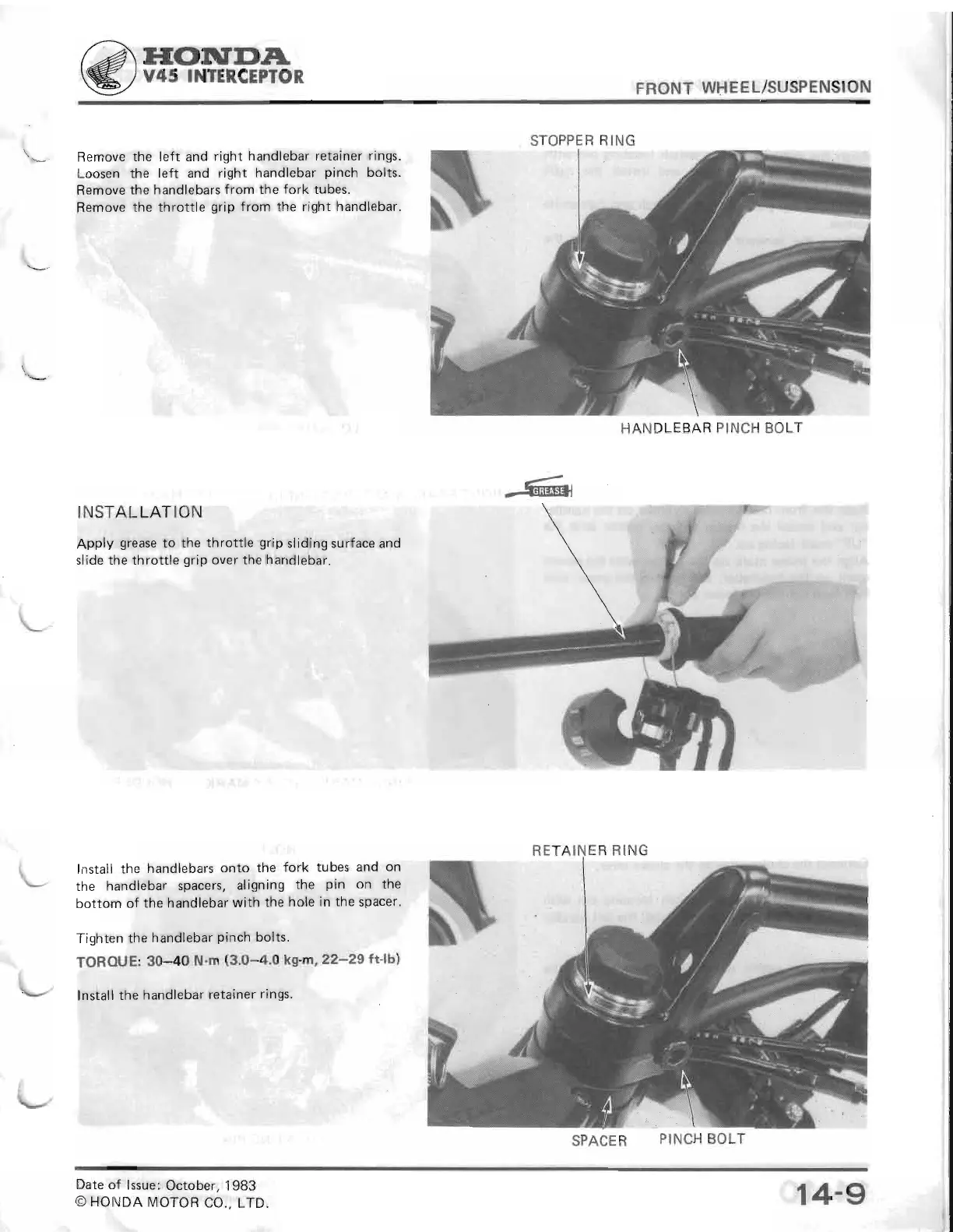

Honda InterceptorVF700F - VFR75001790020.PDF

ITONTf,DA
V45
INTER.CEPTOR.
FRONT
WHEEL/SUSPENSION
Remove
the
left
and
right
handlebar
retainer rings.
Loosen
the left and
right
handlebar
pinch
bolts.
Remove
the handlebars
from
the
fork tubes.
Remove
the throttle
grip
from the right
handlebar.
INSTALLATION
{pply
grease
to the throttle
grip
sliding
surface and
slide
the
throttle
grip
over the
handlebar.
lnstall
the
handlebars
onto
the
fork tubes
and
on
the
handlebar spacers.
aligning
the
pin
on
the
bottom
of the handlebar
with the
hole in
the spacer.
Tighten
the handlebar
pinch
bolts.
TORQUE:
30-40
N'm
(3.0-4.0
ks'm,22-29ft-lbl
Install
the
handlebar
retainer
rings.
STOPPER
RING
HANDLEBAR
PINCH
BOLT
RETAINER RING
PINCH BOLT
SPACER
14-9
Date
of lssue:
October, 1983
O
HONDA
MOTOR
CO.,
LTD.
