FRONT
WHEEL/SUSPENSION
IIOIITf,DA
V45
INTER,CEPTOR

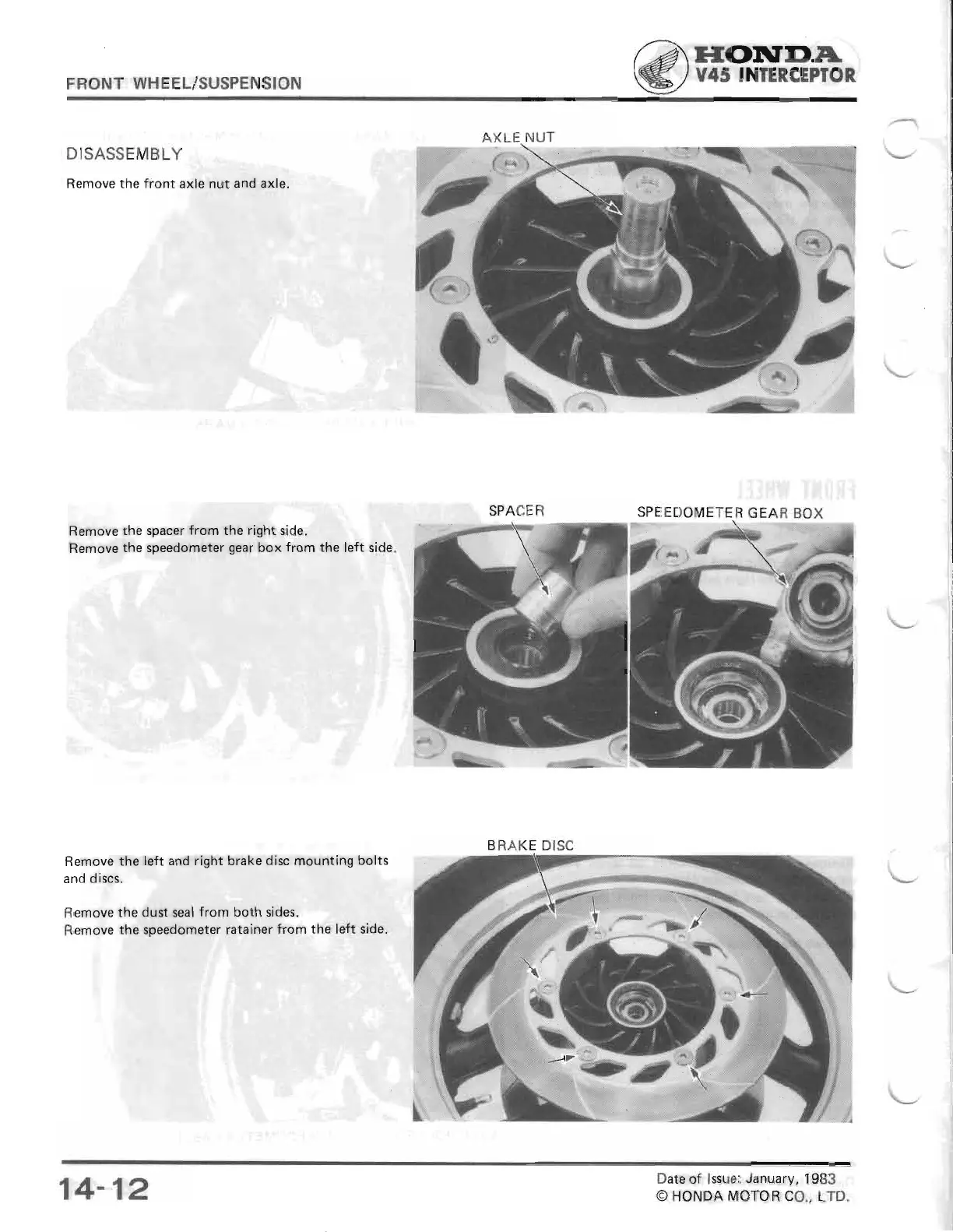

DISASSEMBLY
Remove
the front
axle nut
and axle.
Remove the spacer
from
the right side.
Remove the speedometer
gear
box
from
the
left
side.
Remove
the
left and right
brake
disc
mounting bolts
and discs.
Remove
the dust seal
from both sides,
Remove
the speedometer
ratainer
from the left side.
SPACER
SPEEDOMETER
GEAR BOX
BRAKE
DISC
14- 12
Date
of lssue: January,
1983
