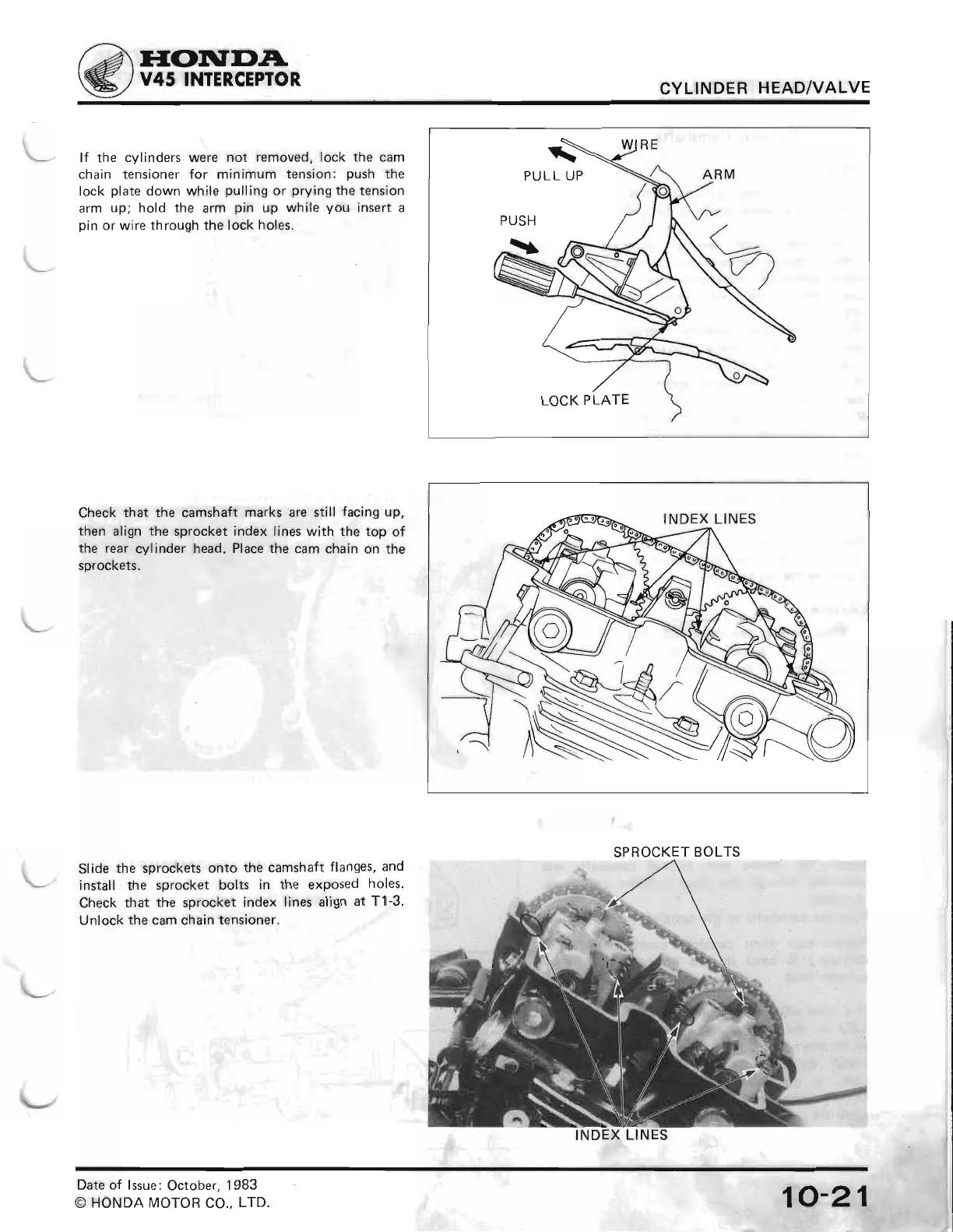

V45 INTERCEPTOR
CYLINDER
HEAD/VALVE
\--
lf
the cylinders were
not removed,
lock
the cam
chain tensioner
for minimum tension:
push
the
lock
plate
down while
pulling
or
prying
the tension
arm
up; hold the arm
pin
up while
you
insert a
pin
or wire through
the lock
holes.
Check
that the camshaft
marks are still
facing up,
then align the
sprocket index lines with the
top of
the rear
cylinder head. Place the cam
chain on the
sprockets,
INDEX LINES
Slide
the sprockets
onto
the camshaft
flanges, and
install the sprocket
bolts
in the exposed
holes.
Check
that tfre sprocket
index lines align
at
T1-3.
Unlock the cam
chain tensioner.
SPROCKET
BOLTS
INDEX
LI
1o.21
