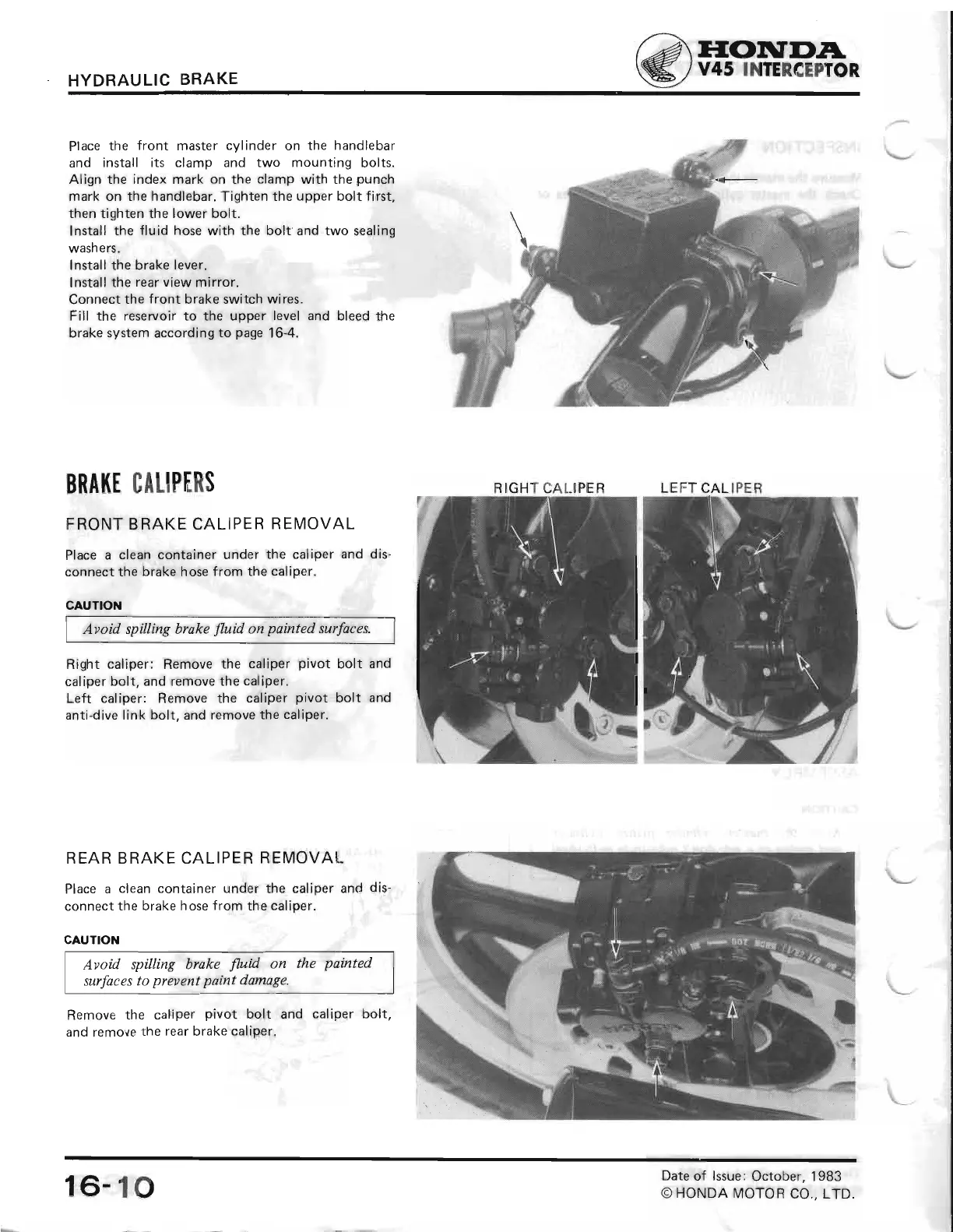

HYDRAULIC
BRAKE
Place
the
front master cylinder on the handlebar
and install its clamp and
two mounting
bolts.
Align
the index mark on the clamp with the
punch
mark
on the
handlebar.
Tighten
the upper bolt
first,
then tighten the
lower bolt.
Install the
fluid hose
with the
bolt
and
two
sealing
washers.
Install the brake lever.
Install the
rear view mirror.
Connect
the front brake switch wires.
Fill
the
reservoir
to the
upper level and bleed the
brake
system
according
to
page
16-4.
BRAI(E
CATIPERS
FRONT BRAKE CALIPER
REMOVAL
Place a
clean container
under the caliper
and dis-
connect
the brake hose
from
the
caliper.
cAuTtol{
Avoid
spilling brake
fluid
on
painted
surfaces.
Right caliper: Remove
the caliper
pivot
bolt and
caliper
bolt, and remove the
caliper.
Left caliper: Remove
the caliper
pivot
bolt and
anti-dive
link bolt,
and
remove the
caliper.
REAR BRAKE
CALIPER
REMOVAL
Place
a clean
container under the caliper and
dis-
connect
the brake
hose from
the caliper.
CAUT!ON
Avoid spilling
brake
fluid
on
the
painted
wrfaces
to
prevent paint
damage.
Remove the caliper
pivot
bolt and caliper bolt,
and
remove the
rear brake caliper.
RIGHT CALIPER
LEFT
CALIPER
16-
10
