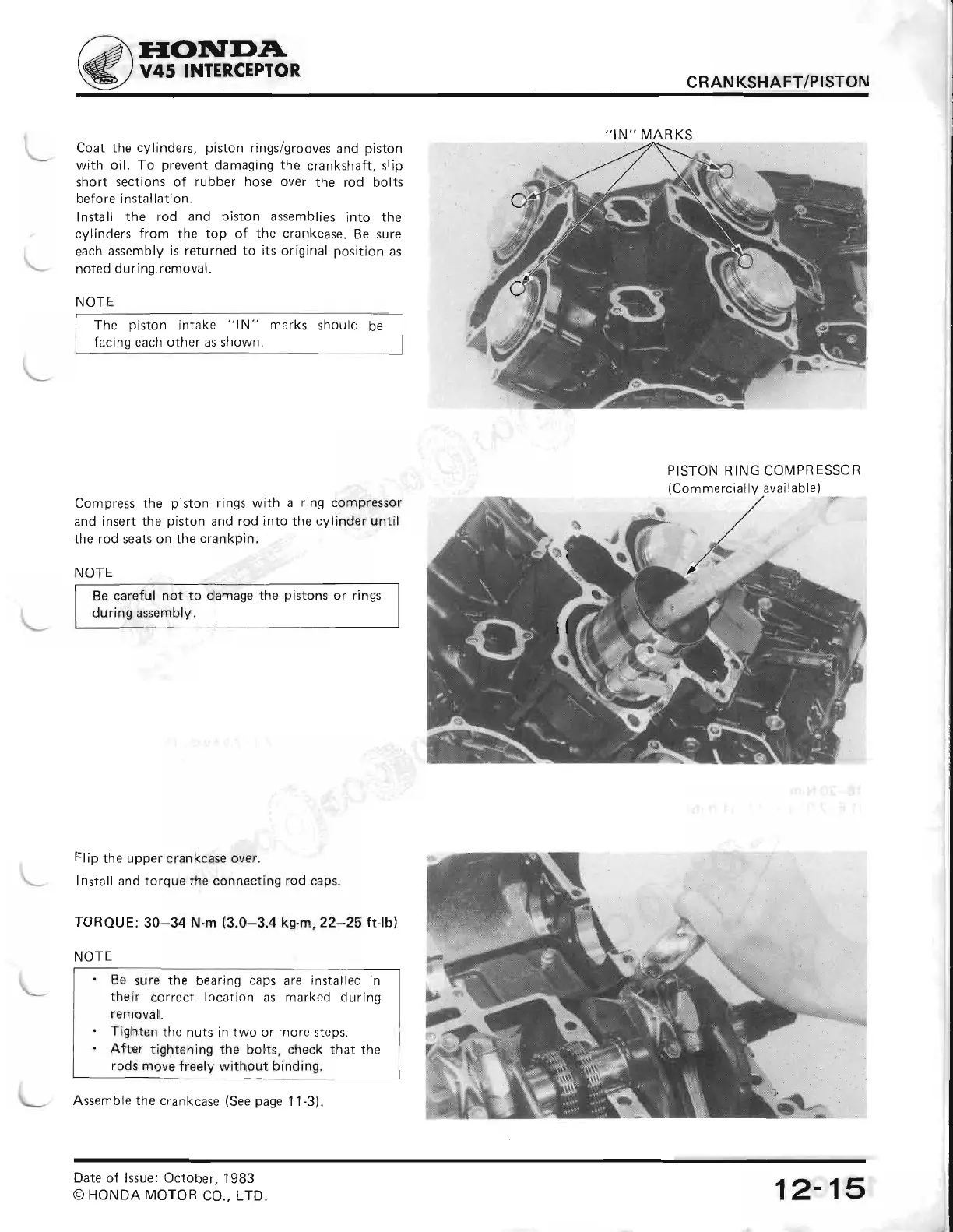

IIONTf,DA
V45 INTERGEPTOR,
Coat the
cylinders,
piston
rings/grooves and
piston
with
oil. To
prevent
damaging the crankshaft, slip
short
sections of rubber hose over
the rod bolts
before installation.
Install the rod
and
piston
assemblies into the
cylinders
from the top of
the crankcase.
Be
sure
each
assembly
is returned
to its original
position
as
noted
during.removal.
NOTE
The
piston
intake
"lN"
marks
should be
facing
each other as shown.
Compress the
piston
rings with a
ring
compressor
and insert
the
piston
and
rod into the cylinder until
the rod seats
on the crankpin.
NOTE
Be
careful
not to damage the
pistons
or rings
during assembly.
Flip
the upper crankcase
over.
Install and
torque the connecting
rod
caps.
TOROUE:
30-34 N.m
(3.0-3.4
ks-m,22-25ft-lbl
NOTE
.
Be sure the bearing caps are installed in
their
correct
location as marked during
removal.
'
Tighten
the
nuts in
two
or
more steps.
.
After tightening the bolts,
check
that
the
rods move
freely without binding.
Assemble the crankcase
(See
page
11-3).
CRANKSHAFT/PISTON
,,IN"
MARKS
PISTON
RING COMPRESSOR
(Commercially
available)
12-
15
