180

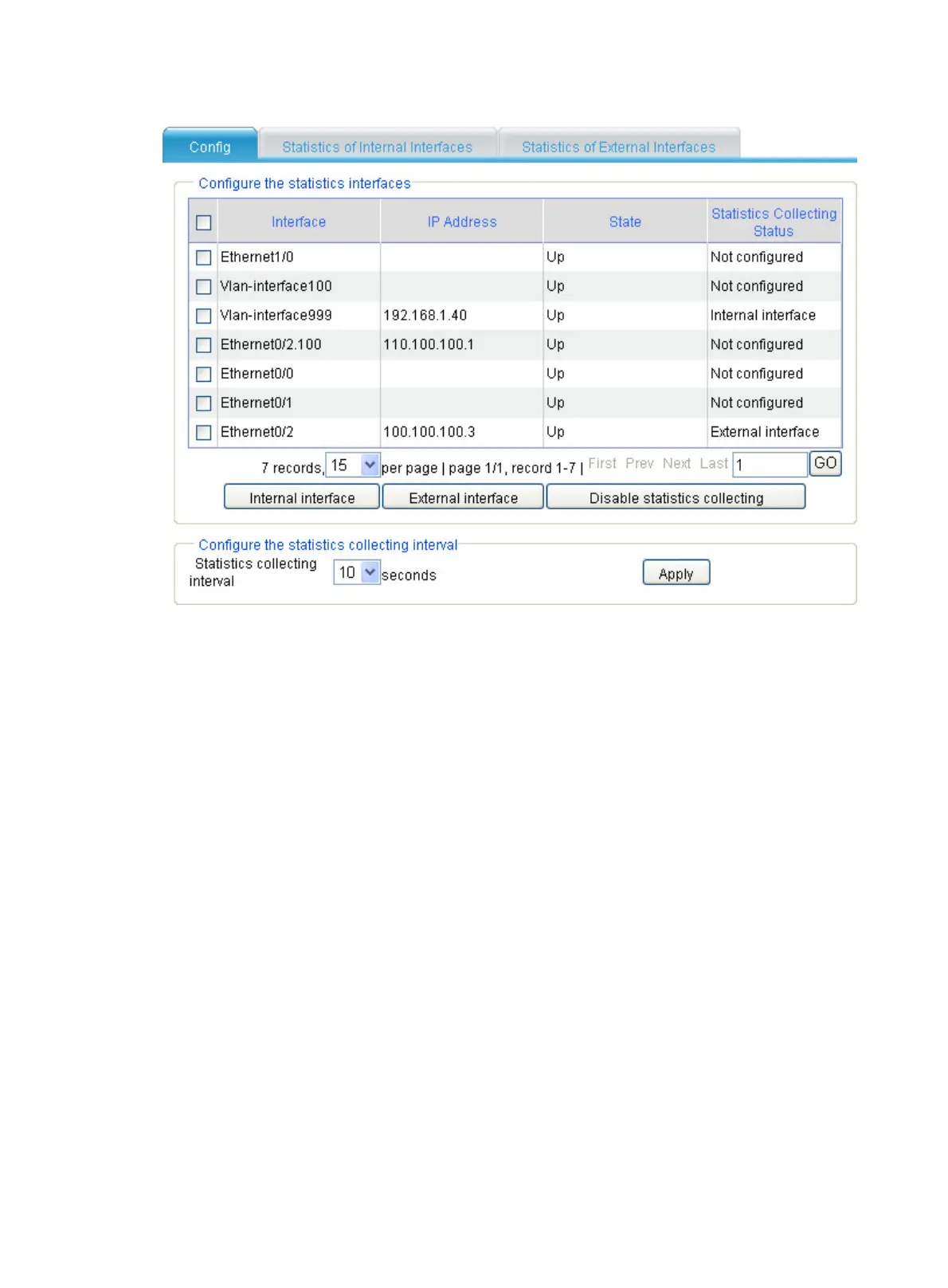

Figure 191 Traffic ordering configuration page

Specifying the traffic ordering mode

Select Advanced > Traffic Ordering from the navigation tree. You can view and configure the

interface for collecting traffic statistics in the upper part of the page.

Select one or more boxes in front of the interfaces in the list:

• Click Internal interface to set the interfaces as the internal interfaces to collect traffic statistics.

• Click External interface to set the interfaces as the external interfaces to collect traffic

statistics.

• Click Disable statistics collecting to disable the interfaces from collecting traffic statistics.

Displaying internal interface traffic ordering

statistics

Select Advanced > Traffic Ordering from the navigation tree and click the Statistics of Internal

Interfaces tab.

By default, the system arranges the entries in descending order of the total traffic statistics, and

displays the top five entries.

Select one item from the Arrange in list, enter a number in the Number of entries displayed field,

and then click Refresh to display the list as needed.
