92

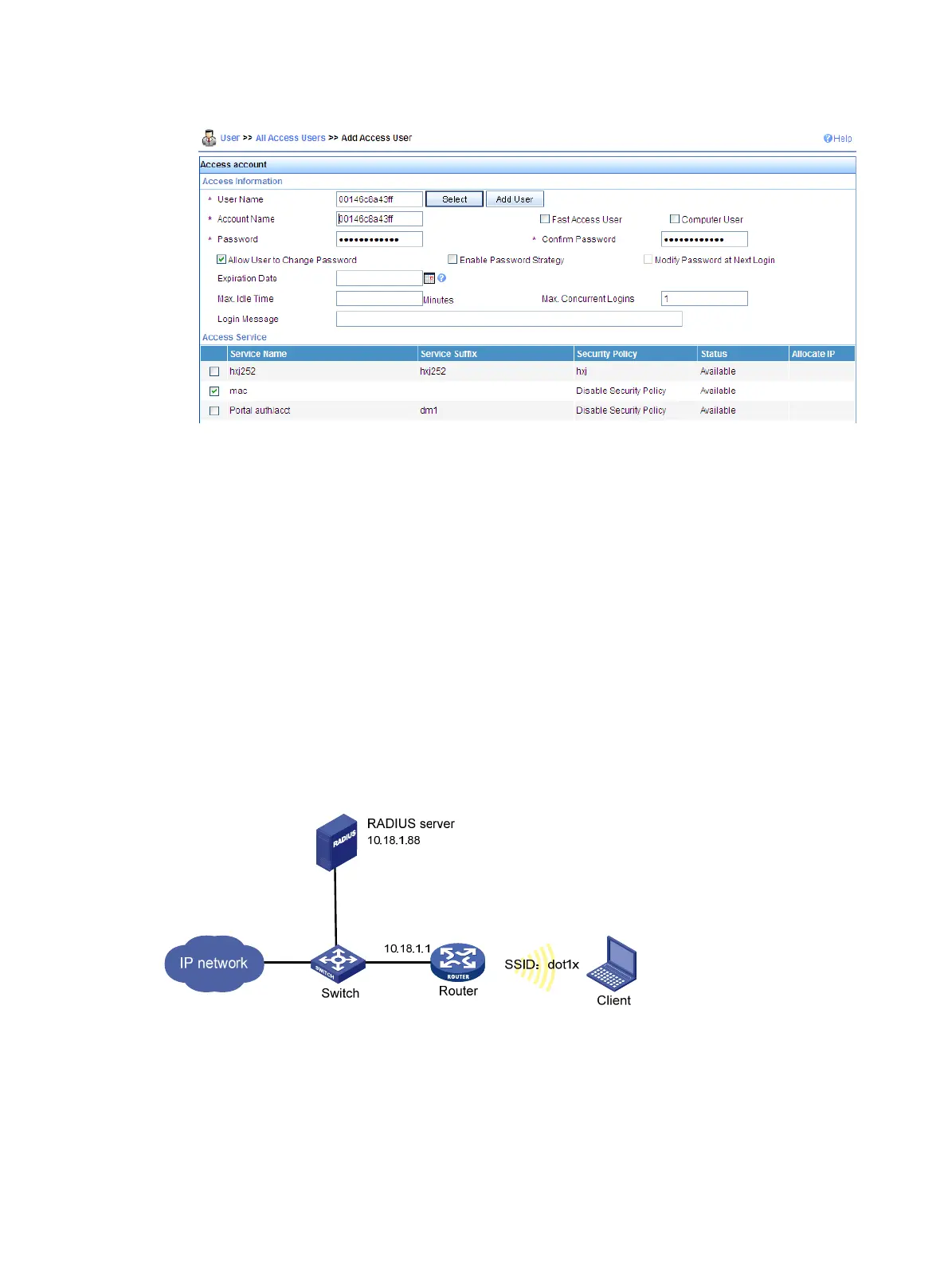

Figure 80 Adding an account
Verifying the configuration
During authentication, the user does not need to input the username or password. After passing
MAC authentication, the client can associate with the device and access the WLAN. You can view
the online clients by selecting Interface Setup > Wireless > Summary from the navigation tree and
then clicking the Client tab.
Remote 802.1X authentication configuration example
Network requirements
Use IMC as a RADIUS server for AAA. On the RADIUS server, configure the client’s username as
user, password as dot1x, and shared key as expert. The IP address of the RADIUS server is
10.18.1.88.
On the device, configure the shared key as expert, and configure the device to remove the domain
name of a username before sending it to the RADIUS server. The IP address of the device is
10.18.1.1.
Figure 81 Network diagram
Configuring the router
1. Configure wireless service:
a. Select Interface Setup > Wireless > Access Service from the navigation tree.
b. Click Add.
c. On the page that appears, select radio unit 1, set the service name as dot1x, select the
wireless service type crypto, and click Apply.
