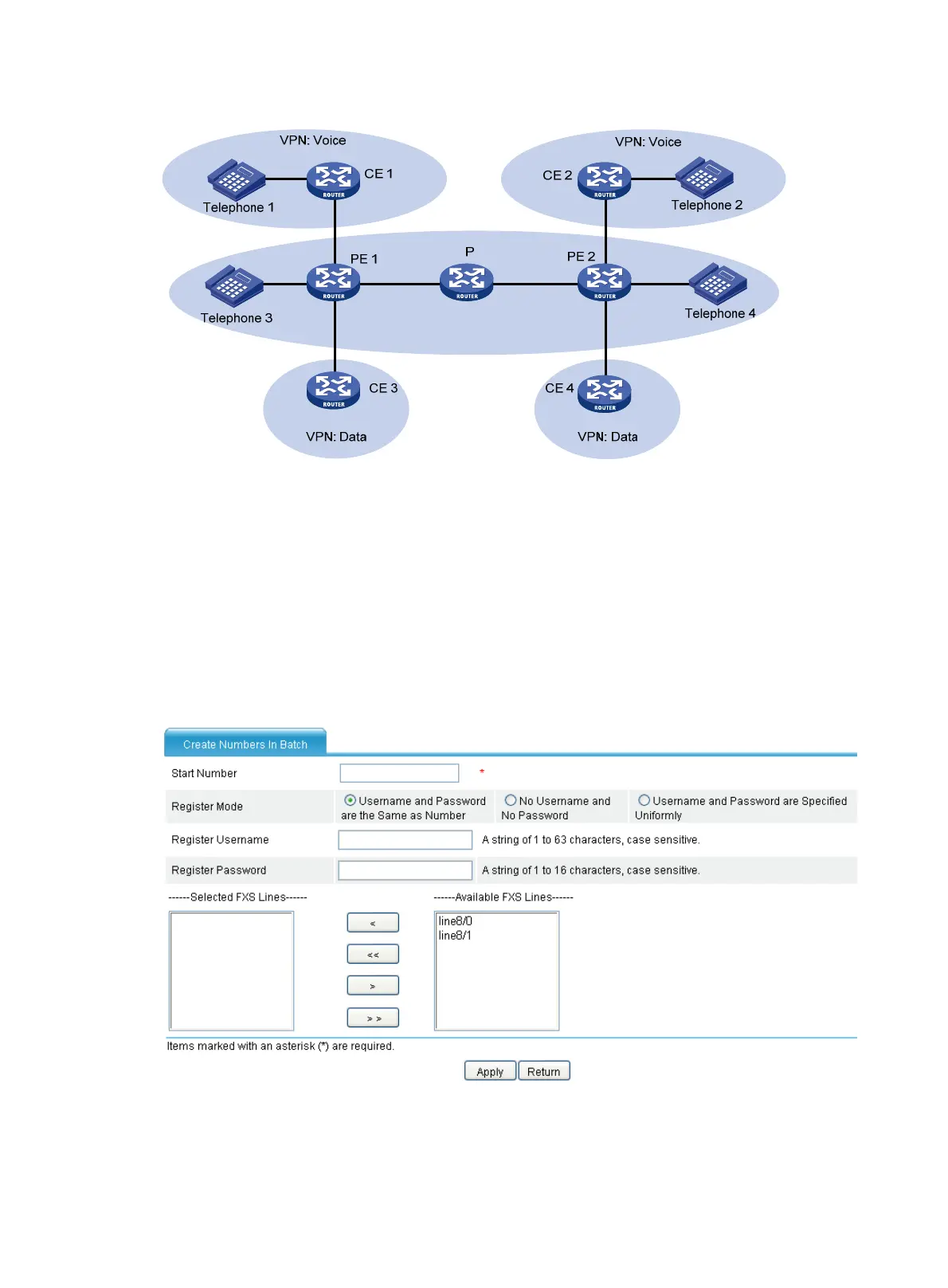

Figure 847 VRF-aware SIP

Batch configuration

Local number

Creating numbers in batch

Select Voice Management > Advanced Configuration > Batch Configuration from the

navigation tree, and then click the Create Numbers in Batch link in the Local Number area to

access the page for creating numbers in batch, as shown in Figure 848.

Figure 848

Crea

ting numbers in batch
