Wireless QoS configuration example
CAC service configuration example
Network requirements
As shown in Figure 122, an AP with WMM enabled accesses the Ethernet. Enable CAC for the
AC-VO and AC-VI queues of the clients of the fat AP. Use the user number-based admission policy
to limit the number of access users to 10, so that the clients using high-priority queues (including the
AC-VO and AC-VI queues) can be guaranteed of enough bandwidth.

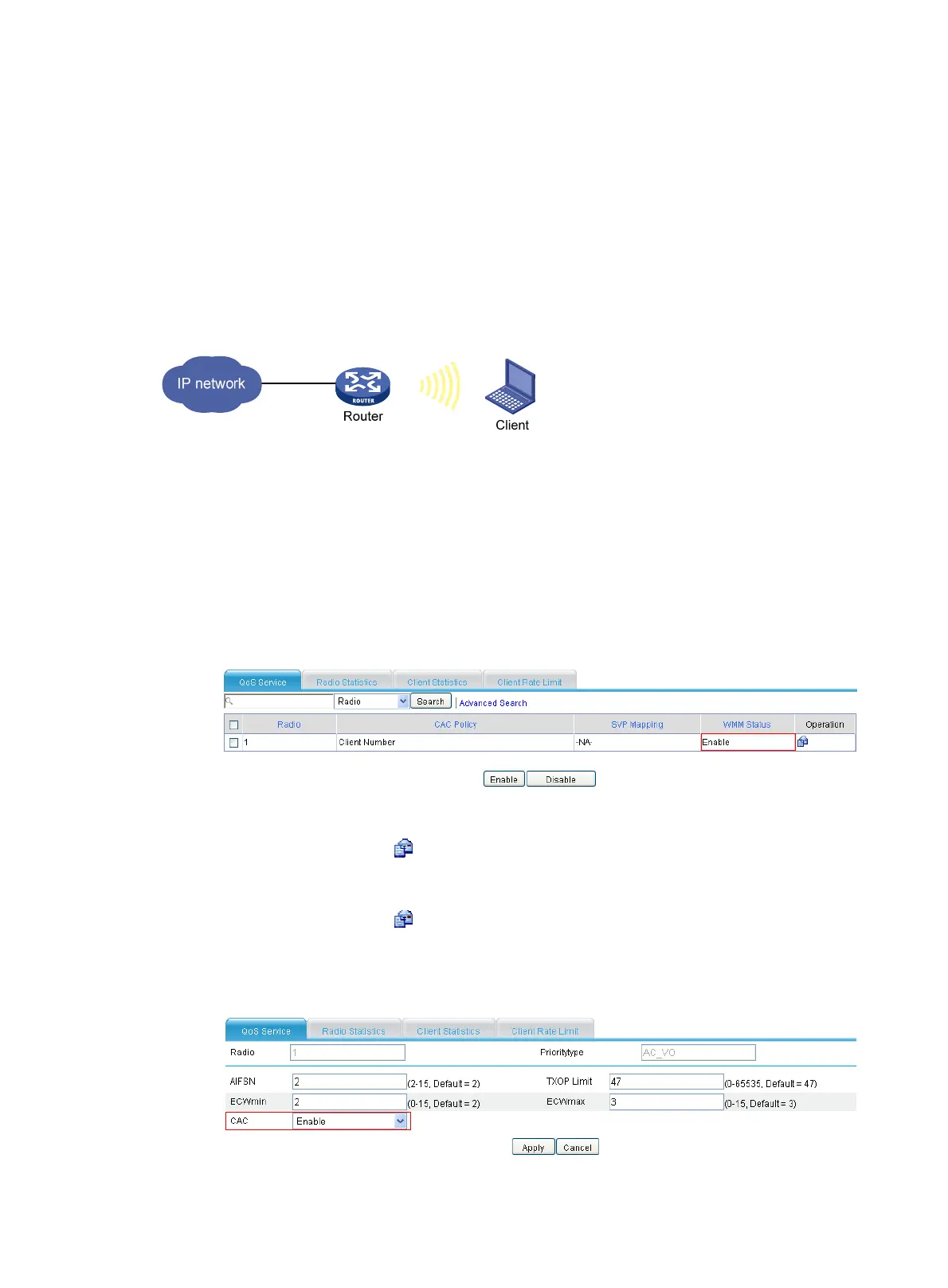

Figure 122 Network diagram
Configuration procedure
1. Configure the access service:
For related configurations, see "Wireless access service configuration examples." You can
st
rictly follow the steps in the related configuration example to configure the wireless service.
2. Configure wireless QoS:
a. Select Interface Setup > Wireless > Wireless QoS from the navigation tree.
b. Click the QoS Service tab. Make sure WMM is enabled.
Figure 123 Enabling wireless QoS
c. Select the radio unit to be configured in the list.
d. Click the corresponding icon in the Operation column.
e. In the Client EDCA list, select the priority type (AC_VO is taken for example here) to be
modified.
f. Click the corresponding icon in the Operation column.
g. Select Enable from the CAC list.
h. Click Apply.
Figure 124 Enabling CAC
