HPE FlexNetwork MSR Series - Enabling L2 TP; Adding an L2 TP Group

13
Enabling L2TP
1. Select VPN > L2TP > L2TP Config from the navigation tree to enter the L2TP configuration
page, as shown in Figure 366.
2. On the upp
er
part of the page, select the box before Enable L2TP.
3. Click Apply.

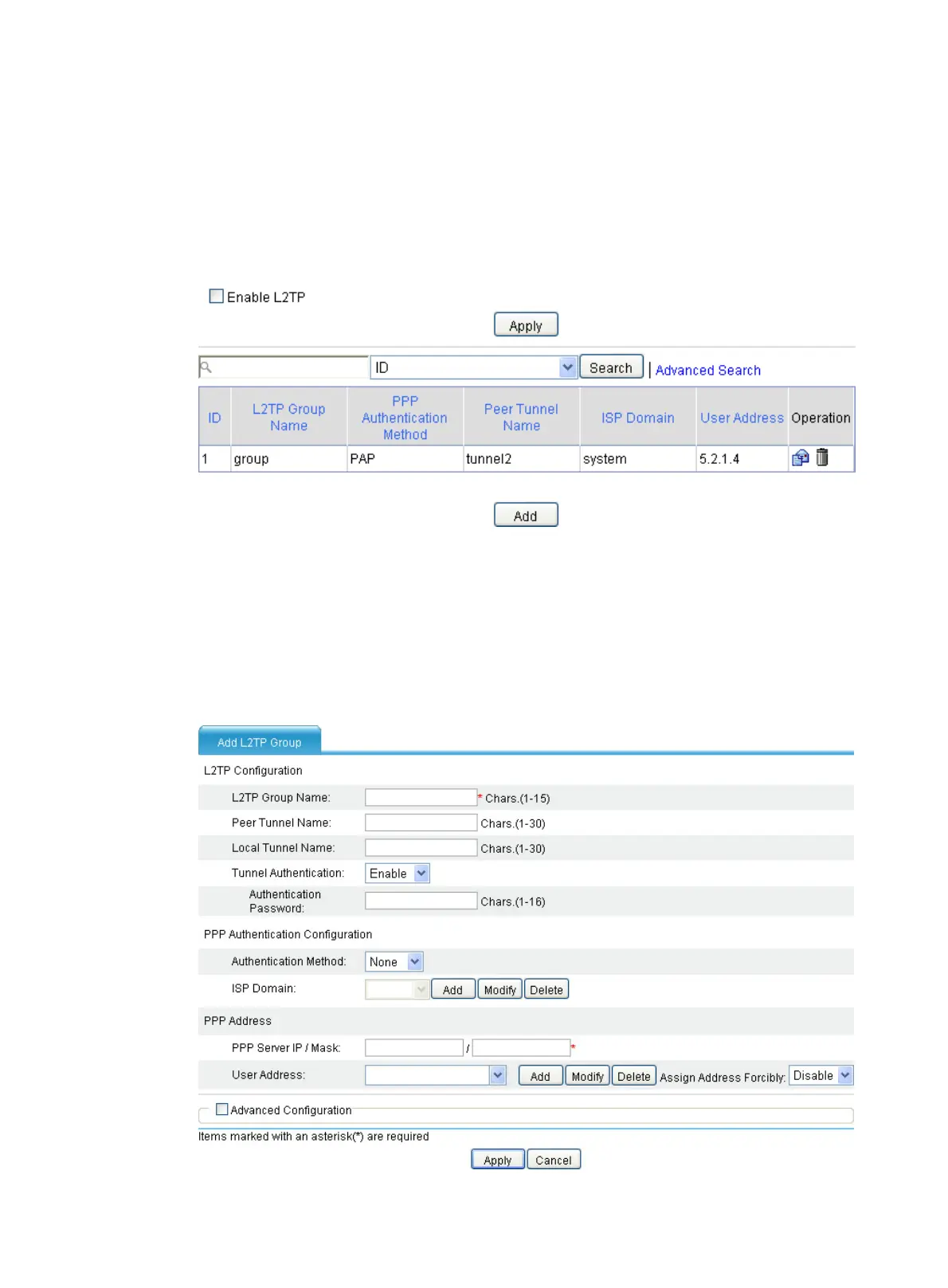

Figure 366 L2TP configuration page
Adding an L2TP group
1. Select VPN > L2TP > L2TP Config from the navigation tree to enter the L2TP configuration
page, as shown in Figure 366.
2. On the lower
part of the pa
ge, click Add to add an L2TP group.
Figure 367 Adding an L2TP group
