95
3. Add an account:
a. Click the User tab.
b. Select User > All Access Users from the navigation tree.
c. Click Add.
d. On the page that appears, enter username user, set the account name user and password
dot1x, select the service dot1x, and click OK.

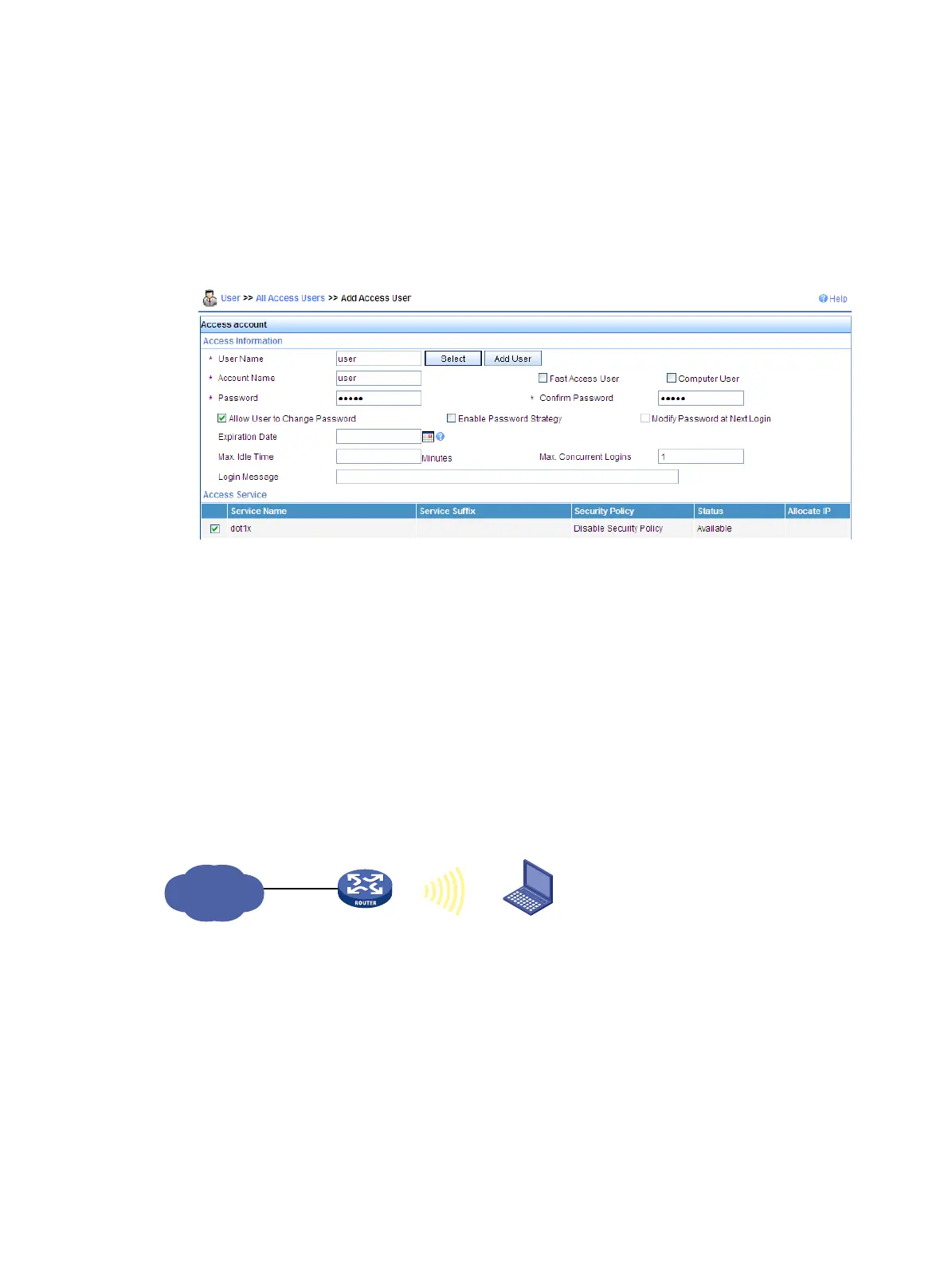

Figure 86 Adding an account
Verifying the configuration
• After you enter username user and password dot1x in the popup dialog box, the client can
associate with the device and access the WLAN.
• You can view the online clients by selecting Interface Setup > Wireless > Summary from the
navigation tree, and then clicking the Client tab.
802.11n configuration example
Network requirements
As shown in Figure 87, configure the 802.11n-capable AP to allow the 802.11n client to access the
wireless network at a high rate.
Figure 87 Network diagram
Configuration procedure
1. Configure a wireless service:
a. Select Interface Setup > Wireless > Access Service from the navigation tree.
b. Click Add.
c. On the page that appears, select the radio unit 1, set the service name to 11nservice,
select the wireless service type clear, and click Apply.
IP network
Client
Router
SSID：11nservice
