HPE FlexNetwork MSR Series User Manual

81

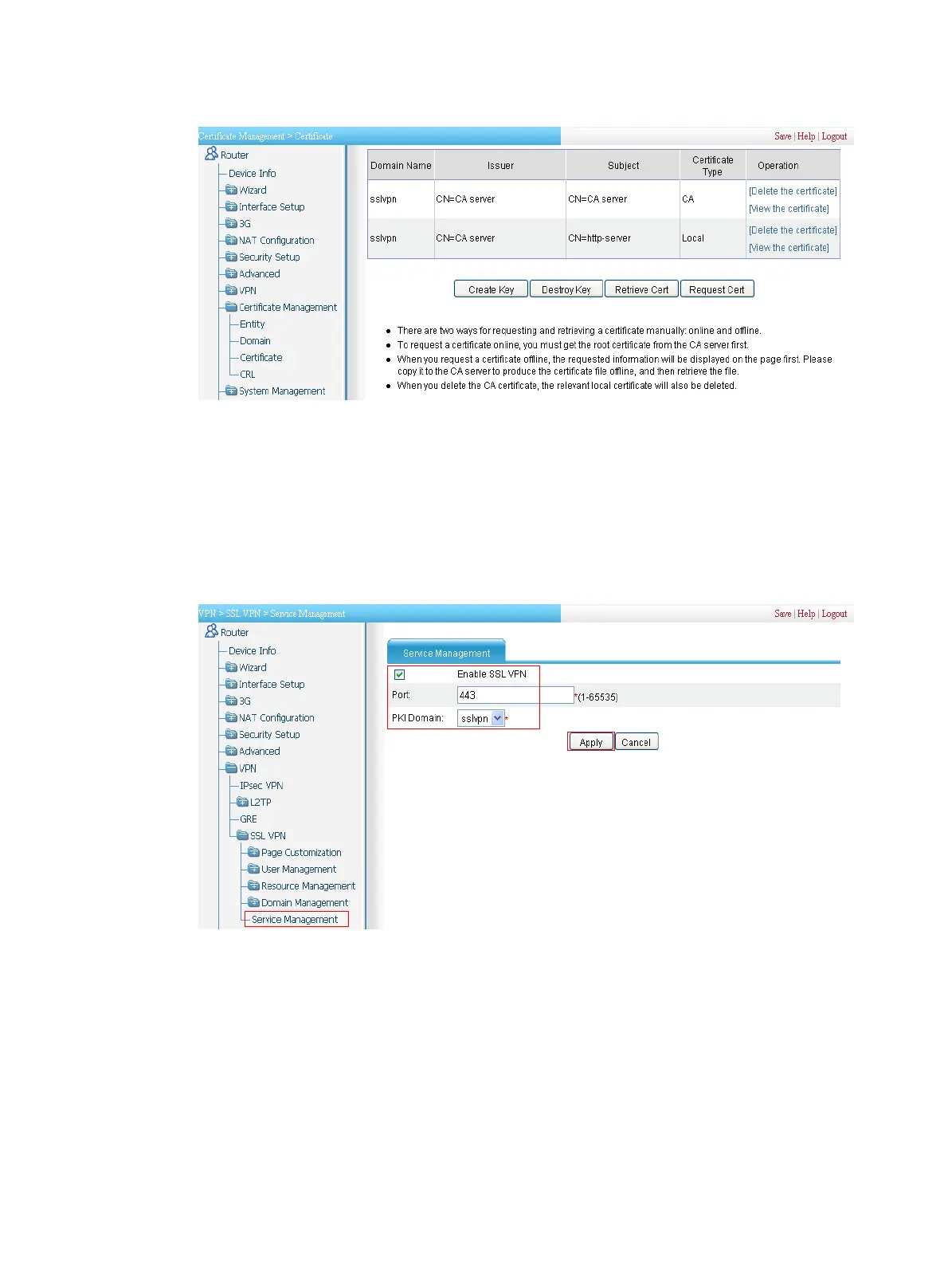

Figure 451 Certificate management page
6. Enable SSL VPN, and configure a port and a PKI domain for the SSL VPN service:
a. Select VPN > SSL VPN > Service Management from the navigation tree.
b. Select the box before Enable SSL VPN.
c. Set the port number to 443.
d. Select sslvpn as the PKI domain.
e. Click Apply.
Figure 452 SSL VPN service management page
Configuring SSL VPN resources
1. Configure a Web proxy resource named tech for the internal technology website 10.153.1.223:
a. Select VPN > SSL VPN > Resource Management > Web Proxy from the navigation tree.
b. Click Add.
The Web proxy server resource configuration page appears, as shown in Figure 453.
c. Enter the re
source na
me tech.
d. Enter the website address http://10.153.1.223/.
e. Click Apply.
