HPE FlexNetwork MSR Series User Manual

82

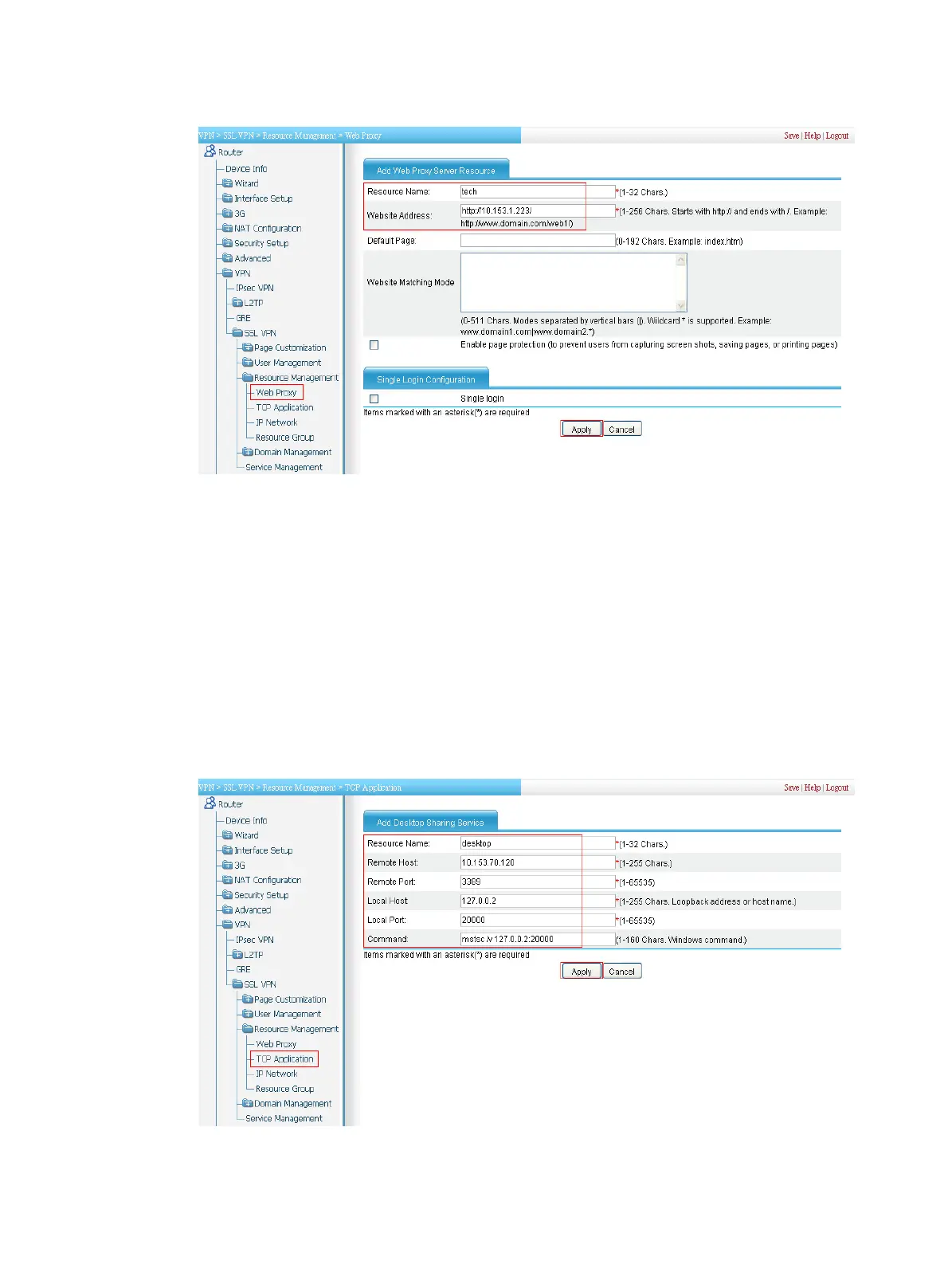

Figure 453 Configuring a Web proxy resource
2. Configure a resource named desktop for the desktop sharing service provided by host
10.153.70.120:
a. Select VPN > SSL VPN > Resource Management > TCP Application from the navigation
tree.
b. Click the Desktop Sharing Service tab.
c. Click Add.
The desktop sharing service configuration page appears, as shown in Figure 454.
d. Enter the re
source na
me desktop, enter the remote host address 10.153.70.120, set the
remote port for the server to 3389, enter the local host address 127.0.0.2, set the local port
for the service to 20000, and enter the command line mstsc /v 127.0.0.2:20000.
e. Click Apply.
Figure 454 Configuring a desktop sharing service resource
3. Configure global parameters for IP network resources:
