83
a. Select VPN > SSL VPN > Resource Management > IP Network from the navigation tree.
The Global Configuration tab appears, as shown in Figure 455.
b. Enter the star
t IP address 192.168.0.1.
c. Enter the end IP address 192.168.0.100.
d. Enter the subnet mask 24.
e. Enter the gateway IP address 192.168.0.101.
f. Click Apply.

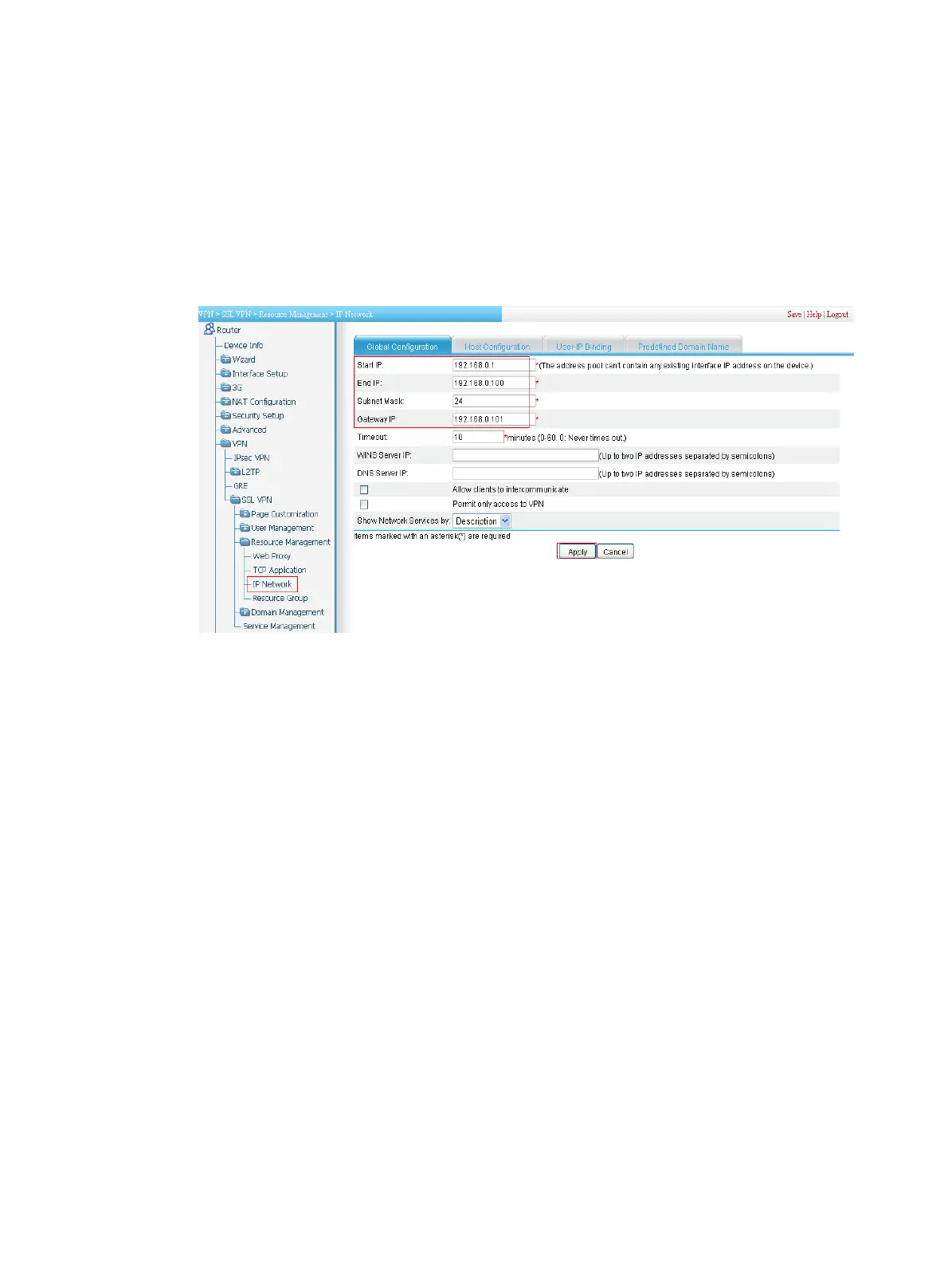

Figure 455 Configuring global parameters for IP network resources
4. Configure a host resource named sec_srv for hosts in subnet 10.153.2.0/24 in IP network
mode:
a. Select VPN > SSL VPN > Resource Management > IP Network from the navigation tree.
b. Click the Host Configuration tab.
c. Click Add to enter the host resource configuration page.
d. Enter the resource name sec_srv.
e. Click the Add button under the Network Services list.
f. On the page that appears, as shown in Figure 456, e
n
ter the destination IP address
10.153.2.0, enter the subnet mask 24, select IP as the protocol type, specify the description
information as 10.153.2.0/24, and click Apply.
The network service is added to the host resource.
g. Click the Add button under the Shortcuts list.
h. On the page that appears, as shown in Figure 457, e
n
ter the shortcut name
ftp_security-server and the shortcut command ftp 10.153.2.25, and click Apply.
The shortcut is added to the host resource. Now, the host resource configuration page is as
shown Figure 458.
i.
Click Ap
ply.
