HPE FlexNetwork MSR Series User Manual

264

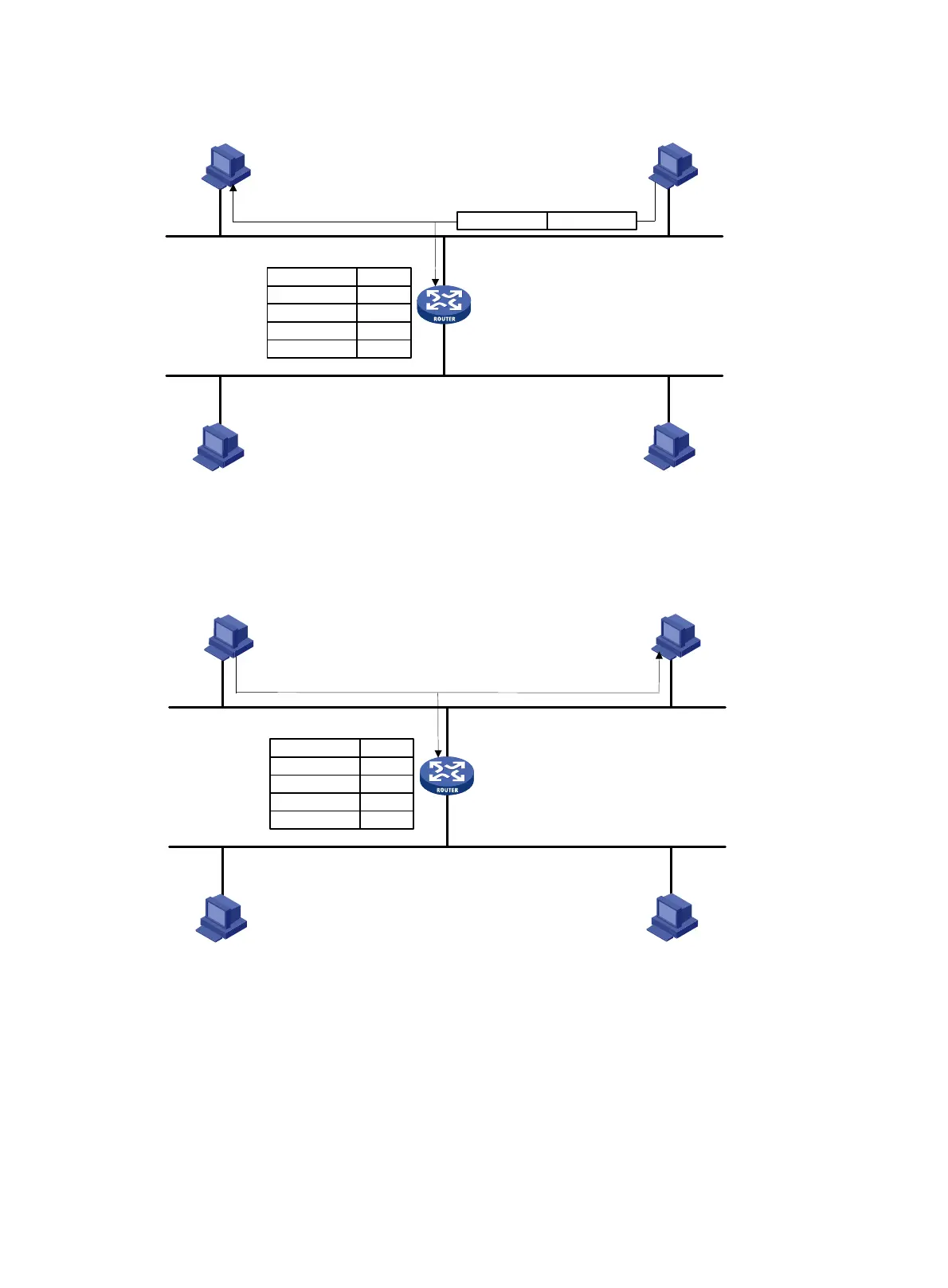

Figure 284 The bridge determines that Host B is also attached to interface 1
Finally, the bridge obtains all the MAC-interface mappings (assume that all hosts are in use), as
shown in Figure 285.
Figure 285
The final bri
dge table
Forwarding and filtering
The bridge makes data forwarding or filtering decisions based on the following scenarios:
• When Host A sends an Ethernet frame to Host C, the bridge searches its bridge table and finds
out that Host C is attached to bridging interface 2, and forwards the Ethernet frame out of
bridging interface 2, as shown in Figure 286.
Host A
Host B
Host C Host D
LAN segment 2
LAN segment 1
Bridge
Bridge interface 1
Bridge interface 2
00e0.fcbb. bbbb 00e0.fcaa.aaaa
Source address Destination address
00e 0.fcbb.bbbb 1
00e 0.fcaa.aaaa 1
MAC address Interface
Bridge table
MAC address: 00e0.fcaa.aaaa
MAC address: 00e0.fccc.cccc
MAC address: 00e0.fcdd.dddd
MAC address: 00e0.fcbb.bbbb
MAC address: 00e0.fccc.cccc
Host A
Host B
Host C Host D
LAN segment 2
LAN segment 1
Bridge interface 1
00e0.fcbb.bbbb 1
00e0.fccc.cccc 2
00e0.fcaa.aaaa 1
00e0.fcdd.dddd 2
MAC address Interface
Bridge table
MAC address: 00e0.fcaa.aaaa
MAC address: 00e0.fcdd.dddd
MAC address: 00e0.fcbb.bbbb
Bridge interface 2
Bridge
