141

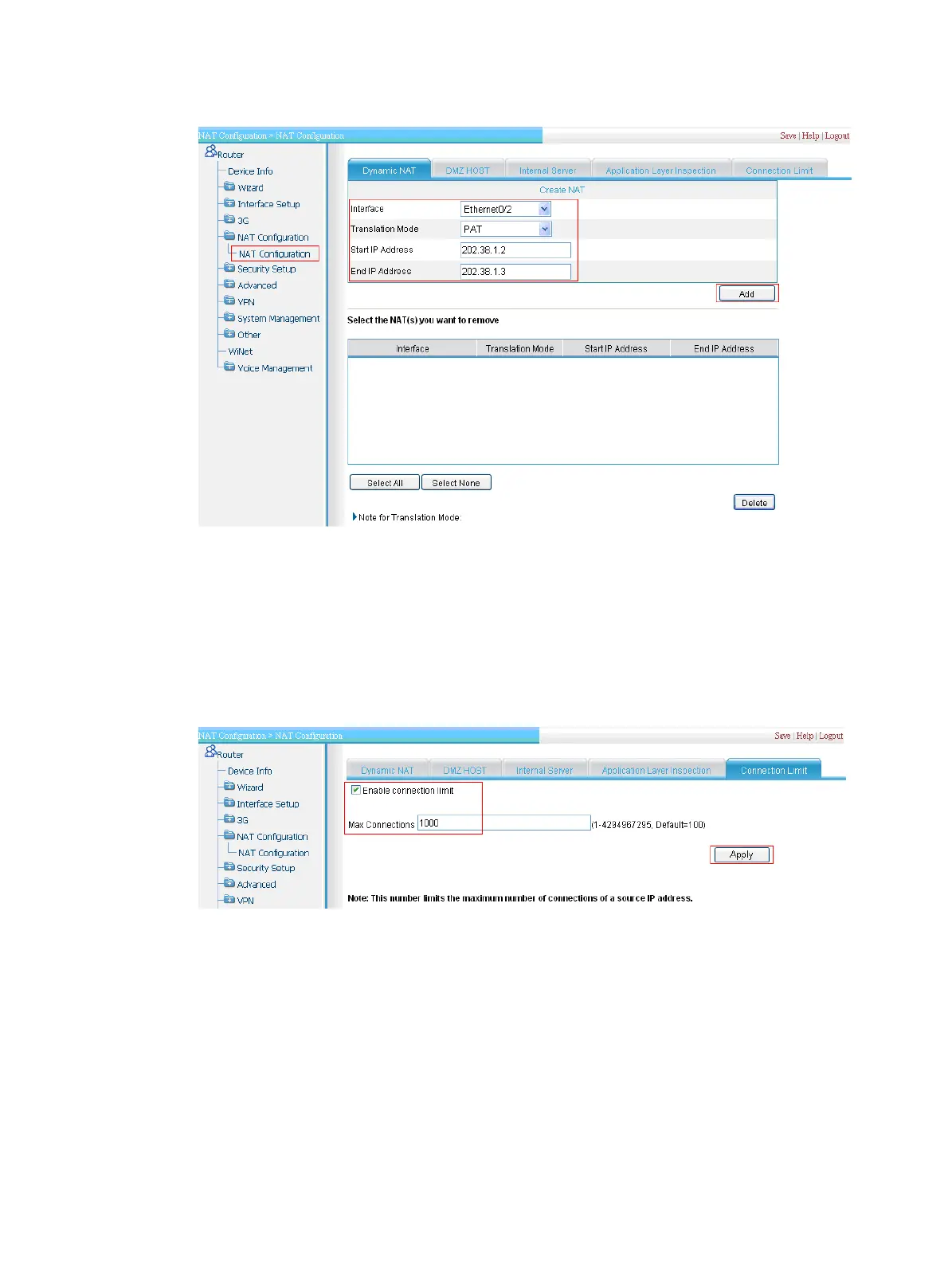

Figure 148 Configuring dynamic NAT
3. Configure the connection limit:
a. Click the Connection Limit tab to enter the connection limit configuration page, as shown
in Figure 149.
b. Selec
t
Enable connection limit.
c. Enter 1000 in Max Connections.
d. Click Apply.
Figure 149 Configuring connection limit
Internal server configuration example
Network requirements
A company provides one FTP server and two Web servers for external users to access. The internal
network address is 10.110.0.0/16. The company has three public IP addresses in the range of
202.38.1.1/24 to 202.38.1.3/24. Specifically, the company has the following requirements:
• External hosts can access the company internal servers.
• 202.38.1.1 is used as the public IP address for the internal servers and port number 8080 is
used for Web server 2.
